6.8.2.2 Wiring of digital outputs
Overview
S200 PN o󹪜ers two digital outputs, DO0 and DO1, and S200 Basic PN o󹪜ers only DO0. The digital
outputs support both NPN and PNP types of wiring.
Requirement
CAUTION
Damage to property due to overload of digital outputs
If digital outputs are o
verloaded, this can result in damage due to 󹪝re, device defects, or
malfunctions.
• Ensure that the digital outputs are not loaded in excess of 100mA.
• Install a 100 mA fuse for connection to the digital output.

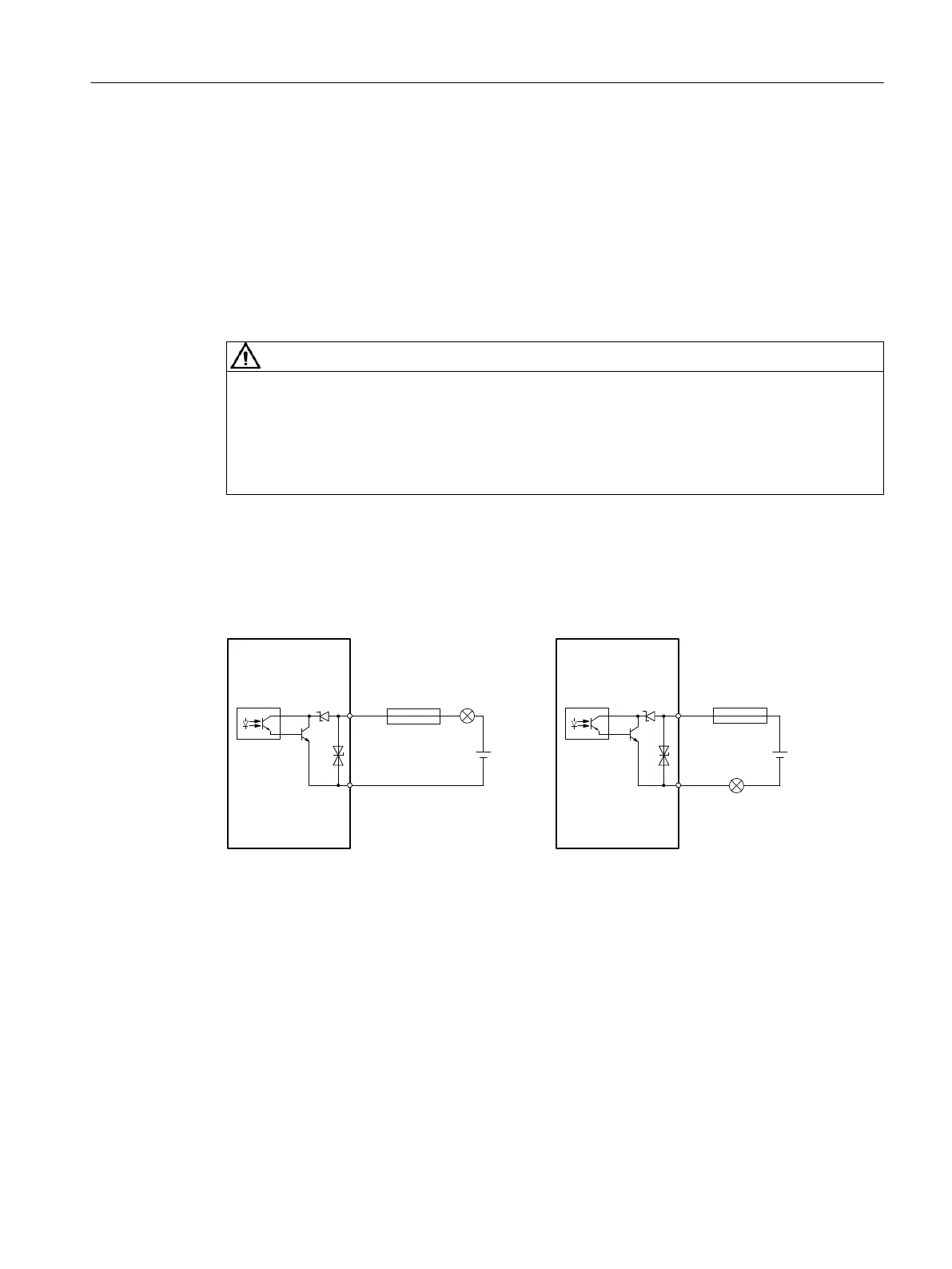

Connection example
You can connect the digit
al outputs as shown below:
&RQYHUWHU
/RDG
)XVH
'2
9
'2


P$
NPN wiring
&RQYHUWHU
/RDG
)XVH
'2
9
'2


P$
PNP wiring
More information
For mor
e information about the technical data of digital outputs, see Section "General technical
data (Page610)".
6.8.2.3 Wiring of pulse train outputs
Overview
S200 PN supports high-speed 5 V di󹪜erential signals (A+/A-, B+/B-, Z+/Z-).
Connecting
6.8Connecting the inputs and outputs
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 155
