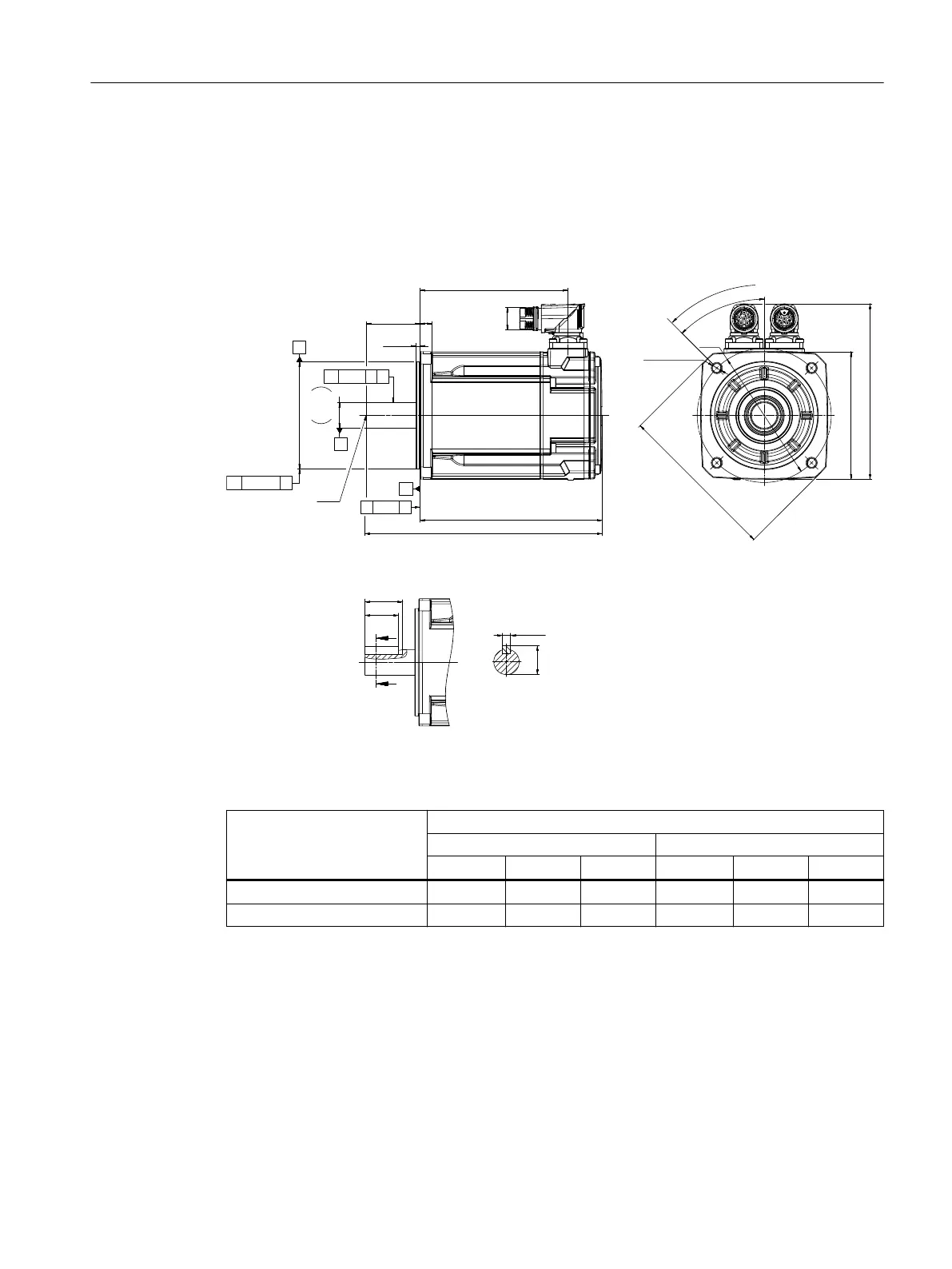

5.2.6.5 Dimension drawing for the 1FL2 motor, shaft height 48
Dimension drawing
All dimensions are speci󹪝ed in millimeters.
١
١
ࡳ


[ۅ



 
ۅ



 


$
&%


ۅ
Ý
[Ý Ý



%
&
ۅK
$
ু
$
'
,1'50

//
/%/%
/'/'


0
ۅ
<<
<
<
① With feather key
Table 5-10 Dimensions, 1FL2205
SIMOTICS S-1FL2
Shaft height 48
Mot
or length
Without brake With brake
L LB LD L1 LB1 LD1
1FL2205-2 175.9 135.9 110.5 218.9 178.9 153.5
1FL2205-4 207.9 167.9 142.5 250.9 210.9 185.5
Mounting
5.2Motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 115
