10.3 Fieldbus communication
10.3.1 Communication via PROFINET IO
Ov
erview
You can integrate the converter into a PROFINET network.
Description of function
3&6XSHUYLVRU6,0$7,&6
&RQWUROOHU
6,1$0,&66
SURGXFWOLQH
'HYLFH
352),1(7

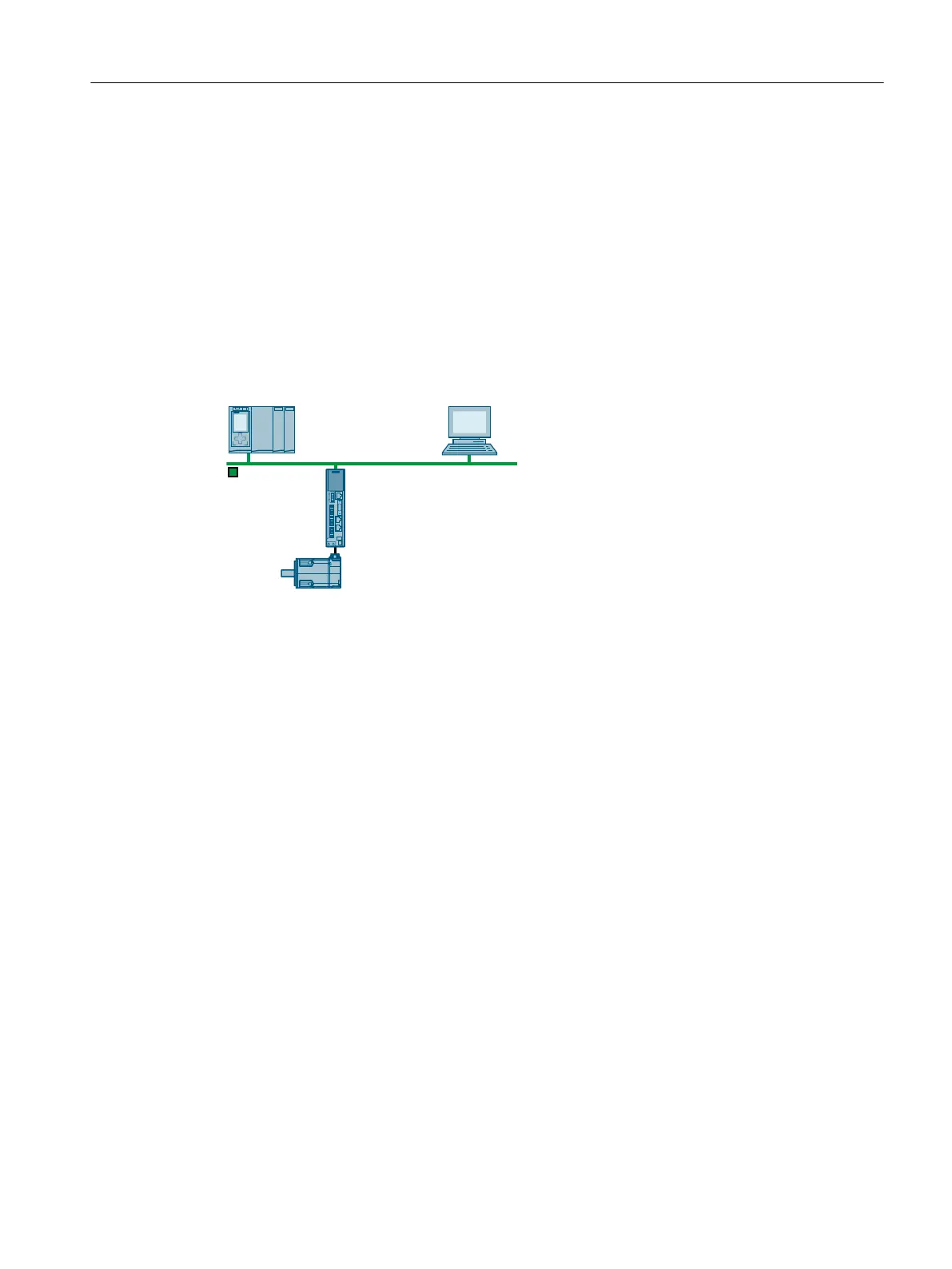

Figure10-1 The converter in PROFINET IO operation (examples)
The converter supports the following functions:
• RT (Real-T
ime)
• IRT (Isochronous Real-Time)
• MRP (Media Redundancy Protocol): Media redundancy, with transition bump.
• MRPD (Media Redundancy Planned Duplication): Media redundancy, bumpless.
• Diagnostic alarms in accordance with the error classes specied in the PROFIdrive prole.
• Device replacement without removable data storage medium: The replacement converter is
assigned the device name from the IO controller, not from its SD card or from the
programming device.
10.3.2 Conguring PROFINET IO operation
10.3.2.1 Connecting the PROFINET cable to the converter
Requirement
You have set up a PROFINET network for connecting the converter.
Functions
10.3Fieldbus communication
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 325
