3.2.2.1 Rating plate
Description
The rating plate contains the article number and the technical data of the motor.
1 Article number 15 Rated current I
N
2 Cooling method according to EN 60034-6 16 Weight
3 Motor ID 17 Maximum speed n
max
4 Certications 18 Rated speed n
N
5 Manufacturer's address 19 Rated power P
N
6 Serial number 20 Rated voltage U
N
7 Encoder type and resolution 21 QR code
8 Holding brake 22 Note on disposal
9 Thermal class 23 Country of origin
10 Rated torque M
N
24 UK importer address
11 Static torque M
0
25 Function release/version
12 Stall current I
0
26 Standard for all rotating electrical ma‐
c
hines
13 Mo
tor operating mode 27 Motor type
14 Degree of protection

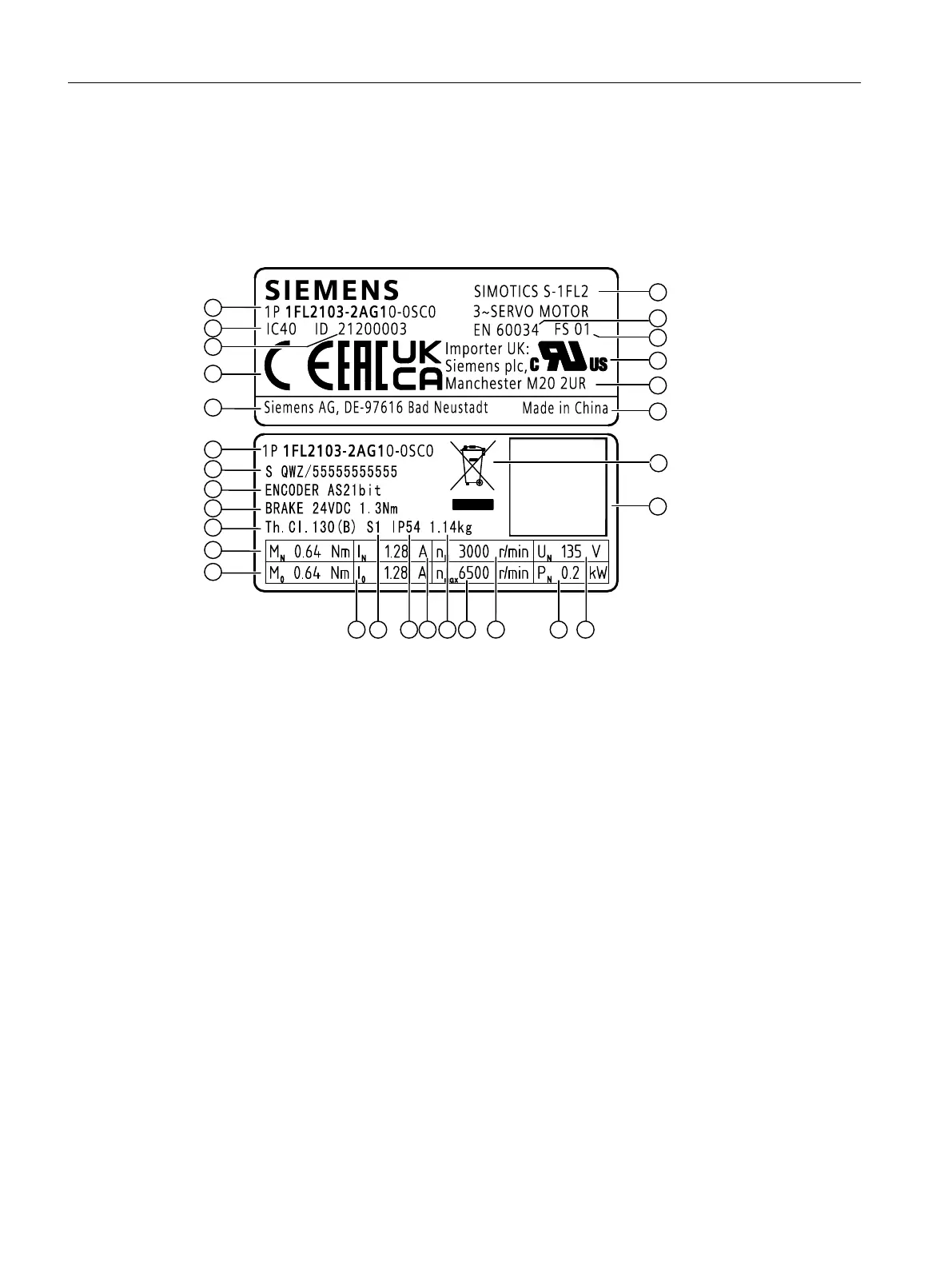

Figure3-7 Rating plate example for 1FL2 SH20 and SH30
Description
3.2Scope of delivery
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
50 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
