6.5 Connecting the motor
6.5.1 Routing cables in dam
p environments
Description
To operate the motor in a damp environment, follow the installation instructions below:
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16

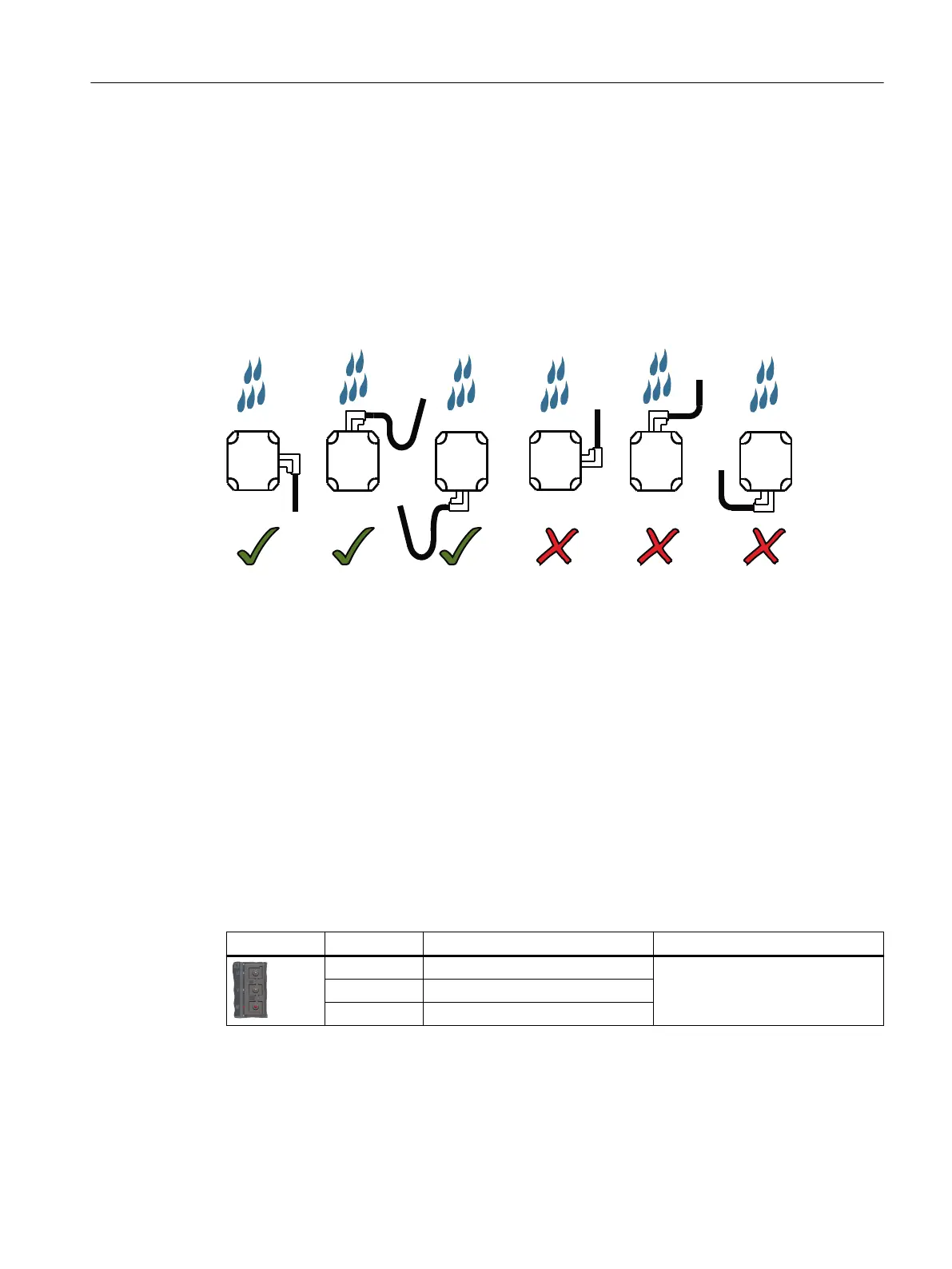

Figure6-5 Routing cables in damp environments
6.5.2 Connecting the motor power
6.5.2.1 Inter
face description - X2 (converter side)
Overview
The converter connects to the motor on the interface X2.
Description
Table 6-4 Interface X2
X2 Terminal Designation Technical data
8
9
:
U Motor phase U Maximum current limit: 20 A
V Motor phase V
W Motor phase W
Connecting
6.5Connecting the motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 135
