CRANKSHAFT OIL SEALS
REPLACEMENT
EG0FH–01
HINT: There are two methods (A and B) to replace the oil seal
which are as follows:

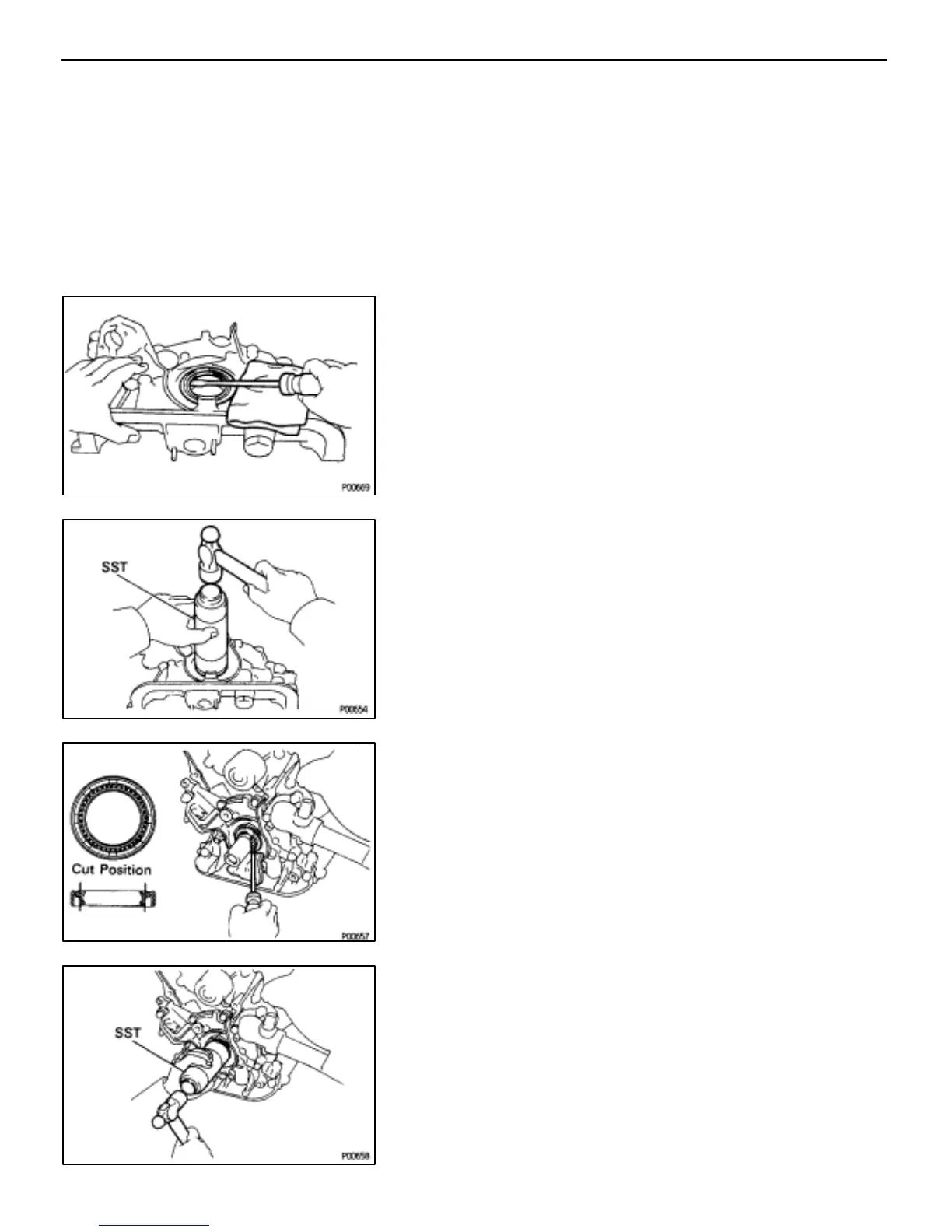

1. REPLACE CRANKSHAFT FRONT OIL SEAL
A. If oil pump is removed from cylinder block:
(a) Using a screwdriver, pry out the oil seal.
(b) Using SST and a hammer, tap in a new oil seal until its surface
is flush with the oil pump case edge.
SST 09309–37010
(c) Apply MP grease to the oil seal lip.
B. If oil pump is installed to the cylinder block:
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft.
Tape the screwdriver tip.
(c) Apply MP grease to a new oil seal lip.
(d) Using SST and a hammer, tap in the oil seal until its surface
is flush with the oil pump case edge.
SST 09309–37010
EG–118
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
