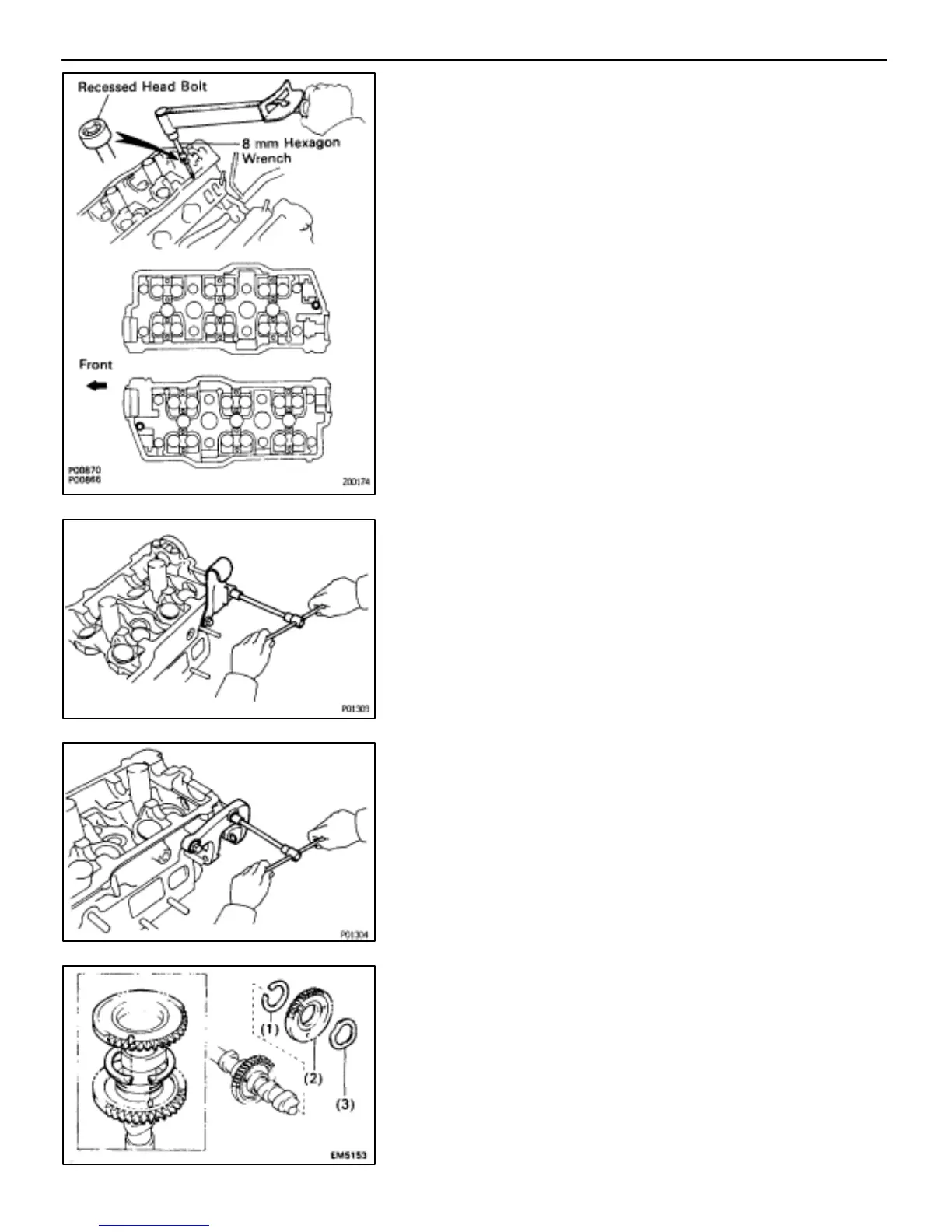

C. Install cylinder head (recessed head) bolts
(a) Apply a light coat of engine oil on the threads and under the
heads of the cylinder head bolts.
(b) Using a 8 mm hexagon wrench, install the cylinder head
bolts.
Torque: 18 N⋅m (185 kgf⋅cm, 13 ft⋅lbf)
2. INSTALL LH ENGINE HANGER
Install the LH engine hanger with the two bolts.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
3. INSTALL PS PUMP BRACKET
Install the PS pump bracket with the three bolts.
Torque: 43 N⋅m (440 kgf⋅cm, 32 ft⋅lbf)
4. ASSEMBLY EXHAUST CAMSHAFTS
(a) Install the following parts:
(1) Camshaft gear spring
(2) Camshaft sub–gear
(3) Wave washer
EG–74
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
