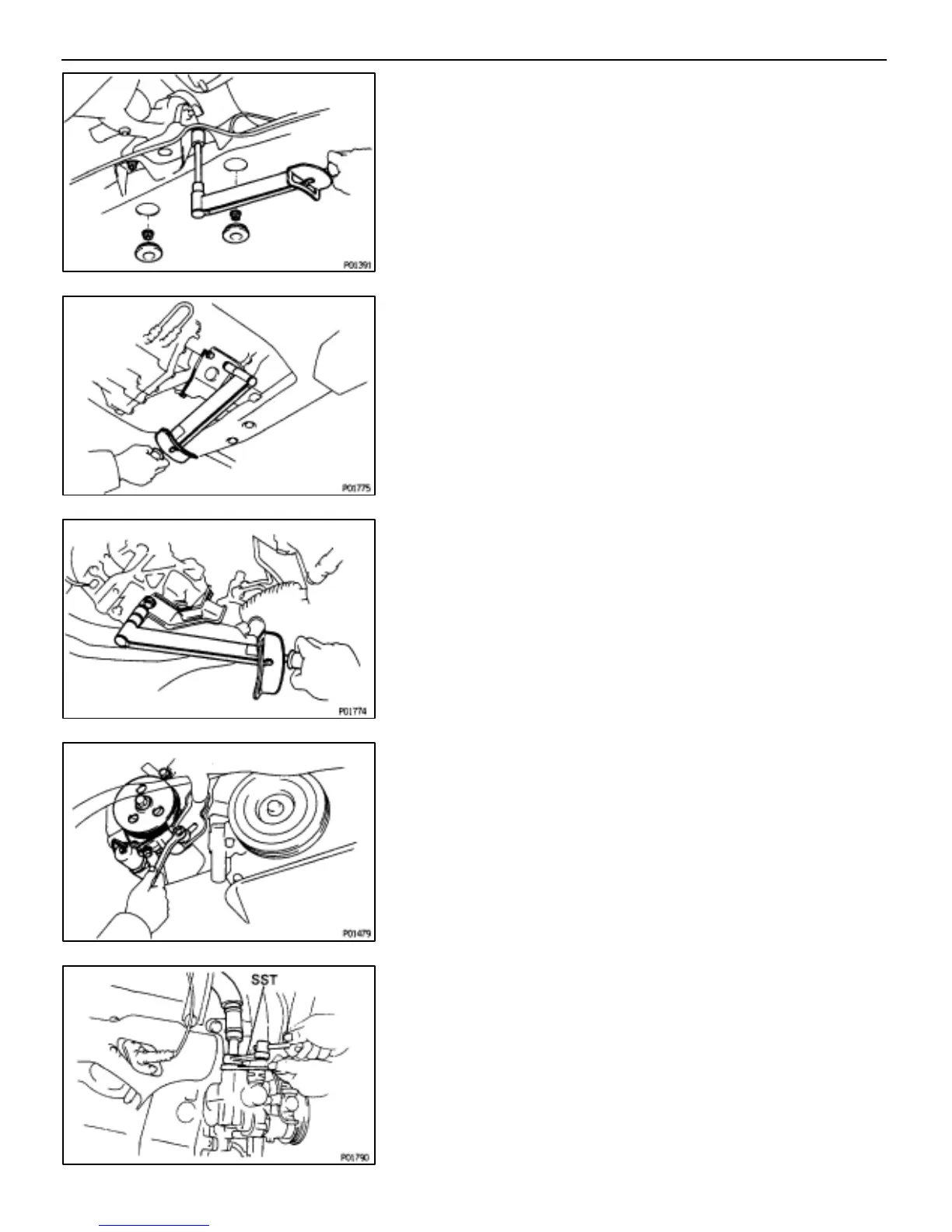

9. CONNECT RR ENGINE MOUNTING INSULATOR
(a) Connect the mounting insulator with the four nuts.
Torque: 66 N⋅m (670 kgf⋅cm, 48 ft⋅lbf)
(b) Install the hole plugs.
10. CONNECT LH ENGINE MOUNTING INSULATOR
(M/T)
Connect the mounting insulator with the three bolts.
Torque: 64 N⋅m (650 kgf⋅cm, 47 ft⋅lbf)
(A/T)
Connect the mounting insulator with the four bolts.
Torque: 64 N⋅m (650 kgf⋅cm, 47 ft⋅lbf)
11. REMOVE ENGINE SLING DEVICE
12. INSTALL PS PUMP
(a) Install the PS pump with the two bolts.
Torque: 43 N⋅m (440 kgf⋅cm, 31 ft⋅lbf)
(b) Install the drive belt.
13. INSTALL DRIVE SHAFTS (See SA section)
14. CONNECT HYDRAULIC COOLING FAN PRESSURE
HOSE
Using SST, connect the pressure hose.
SST 09631–22020
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–131
