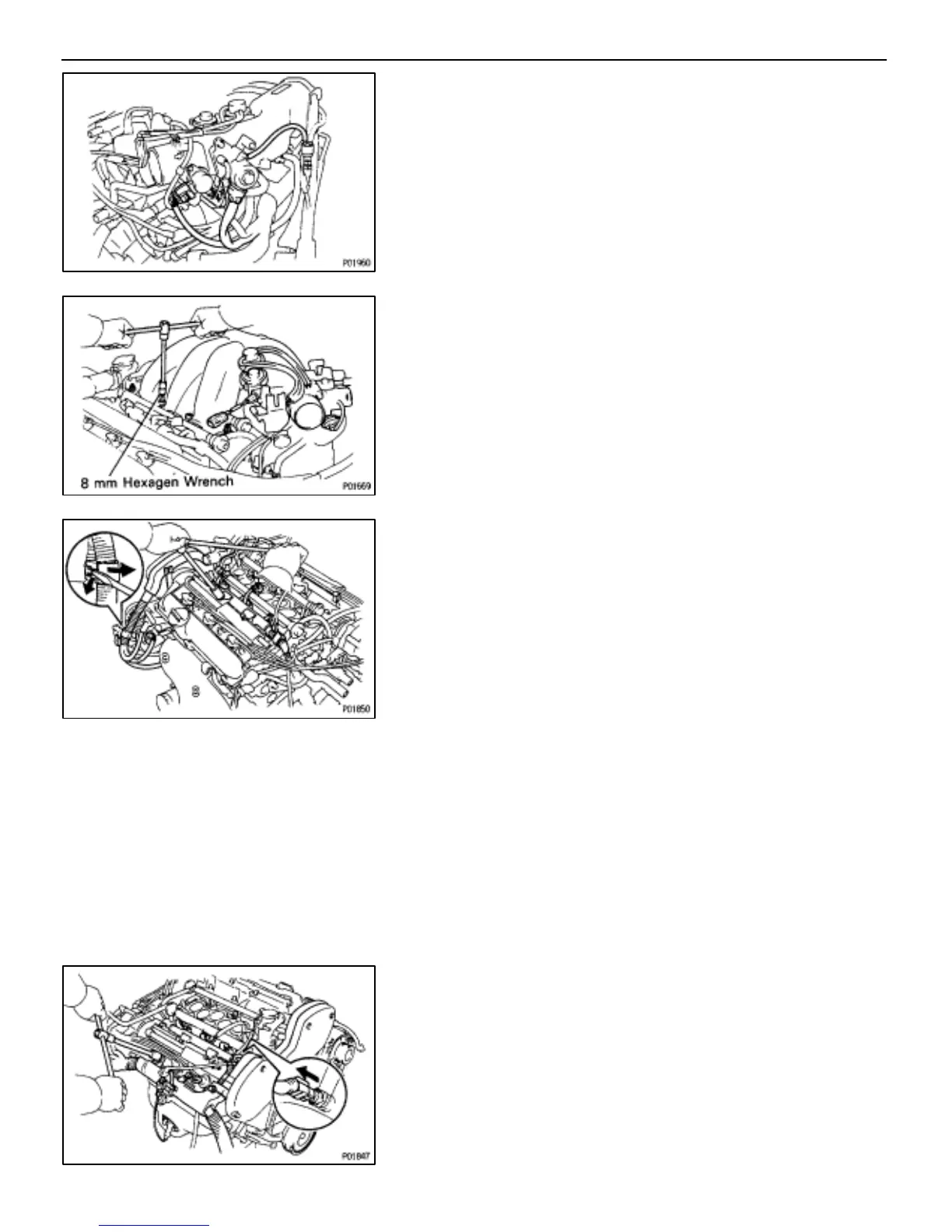

(d) Disconnect the throttle position sensor connector.
(e) Disconnect the IAC valve connector.
(f) Disconnect the IAC valve air hose.
(g) Disconnect the PS air hose.
(h) Using 8 mm hexagon wrench, remove the two bolts, nuts air
intake chamber and gasket.
16. DISCONNECT LH ENGINE WIRE HARNESS
(a) Disconnect the following connectors:
(1) Three injector connectors
(2) Engine oil level sensor connector
(3) Oil pressure switch connector
(4) A/C compressor connector
(5) Generator connector and wire
(6) Engine Coolant temp.sensor connector (for hydraulic
cooling fan)
(b) Remove the two bolts, and disconnect the five clamps and LH
engine wire harness.
17. DISCONNECT RH ENGINE WIRE HARNESS
(a) Disconnect the following connectors:
(1) Three injector connectors
(2) Engine coolant temperature sender gauge connector
(3) Oxygen sensor connector
(4) PS pump connector
(b) Remove the two bolts, and disconnect the two clamps and
RH engine wire harness.
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–15
