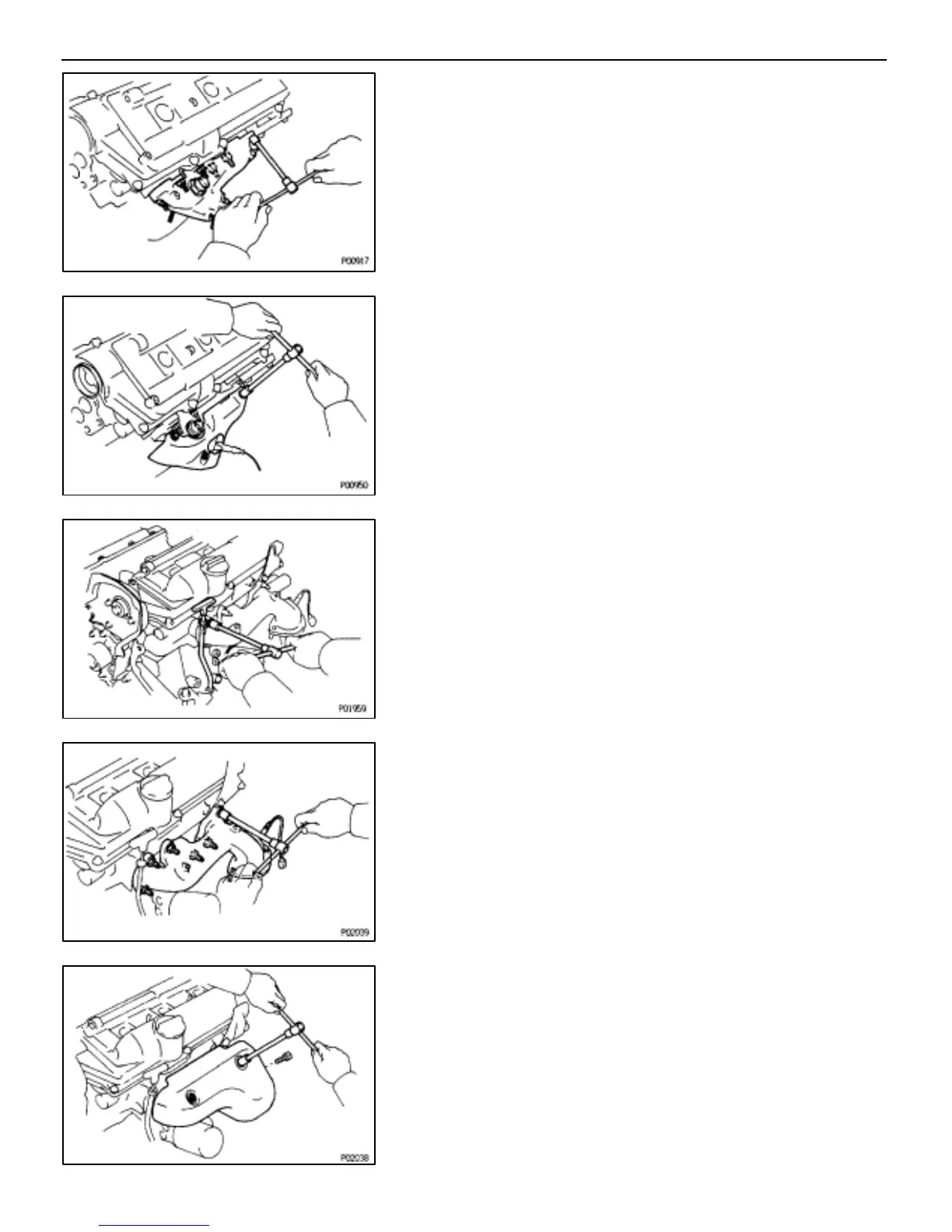

12. INSTALL RH EXHAUST MANIFOLD
(a) Install a new gasket and the exhaust manifold with new six
nuts. Uniformly tighten the nuts in several passes.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
(b) Install the heat insulator with the three nuts.
13. INSTALL OIL DIPSTICK
Install the oil dipstick with the bolt.
14. INSTALL LH EXHAUST MANIFOLD
(a) Install a new gasket and the exhaust manifold with six new
nuts. Uniformly tighten the nuts in several passes.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
(b) Install the heat insulator with the bolt and two nuts.
EG–80
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
