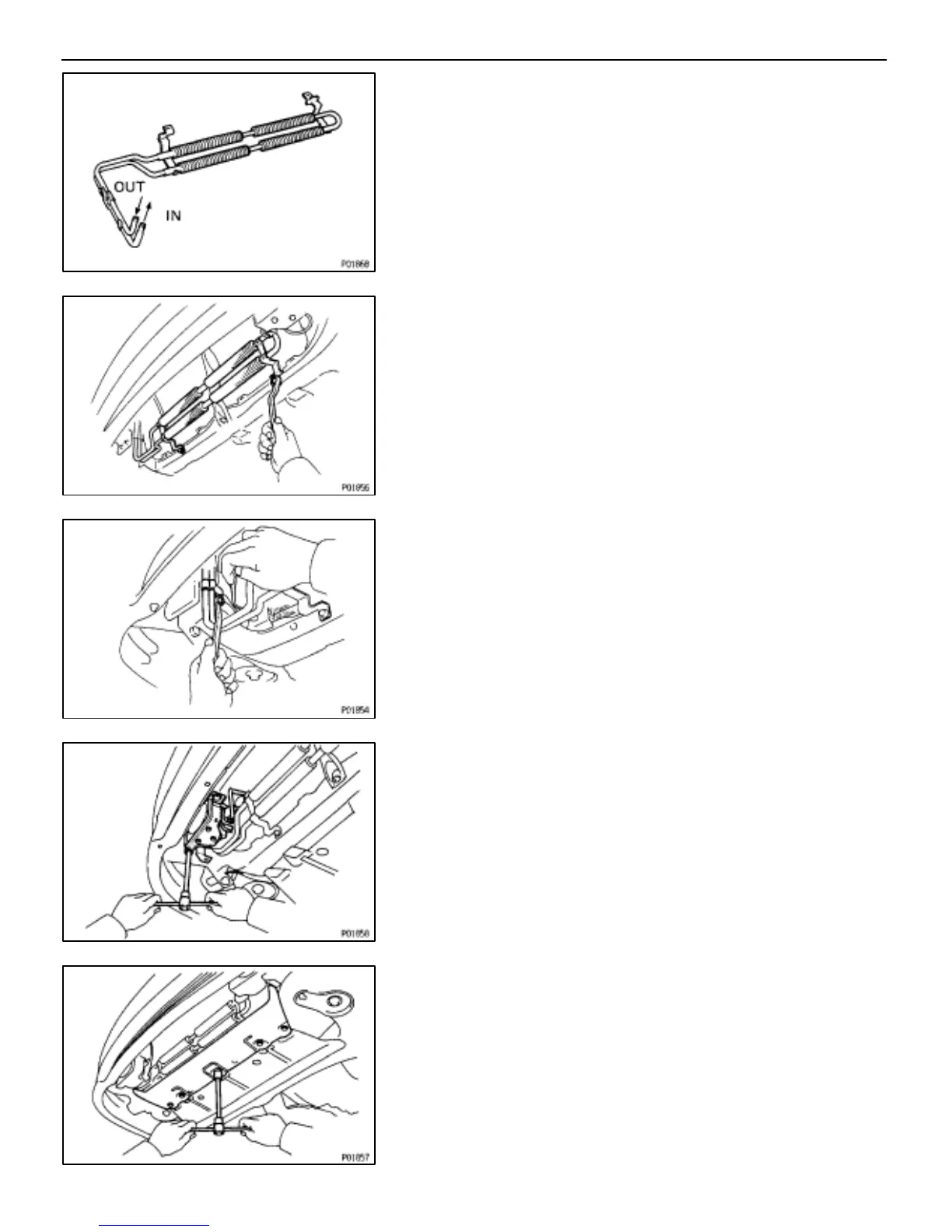

OIL COOLER INSPECTION
EG0AM–02
INSPECT OIL COOLER
Check the oil cooler for damage or clogging.
If necessary, replace the oil cooler.
OIL COOLER INSTALLATION
EG0AN–02
(See page EG–277)
1. INSTALL OIL COOLER
(a) Install the oil cooler with the two nuts.
Torque: 7.8 N⋅m (80 kgf⋅cm, 69 in⋅lbf)
(b) Install the bolt while pulling aside the shroud.
2. INSTALL RH FOG LAMP ASSEMBLY
(a) Connect the connector.
(b) Install the fog lamp assembly with the two bolts.
3. INSTALL UNDER COVER
Install the under cover with the five bolts
–ENGINE TROUBLESHOOTING COOLING SYSTEM
EG–279
