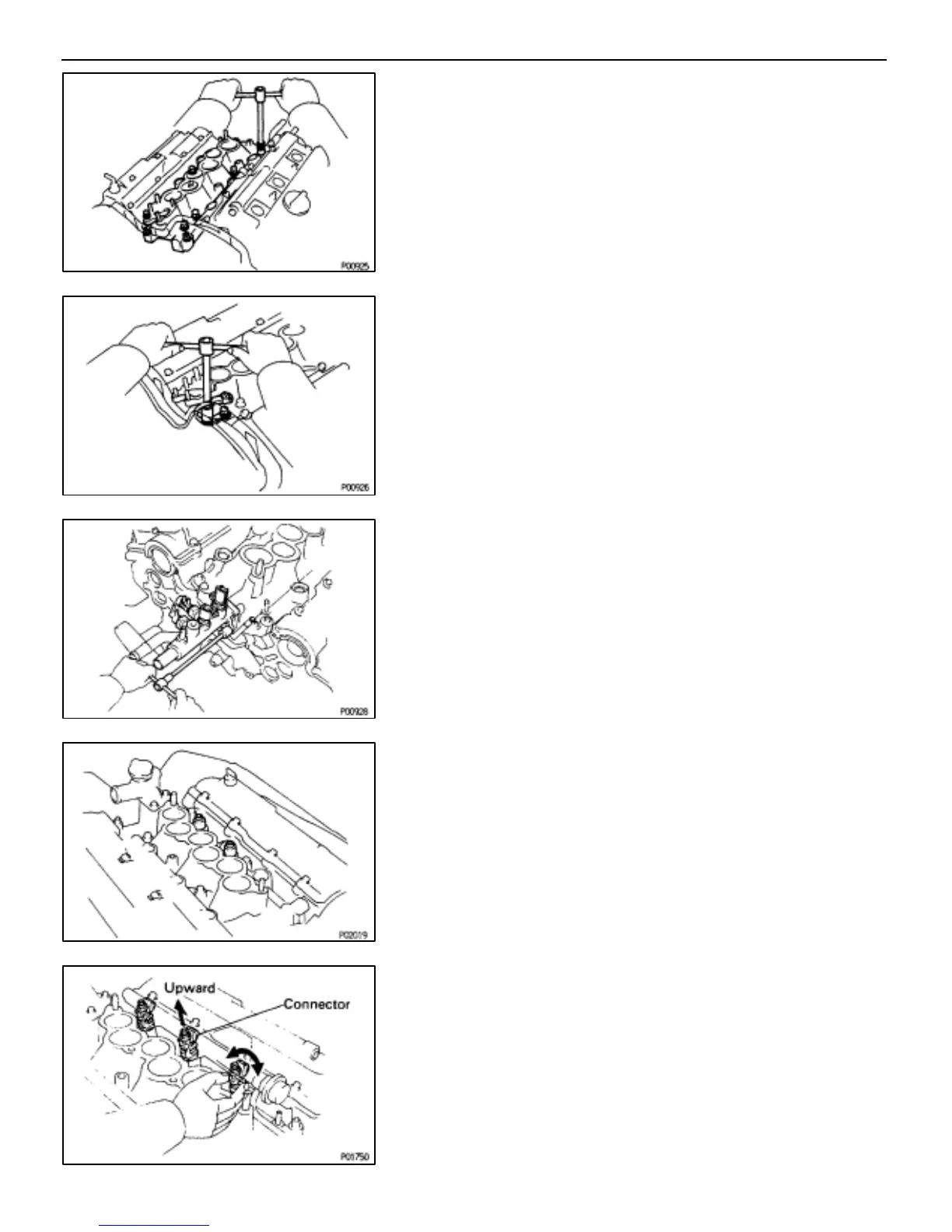

15. INSTALL INTAKE MANIFOLD
(a) Install two new gaskets and the intake manifold with the eight
bolts and four nuts. Uniformly tighten the bolts and nuts in
several passes.
Torque: 18 N⋅m (180 kgf⋅cm, 13 ft⋅lbf)
(b) Install the No.2 idler pulley bracket stay and ground strap with
the two bolts.
Torque: 18 N⋅m (185 kgf⋅cm, 13 ft⋅lbf)
16. INSTALL WATER BY–PASS OUTLET
Install a new gasket and the water by–pass outlet with the two
nuts.
Torque: 8.3 N⋅m (85 kgf⋅cm, 74 in.⋅lbf)
17. INSTALL RH DELIVERY PIPE AND INJECTORS
(a) Place the two spacers in position on the intake manifold.
NOTICE: Clean the injector holes before installing the in-
jectors into the intake manifold.
(b) Place the three injectors together with the RH delivery pipe
and No.1 fuel pipe in position on the intake manifold.
(c) Check that the injectors rotate smoothly.
HINT: If injectors do not rotate smoothly, the probable cause
is incorrect installation of O–rings. Replace the O–rings.
(d) Position the injector connector upward.
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–81
