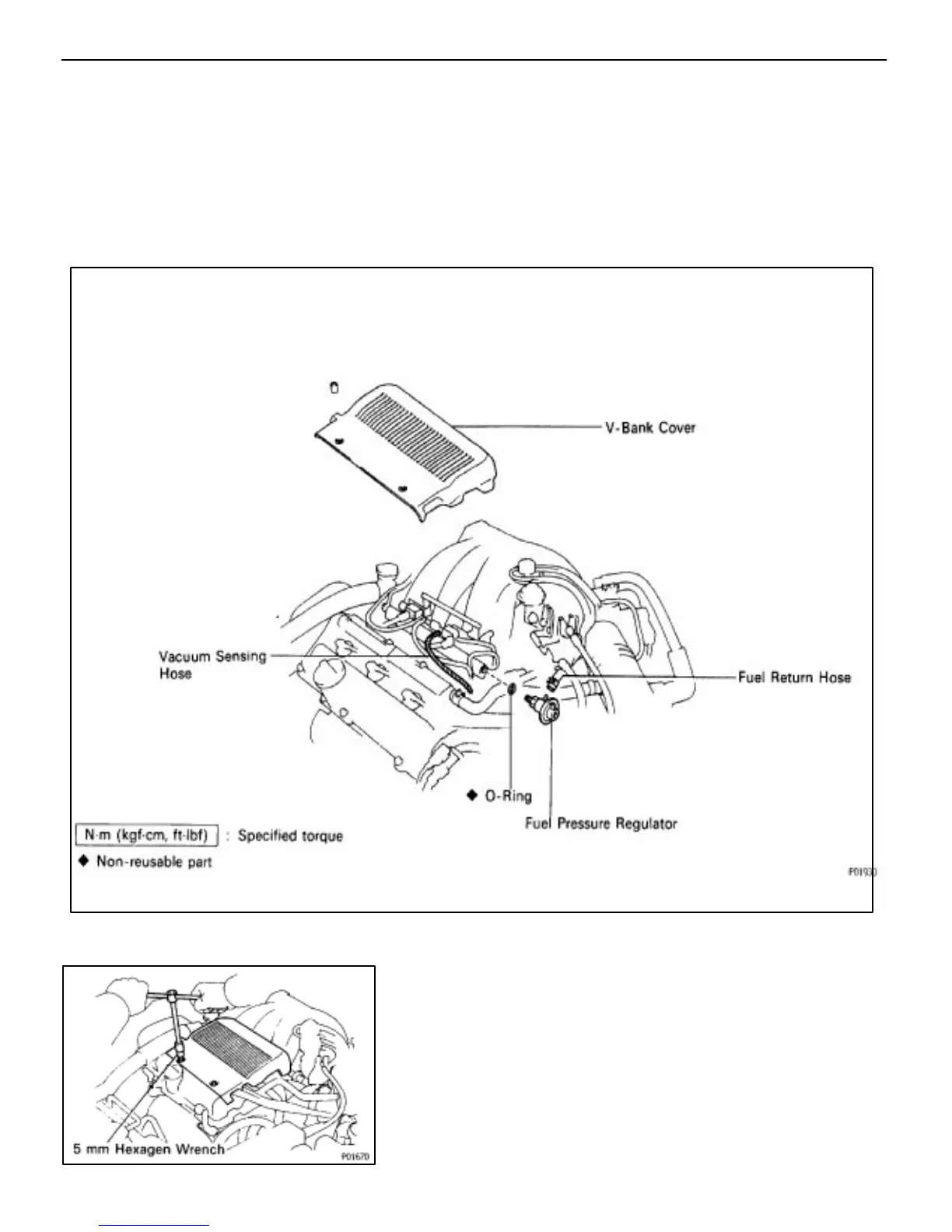

FUEL PRESSURE REGULATOR

ON–VEHICLE INSPECTION

EG0GQ–01

INSPECT FUEL PRESSURE (See page EG–171)

FUEL PRESSURE REGULATOR

REMOVAL

EG0GR–01

1. REMOVE V–BANK COVER

Using a 5 mm hexagon wrench, remove the two nuts and V–

bank cover.

–ENGINE TROUBLESHOOTING SFI SYSTEM

EG–183
