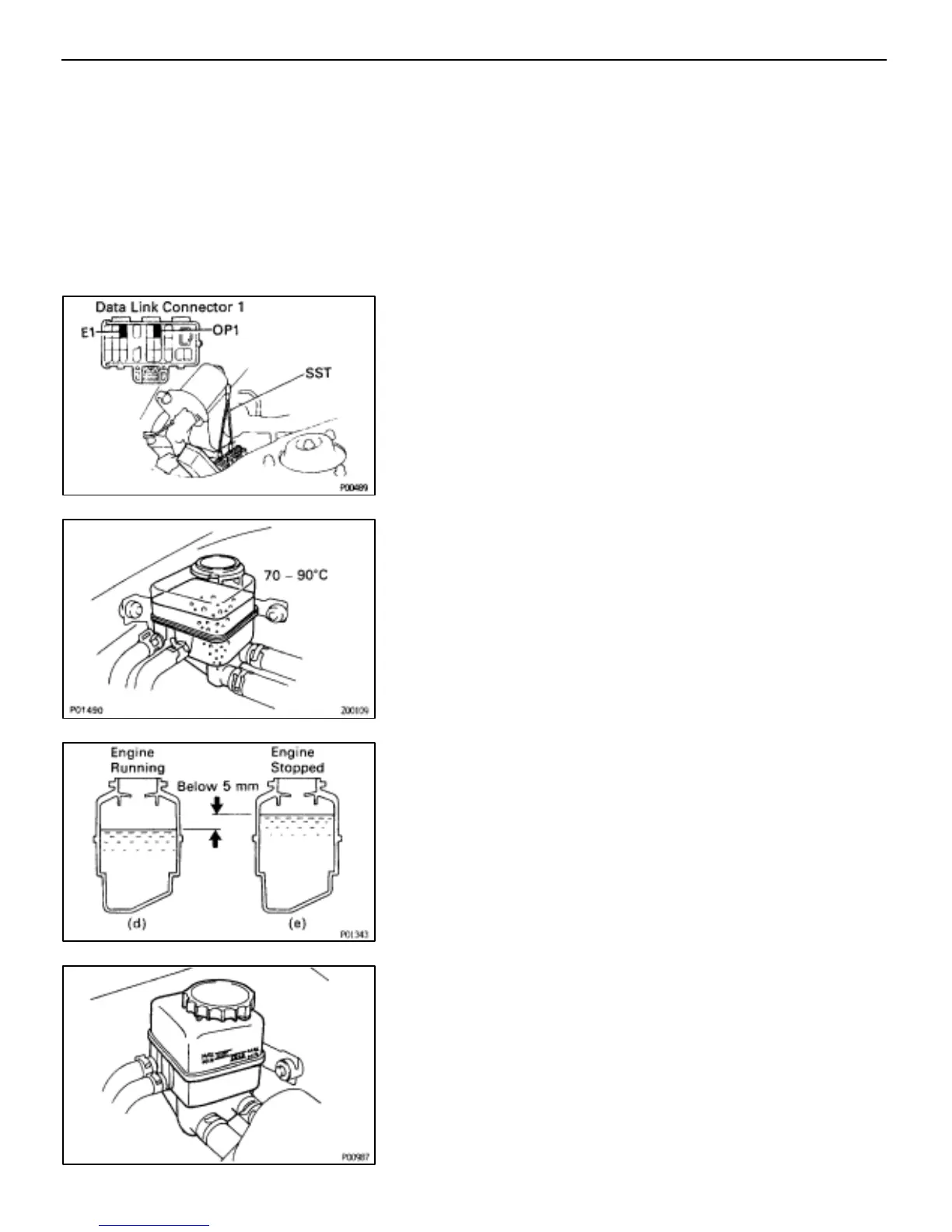

ON–VEHICLE INSPECTION
FLUID LEVEL INSPECTION
EG0A9–01
1. KEEP VEHICLE LEVEL
2. INSPECT FLUID LEVEL
(a) Using SST, connect terminals OP1 and E1 of the data link
connector 1.
SST 09843–18020
(b) Keep the engine speed at 2,000 rpm until the fluid
temperature reaches the specified temperature.
Fluid temperature:
70–90°C (158–195°F)
(c) Check that there is no foaming and emulsification of the fluid
in the reservoir tank.
(d) Measure the fluid level with the engine running.
(e) Stop the engine, and measure the fluid level.
(f) Subtract (d) from (e).
Maximum stroke:
5 mm (0.20 in.)
(g) Check the fluid level.
If low, add fluid.
Fluid:
ATF DEXRON II
HINT: Check that fluid level is within the ”HOT” level on reser-
voir tank. If the fluid is cold, check that it is within the ”COLD”
level on the tank.
(h) Remove the SST from the data link connector 1.
SST 09843–19020
EG–264
–ENGINE TROUBLESHOOTING COOLING SYSTEM
