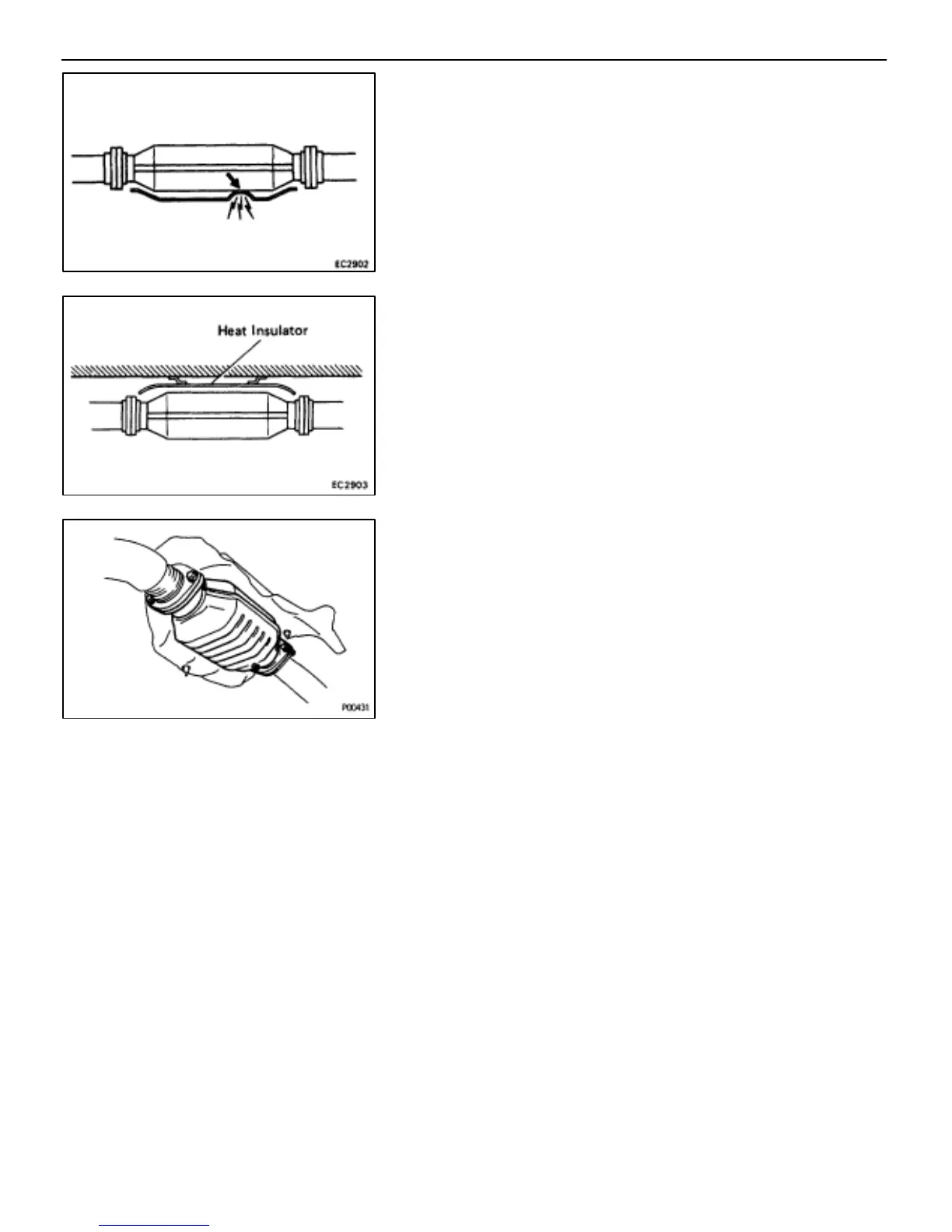

THREE–WAY CATALYTIC CONVERTER
INSPECTION
EG08W–01
CHECK FOR DENTS OR DAMAGE
If any part of protector is damaged or dented to the extent that
it contacts the three–way catalytic converter, repair or re-
place it.
HEAT INSULATOR INSPECTION
EG08X–01
1. CHECK HEAT INSULATOR FOR DAMAGE
2. CHECK FOR ADEQUATE CLEARANCE BETWEEN
THREE–WAY CATALYTIC CONVERTER AND HEAT
INSULATOR
THREE–WAY CATALYTIC CONVERTER
REPLACEMENT
EG08Y–01
1. REMOVE THREE–WAY CATALYTIC CONVERTER
(a) Jack up the vehicle.
(b) Check that the three–way catalytic converter is cool.
(c) Remove the four bolts and nuts holding the pipes to the
three–way catalytic converter.
(d) Remove the three–way catalytic converter and two gaskets.
2. REINSTALL THREE–WAY CATALYTIC CONVERTER
(a) Place new two gaskets on the front and rear pipes.
(b) Install the three–way catalytic converter with the bolts and
nuts. Torque the bolts and nuts.
Torque: 43 N⋅m (440 kgf⋅cm, 32 ft⋅lbf)
EG–156
–ENGINE TROUBLESHOOTING EMISSION CONTROL SYSTEMS
