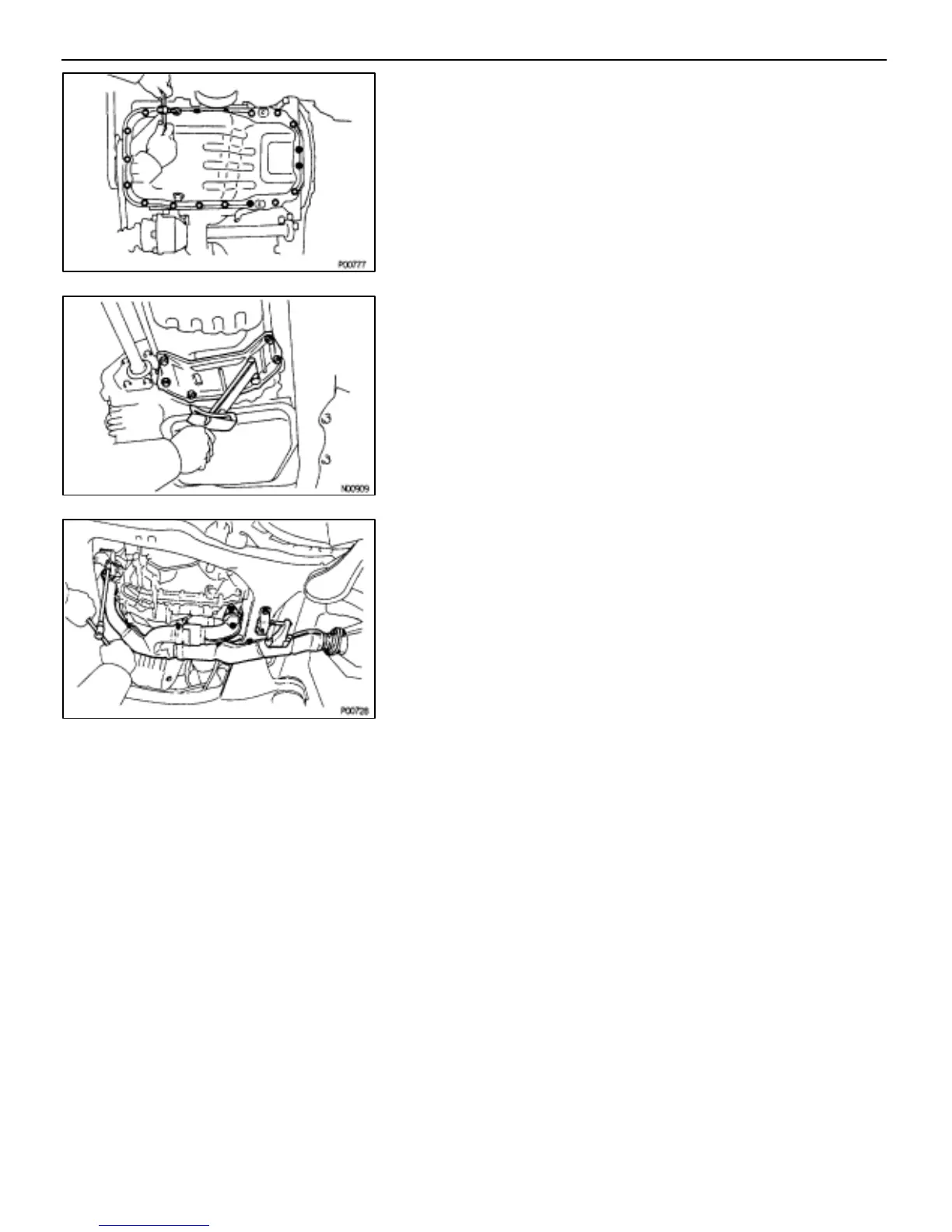

(c) Install the oil pan with the fifteen bolts and four nuts.
Torque: 5.5 N⋅m (75 kgf⋅cm, 65 in.⋅lbf)
(d) Install the dipstick.
16. INSTALL STIFFENER PLATE
(a) Install the dust seal to the stiffener plate.
(b) Install the stiffener plate with the six bolts.
12 mm head bolt
Torque: 18 N⋅m (185 kgf⋅cm, 13 ft⋅lbf)
14 mm head bolt
Torque: 37 N⋅m (380 kgf⋅cm, 27 ft⋅lbf)
17. CONNECT FRONT EXHAUST PIPE
(a) Place three new gaskets on the front pipe.
(b) Install the front pipe with the two bolts and six nuts.
Torque the nut.
To manifold
Torque: 62 N⋅m (630 kgf⋅cm, 46 ft⋅lbf)
To three–way catalytic converter
Torque: 43 N⋅m (440 kgf⋅cm, 32 ft⋅lbf)
(c) Connect the bracket with the two bolts.
18. FILL WITH ENGINE OIL
19. FILL WITH ENGINE OIL
20. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
21. START ENGINE AND CHECK FOR LEAKS
22. RECHECK ENGINE COOLANT AND ENGINE OIL LEVELS
23. INSTALL HOOD
EG–306
–ENGINE TROUBLESHOOTING LUBRICATION SYSTEM
