WATER PUMP

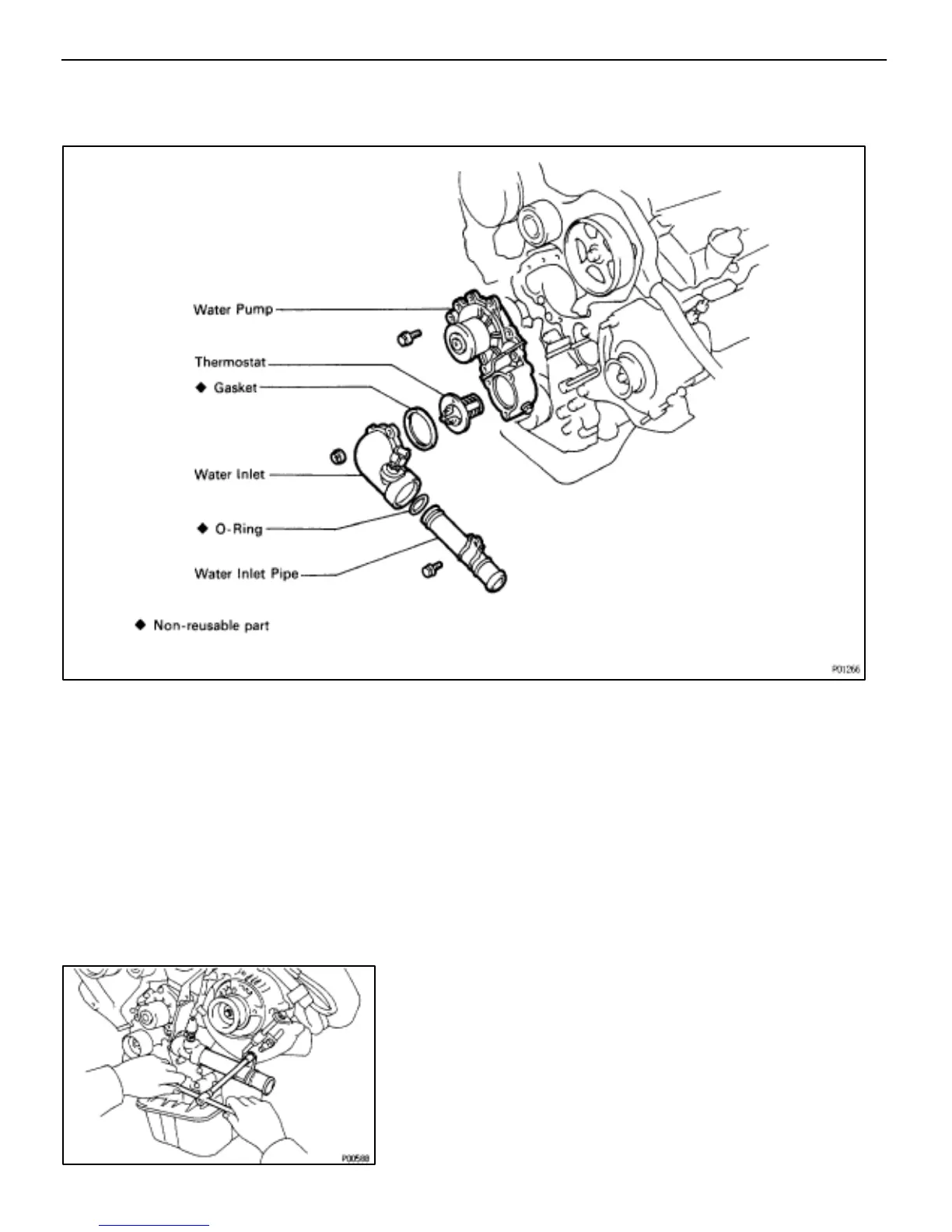

COMPONENTS
EG09T–01
WATER PUMP REMOVAL
EG09U–01
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
CAUTION (w / Airbag): Work must be started after
approx. 30 seconds or longer from the time the ignition
switch is turned to the ”LOCK” position and the negative
(–) terminal cable is disconnected from the battery.
2. DRAIN ENGINE COOLANT (See page EG–244)
3. DISCONNECT RADIATOR LOWER HOSE FROM WATER
INLET PIPE
4. REMOVE TIMING BELT (See page EG–29)
5. REMOVE WATER INLET PIPE
(a) Remove the bolt holding the water inlet pipe to the generator
belt adjusting bar.
(b) Remove the water inlet pipe and O–ring.
