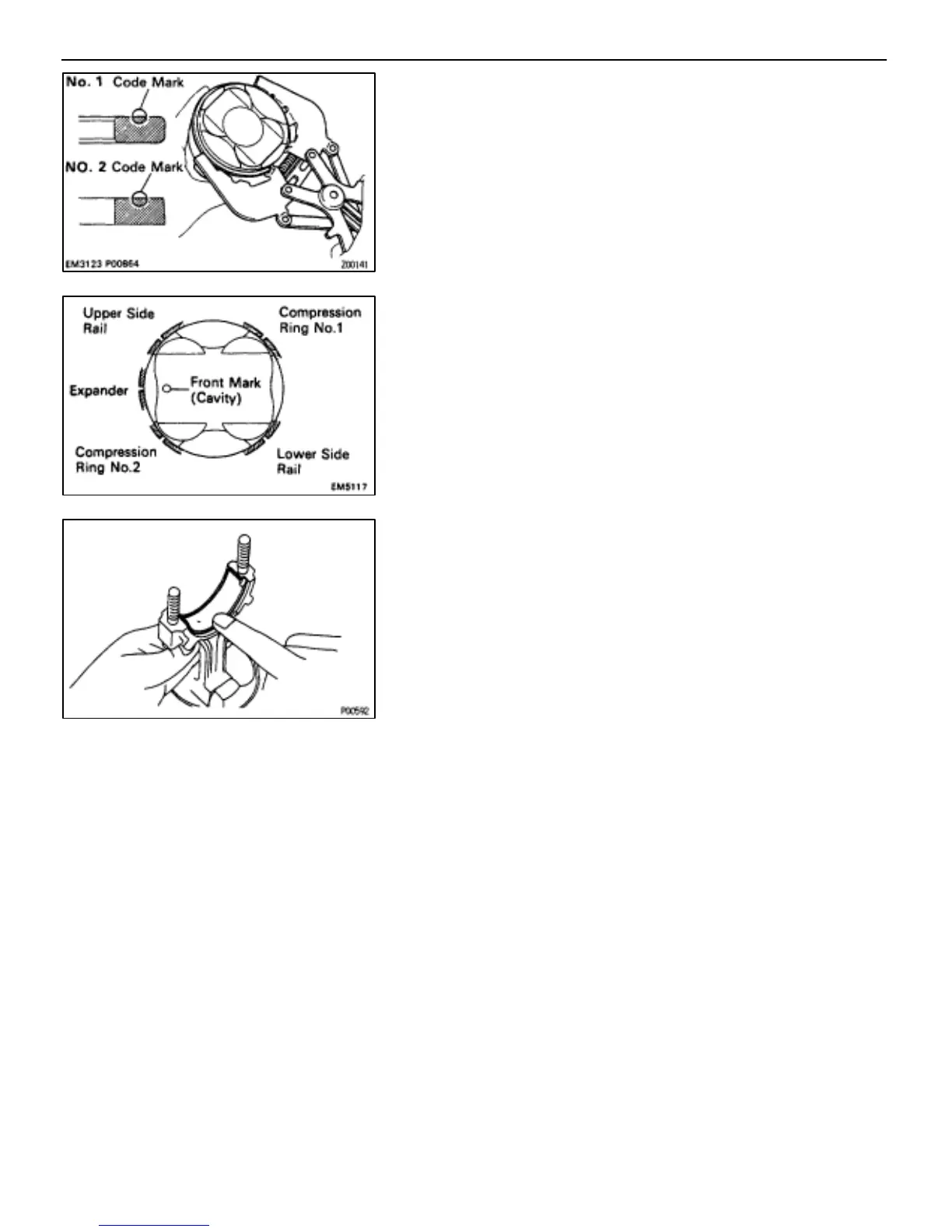

(b) Using a piston ring expander, install the two compression
rings with the code mark facing upward.
Code mark:
No.1
T or 1R
No.2
T2 or 2R
(c) Position the piston rings so that the ring ends are as shown.
NOTICE: Do not align the ring ends.
3. INSTALL BEARINGS
(a) Align the bearing claw with the groove of the connecting rod
or connecting cap.
(b) Install the bearings in the connecting rod and connecting rod
cap.
