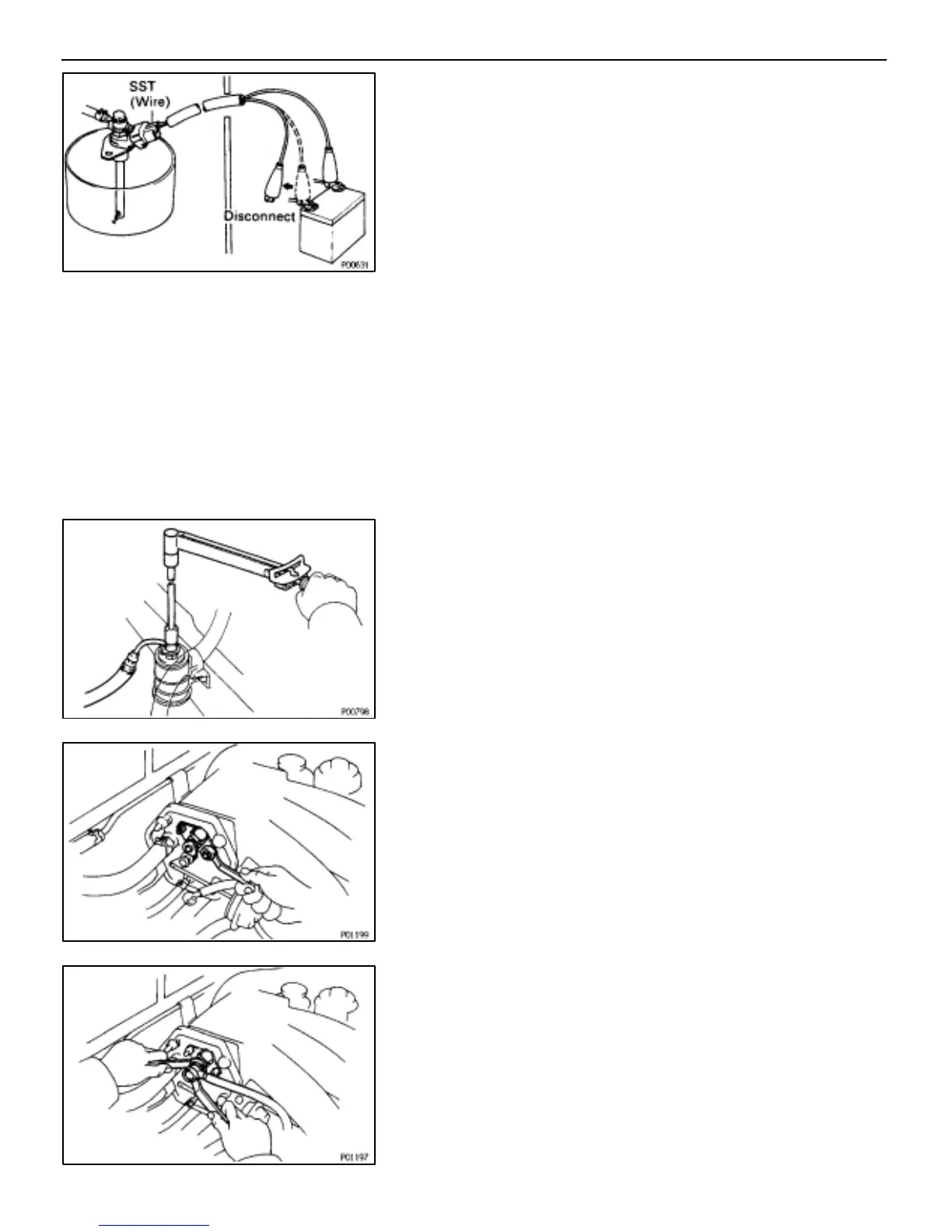

2. INSPECT LEAKAGE
(a) In the condition above, disconnect the test probes of SST
(wire) from the battery and check fuel leakage from the
injector.
SST 09842–30050
Fuel drop:
One drop or less per minute
(b) Disconnect the battery negative (–) cable.
(c) Remove SST.
SST 09268–41045, 09842–30050 and 09843–18020
(d) Connect the fuel inlet hose with two new gaskets and the
union bolt.
Torque: 29 N⋅m (300 kgf⋅cm, 22 ft⋅lbf)
COLD START INJECTOR INSTALLATION
EG0GP–01
(See page EG–179)
1. INSTALL COLD START INJECTOR
Install a new gasket and the injector with the two nuts.
Torque: 8.3 N⋅m (85 kgf⋅cm, 74 in.⋅lbf)
2. CONNECT COLD START INJECTOR PIPE (NO. 2 FUEL
PIPE)
Connect the injector pipe with two new gaskets and the union
bolt.
Torque: 15 N⋅m (150 kgf⋅cm, 11 ft⋅lbf)
3. CONNECT COLD START INJECTOR CONNECTOR
4. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
5. CHECK FOR FUEL LEAKAGE (See page EG–160)
EG–182
–ENGINE TROUBLESHOOTING SFI SYSTEM
