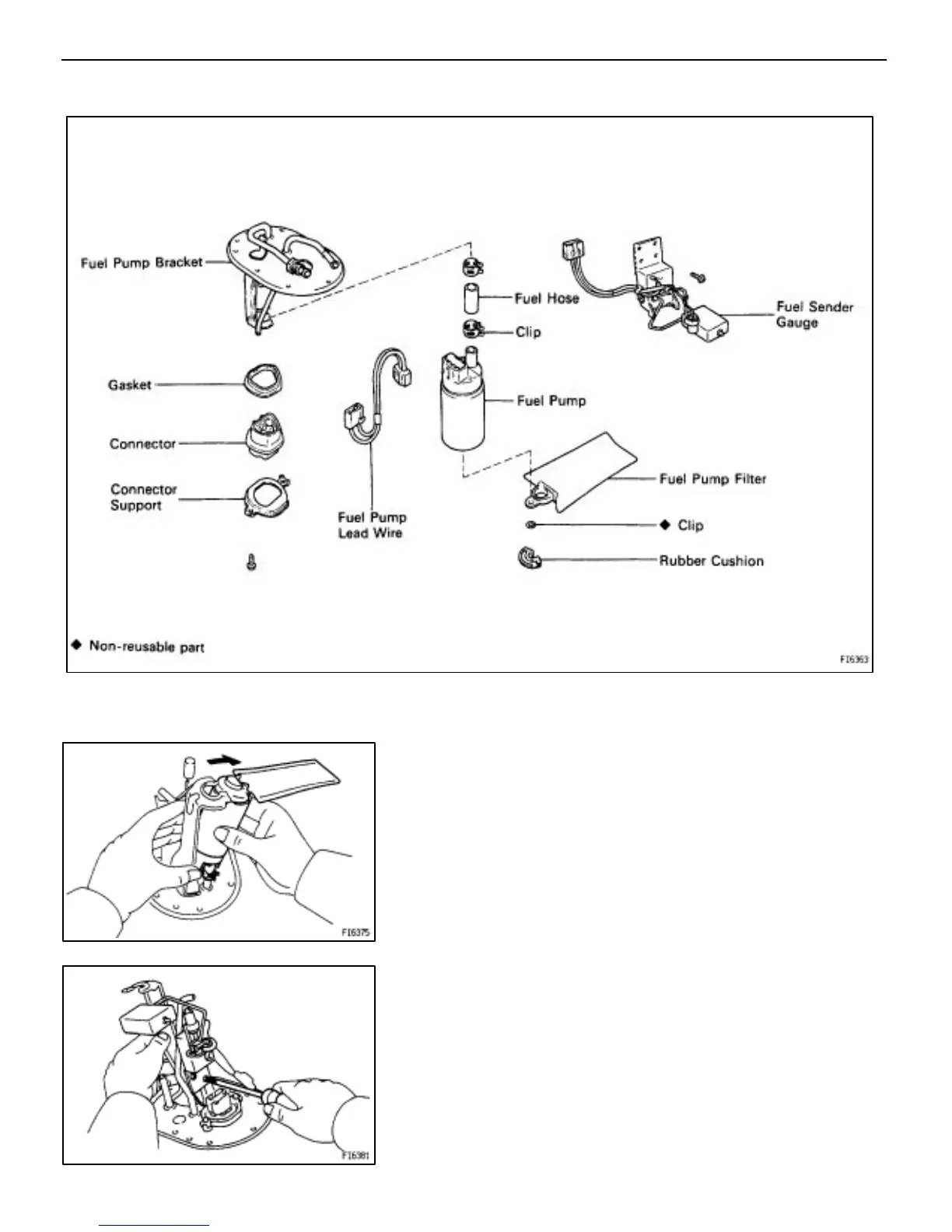

COMPONENTS
EG0GG–01
FUEL PUMP DISASSEMBLY
EG0GH–01
1. REMOVE FUEL PUMP FROM FUEL PUMP BRACKET
(a) Remove the fuel pump lead wire.
(b) Pull off the lower side of the fuel pump from the pump bracket.
(c) Disconnect the fuel hose from the fuel pump, and remove the
fuel pump.
(d) Remove the rubber cushion from the fuel pump.
2. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP
BRACKET
(a) Disconnect the fuel sender gauge connector.
(b) Remove the two screws and sender gauge.
EG–176
–ENGINE TROUBLESHOOTING SFI SYSTEM
