STARTER RELAY
STARTER RELAY INSPECTION
ST01H–02
LOCATION: (See page ST–2)

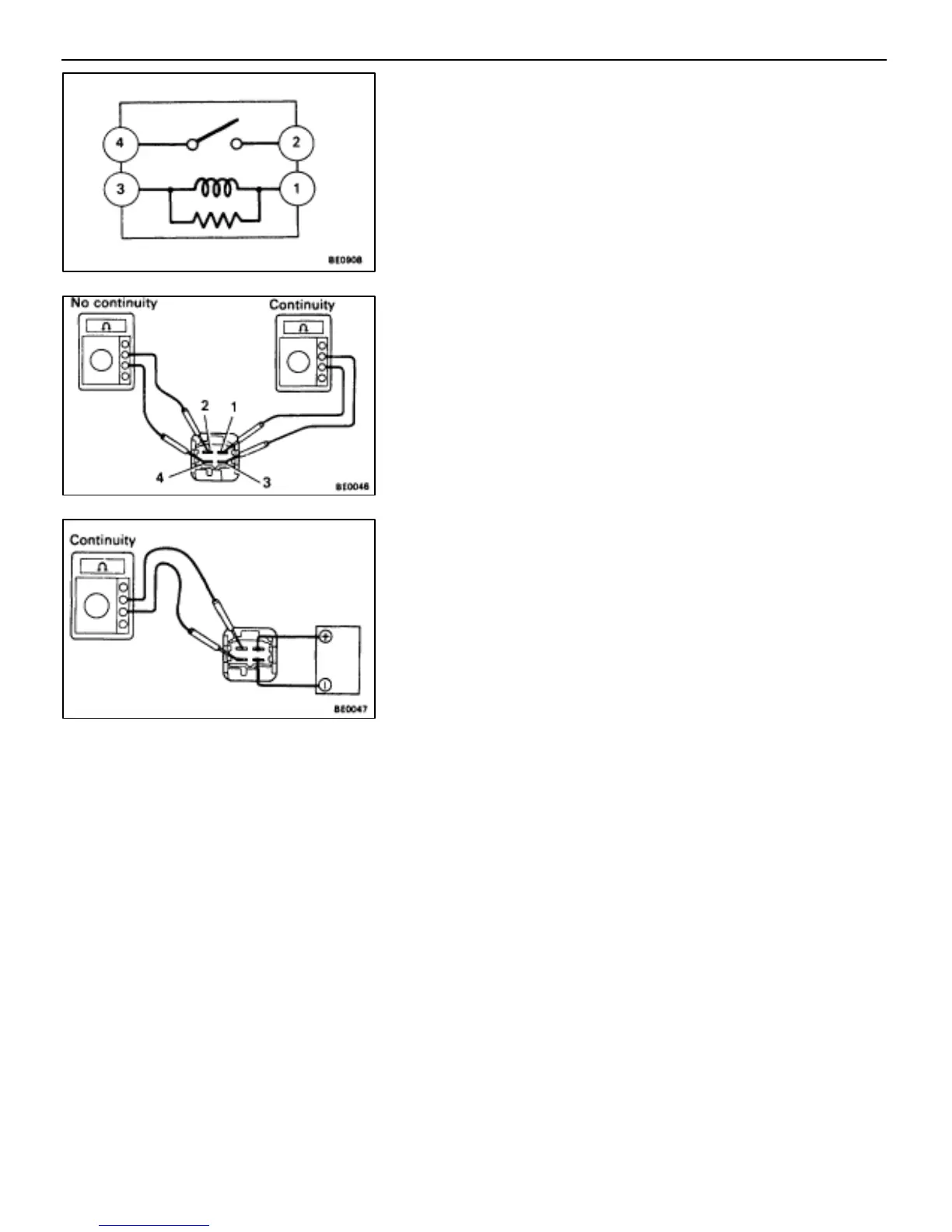

1. INSPECTION RELAY CONTINUITY
(a) Using an ohmmeter, check that there is continuity between
terminals 1 and 3.
(b) Check that there is no continuity between terminals 2 and 4.
If continuity is not as specified, replace the relay.
2. INSPECT RELAY OPERATION
(a) Apply battery voltage across terminals 1 and 3.
(b) Using an ohmmeter, check that there is continuity between
terminals 2 and 4.
If operation is not as specified, replace the relay.
CLUTCH START SWITCH
ST01K–01
(See MX section)
NEUTRAL START SWITCH
ST01N–01
(See AX section)
–STARTING SYSTEM NEUTRAL START SWITCH
ST–19
