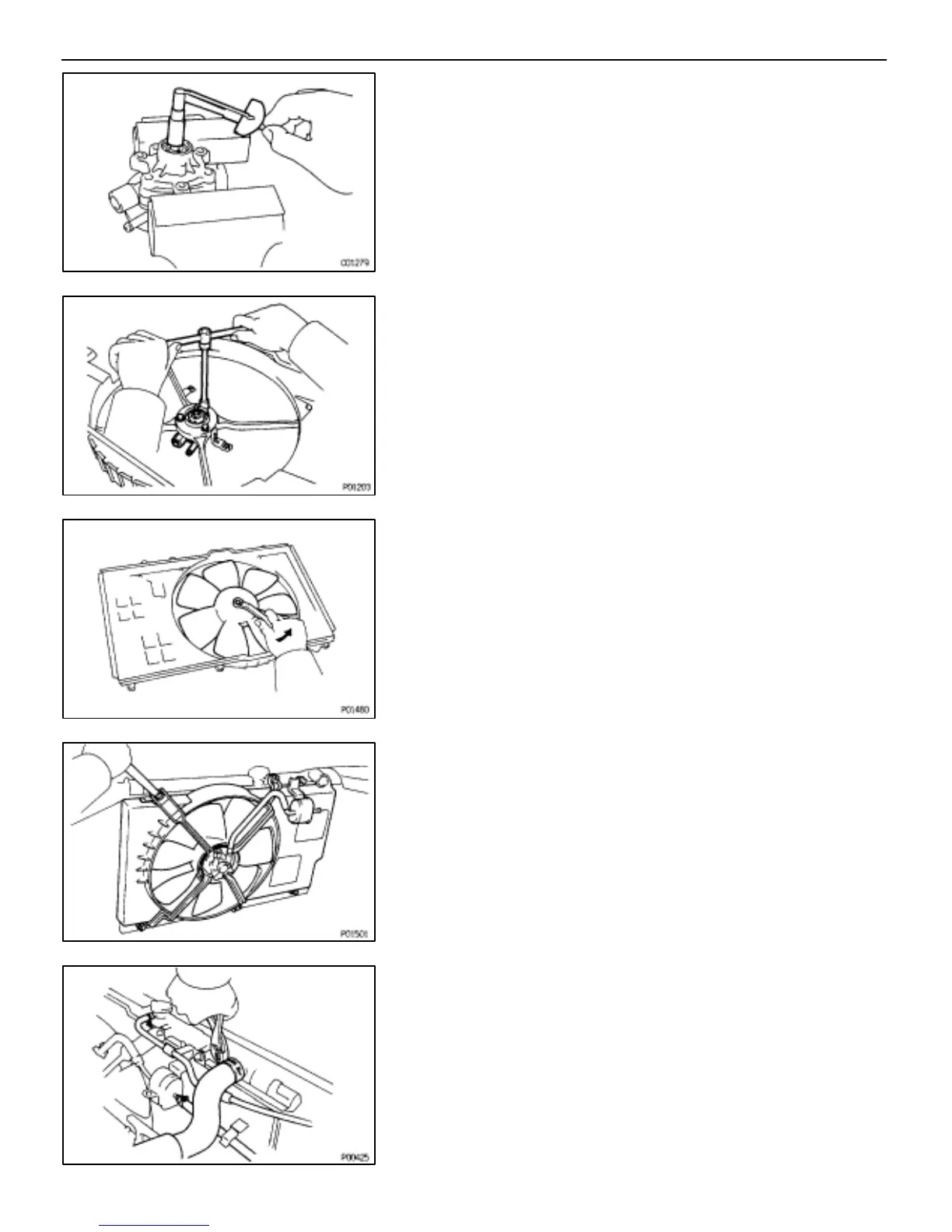

7. INSPECT DRIVE SHAFT PRELOAD
(a) Check that the drive shaft rotates smoothly without abnormal
noise.
(b) Temporarily install the pulley nut, and check the rotating
torque.
Rotating torque:
0.3 N⋅m (3.0 kgf⋅cm, 2.6 in.⋅lbf)
HYDRAULIC MOTOR INSTALLATION
EG0AK–01
(See page EG–268)
1. INSTALL HYDRAULIC MOTOR TO FAN SHROUD
Install the hydraulic motor with the three bolts.
Torque: 4.9 N⋅m (50 kgf⋅cm, 43 in.⋅lbf)
2. INSTALL COOLING FAN TO HYDRAULIC MOTOR
Install the fan with the plate washer and nut.
Tighten the nut by turning it counterclockwise.
Torque: 15 N⋅m (150 kgf⋅cm, 11 ft⋅lbf)
3. INSTALL HYDRAULIC COOLING FAN
Install the hydraulic cooling fan with the six bolts.
Torque: 4.9 N⋅m (50 kgf⋅cm, 43 in.⋅lbf)
4. CONNECT HYDRAULIC MOTOR RETURN HOSE
5. CONNECT ENGINE COOLANT RESERVOIR HOSE
6. CONNECT RADIATOR UPPER HOSE
–ENGINE TROUBLESHOOTING COOLING SYSTEM
EG–275
