GENERATOR

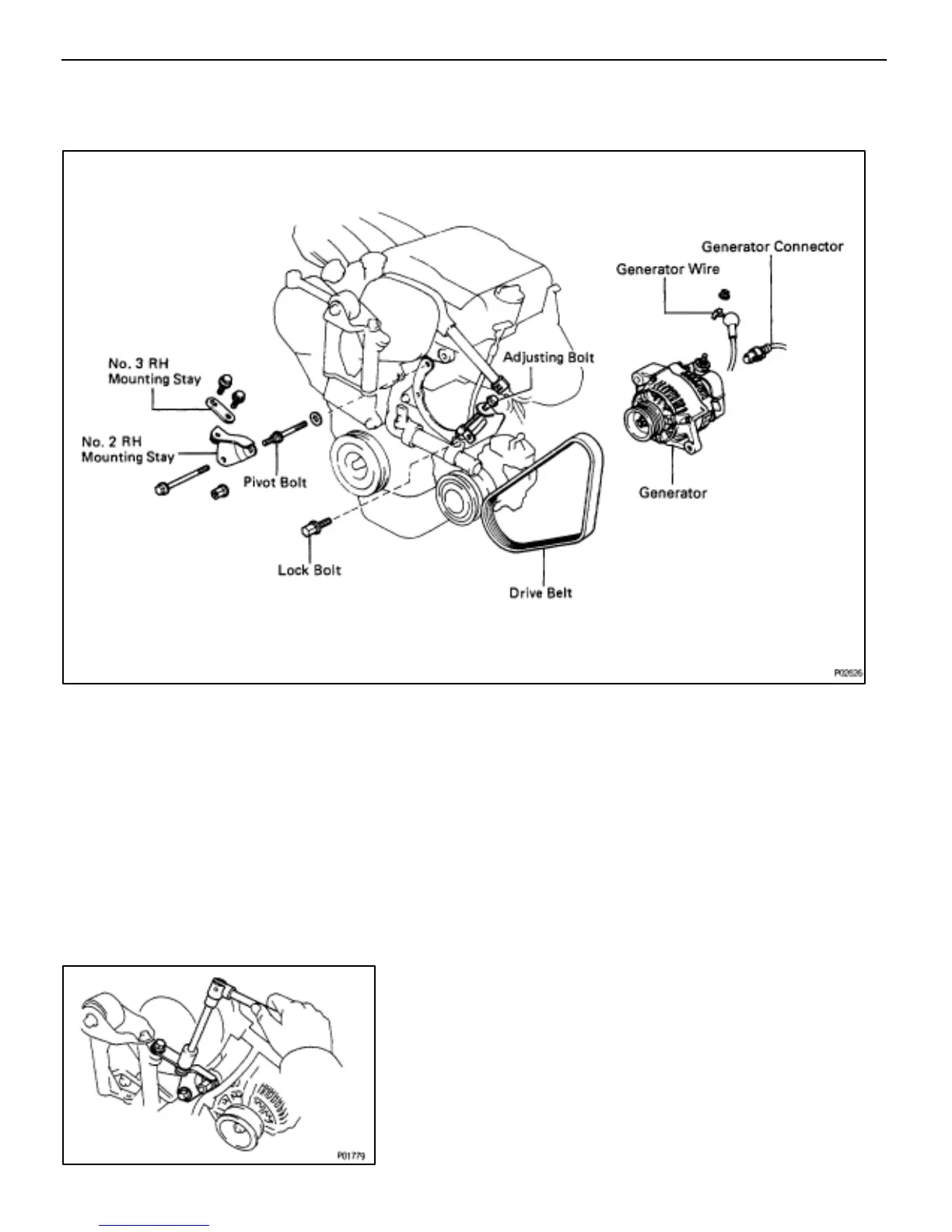

GENERATOR REMOVAL
CH00Z–02
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
CAUTION (w / Airbag): Work must be started after
approx. 30 seconds or longer from the time the ignition
switch is turned to the “LOCK” position and the negative
(–) terminal cable is disconnected from the battery.
2. REMOVE NO.2 AND NO.3 RH ENGINE MOUNTING STAYS
(a) Remove the two bolts and No.3 RH engine mounting stay.
(b) Remove the bolt, nut and No.2 RH engine mounting stay.
–CHARGING SYSTEM GENERATOR
CH–9
To Next Page
