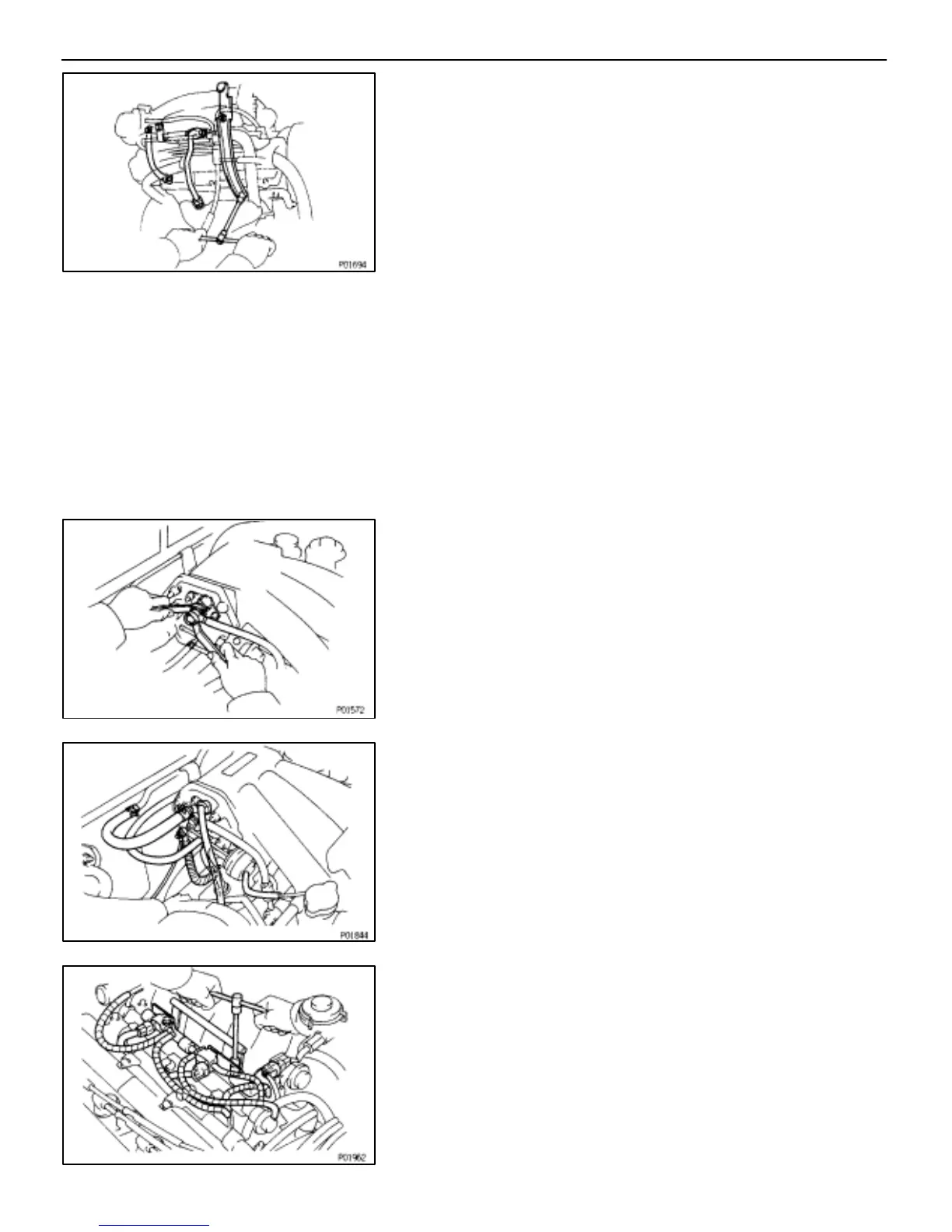

9. CONNECT HYDRAULIC MOTOR PRESSURE PIPE
Connect the hydraulic pressure pipe to the air intake cham-
ber with the bolt.
10. INSTALL EGR PIPE
Install a new gasket, sleeve ball and the EGR pipe with the
two bolts and union nut.
Bolt
Torque: 18 N⋅m (185 kgf⋅cm, 13 ft⋅lbf)
Union nut
Torque: 78 N⋅m (800 kgf⋅cm, 58 ft⋅lbf)
11. INSTALL NO.1 ENGINE HANGER AND AIR INTAKE
CHAMBER STAY
(a) Install the air intake chamber stay with the two bolts.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
(b) Install the No.1 engine hanger with the two bolts.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
12. CONNECT COLD START INJECTOR PIPE (NO. 2 FUEL
PIPE)
Connect the injector pipe with two new gaskets and union
bolt.
Torque: 15 N⋅m (150 kgf⋅cm, 11 ft⋅lbf)
13. CONNECT COLD START INJECTOR CONNECTOR
14. CONNECT GROUND STRAPS
Connect the two ground straps with the nut.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
15. CONNECT HOSES
(a) Brake booster vacuum hose
(b) PS air hose
(c) PCV hose
(d) IACV vacuum hose
16. INSTALL EMISSION CONTROL VALVE SET
(a) Install the emission control valve set with the two bolts.
(b) Connect the two VSV connectors.
(c) Connect the two vacuum hoses of the IACV VSV.
(d) Connect the two vacuum hoses of the fuel pressure control
VSV.
(e) Connect the EGR gas temp. sensor connector clamp to the
emission control valve set.
EG–196
–ENGINE TROUBLESHOOTING SFI SYSTEM
