(5) Vacuum hose (from throttle body) to TVV (for EVAP)

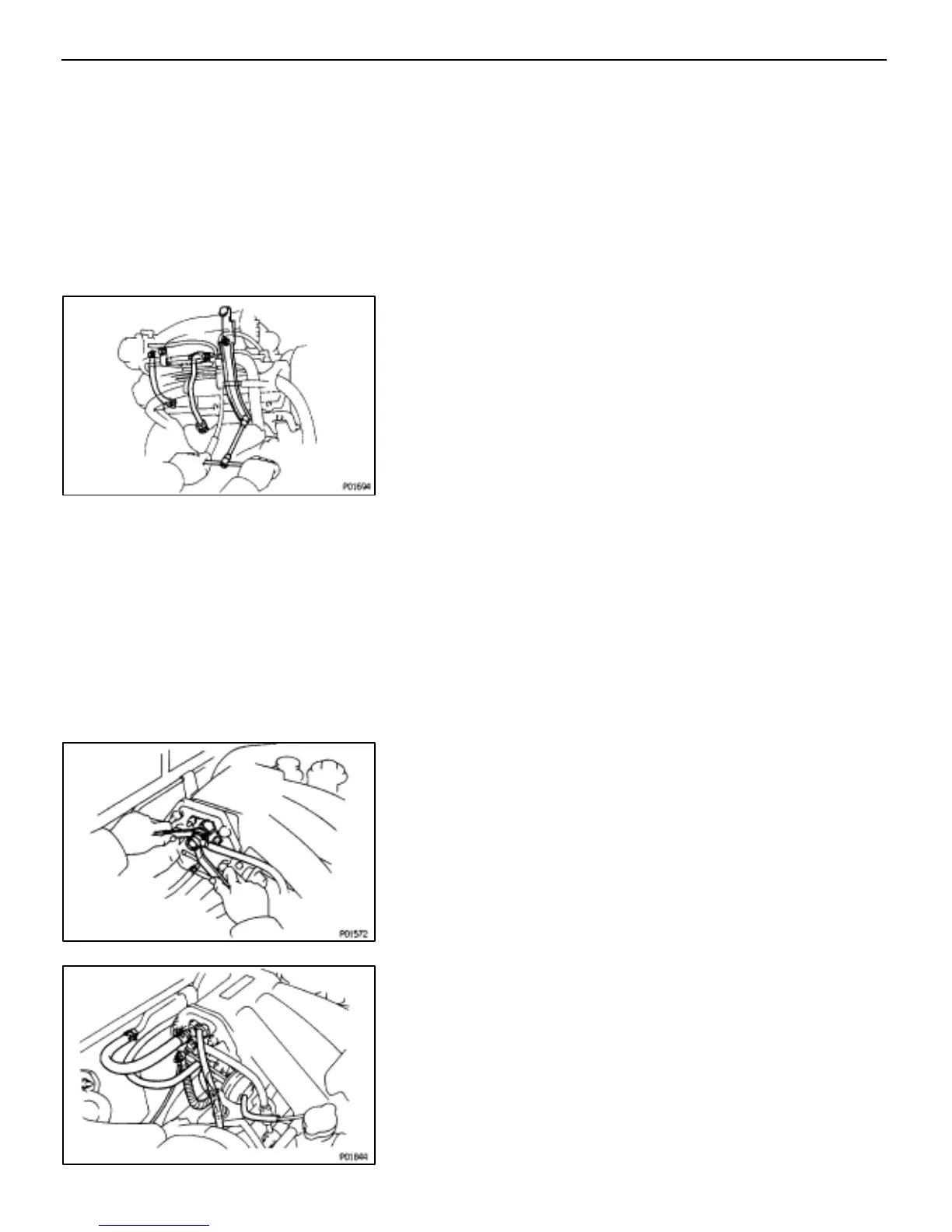

27. RECONNECT HYDRAULIC MOTOR PRESSURE PIPE
Connect the hydraulic pressure pipe to the air intake cham-
ber with the bolt.
28. REINSTALL EGR PIPE
Install a new gasket, sleeve ball and the EGR pipe with the
two bolts and union nut.
Bolt
Torque: 18 N⋅m (185 kgf⋅cm, 13 ft⋅lbf)
Union nut
Torque: 78 N⋅m (800 kgf⋅cm, 58 ft⋅lbf)
29. REINSTALL NO. 1 ENGINE HANGER AND AIR INTAKE
CHAMBER STAY
(a) Install the air intake chamber stay with the two bolts.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
(b) Install the No.1 engine hanger with the two bolts.
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
30. RECONNECT COLD START INJECTOR PIPE (NO.2 FUEL
PIPE)
Connect the injector pipe with the two new gaskets and union
bolt.
Torque: 15 N⋅m (150 kgf⋅cm, 11 ft⋅lbf)
31. RECONNECT COLD START INJECTOR CONNECTOR
32. RECONNECT GROUND STRAPS
Connect the two ground straps with the nut.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
33. RECONNECT HOSES
(a) Brake booster vacuum hose
(b) PS air hose
(c) PCV hose
(d) IACV vacuum hose
EG–20
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
