CYLINDER HEADS INSTALLATION
(See page EG–47)

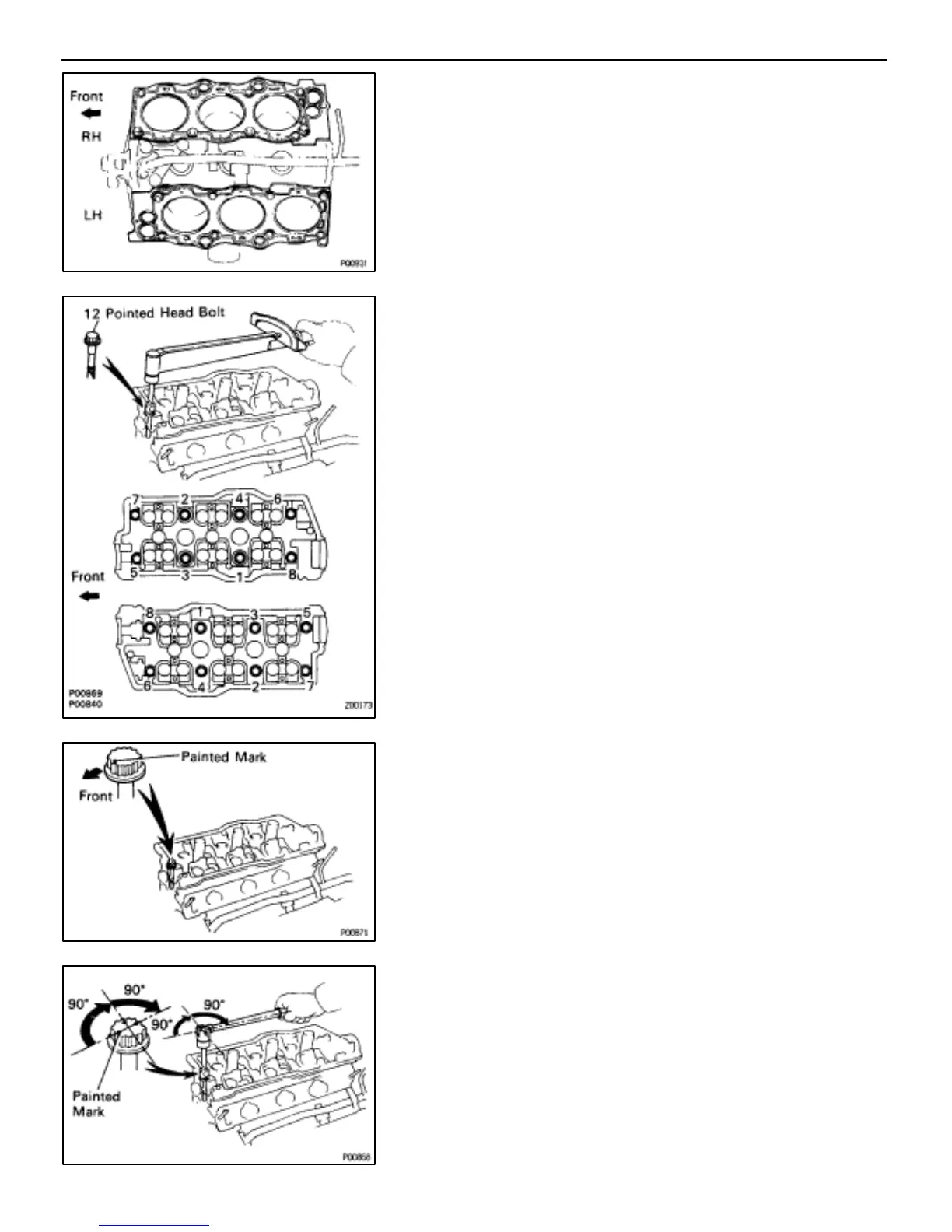

1. INSTALL CYLINDER HEADS
A. Place cylinder head on cylinder block
(a) Place a new cylinder head gasket in position on the cylinder
block.
NOTICE: Be sure to install the gasket correctly.
(b) Place the cylinder head in position on the cylinder head
gasket.
B. Install cylinder head (12 pointed head) bolts
HINT:
•The cylinder hrad bolts are tightened in three progressive
steps (steps (b), (d) and (e)).
•If any bolts is broken or deformed, replace it.
(a) Apply a light coat of engine oil on the threads and under the
heads of the cylinder head bolts.
(b) Install and uniformly tighten the cylinder head bolts in several
passes, in the sequence shown.
Torque: 34 N⋅m (350 kgf⋅cm, 25 ft⋅lbf)
If any one of the bolts does not meet the torque specification,
replace the bolt.
(c) Mark the front of the cylinder head bolt head with paint.
(d) Retighten the cylinder head bolts 90 in the numerical order
shown.
(e) Retighten cylinder head bolts by an additional 90.
(f) Check that the painted mark is now facing rearward.
