5. INSPECT SIGNAL GENERATOR (PICKUP COIL)
RESISTANCE

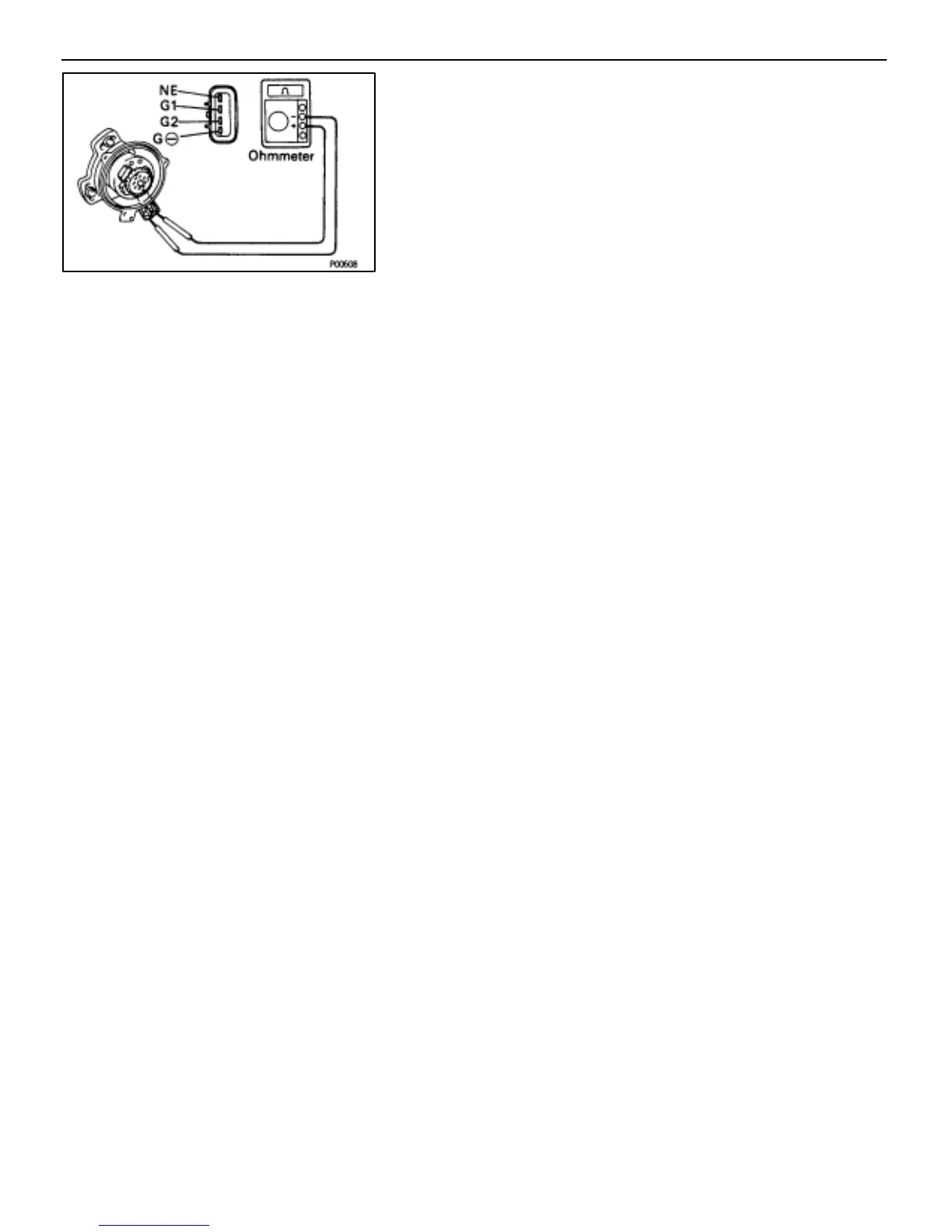

Using an ohmmeter, measure the resistance between termi-
nals.
Pickup coil resistance (Cold):
G1 and G 
125–190  at–10~40°C (14~104°F)
G2 and G 
125–190  at–10~40°C (14~104°F)
NE and G 
155–240  at–10~40°C (14~104°F)
If the resistance is not as specified, replace the distributor
housing assembly.
6. REINSTALL ROTOR
7. REINSTALL DISTRIBUTOR CAP
8. RECONNECT DISTRIBUTOR CONNECTOR
IGNITER INSPECTION
IG01S–02
(See procedure Spark Test on page IG–6)
IG–12
–IGNITION SYSTEM ON–VEHICLE INSPECTION
