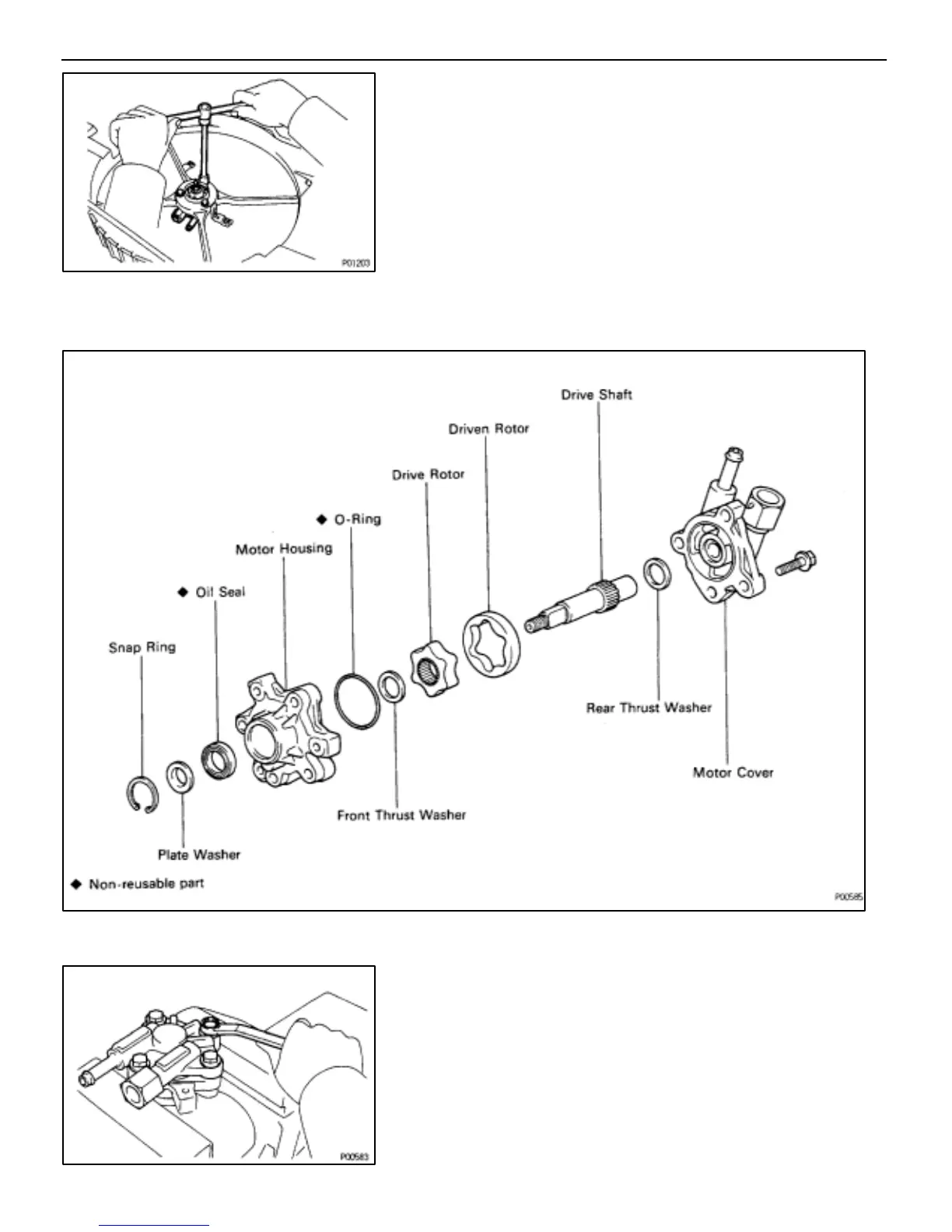

10. REMOVE HYDRAULIC MOTOR FROM FAN SHROUD
Remove the three bolts and hydraulic motor.
COMPONENTS
EG0AE–01
HYDRAULIC MOTOR DISASSEMBLY
EG0AF–01
1. MOUNT MOTOR HOUSING
Slightly mount the motor housing in a vise.
NOTICE: Be careful not to damage the motor housing.
2. REMOVE MOTOR COVER
(a) Remove the four bolts and motor cover.
(b) Remove the O–ring from the motor cover.
EG–270
–ENGINE TROUBLESHOOTING COOLING SYSTEM
