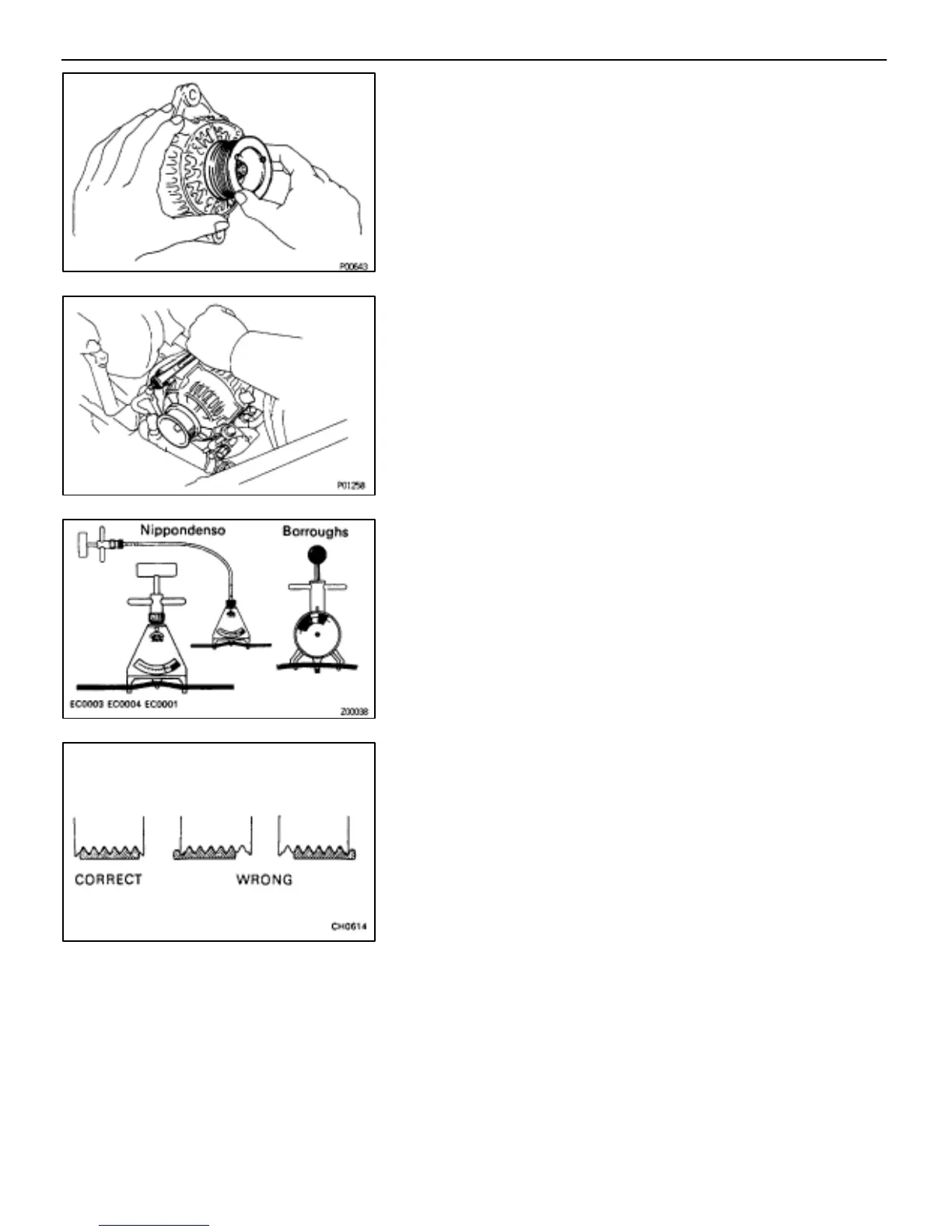

7. CHECK THAT ROTOR ROTATES SMOOTHLY
GENERATOR INSTALLATION
CH019–02
(See page CH–9)
1. INSTALL GENERATOR
(a) Mount generator on the generator bracket with the pivot bolt
and adjusting lock bolt. Do not tighten the bolts yet.
(b) Connect the generator connector.
(c) Connect the generator wire with the nut.
2. INSTALL DRIVE BELT
(a) Install the drive belt.
(b) Using a belt tension gauge, measure the drive belt tension.
Belt tension gauge:
Nippondenso BTG–20 (95506–00020)
Borroughs No. BT–33–73F
Drive belt tension:
New belt
175±5 lb
Used belt
115±20 lb
(c) Tighten the pivot and adjusting lock bolt.
HINT:
• “New belt” refers to a belt which has been used less than
5 minutes on a running engine.
• “Used belt” refers to a belt which has been used on a
running engine for 5 minutes or more.
• After installing a belt, check that it fits properly in the
ribbed grooves.
• Check by hand to confirm that the belt has not slipped
out of the groove on the bottom of the pulley.
• After installing a new belt, run the engine for about 5
minutes and recheck the belt tension.
CH–20
–CHARGING SYSTEM GENERATOR
