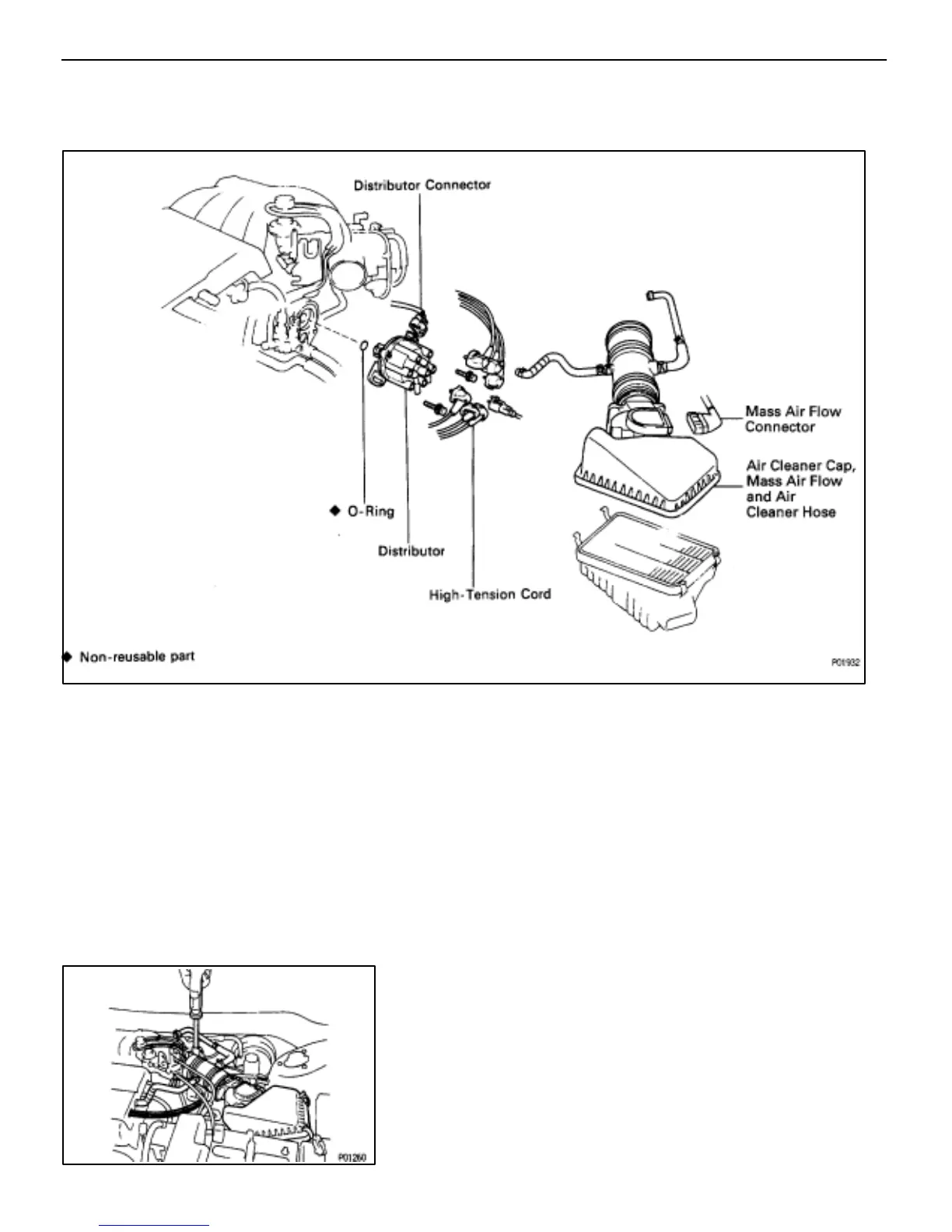

DISTRIBUTOR
DISTRIBUTOR REMOVAL
IG01T–01
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
CAUTION (w / Airbag): Work must be started after
approx. 30 seconds or longer from the time the ignition
switch is turned to the “LOCK” position and the negative
(–) terminal cable is disconnected from the battery.
2. REMOVE AIR CLEANER CAP, MASS AIR FLOW AND AIR
CLEANER HOSE
(a) Disconnect the mass air flow connector.
(b) Disconnect the mass air flow wire from the clamp on the mass
air flow.
(c) Disconnect the air hoses.
(d) Loosen the air cleaner hose clamp bolt.
(e) Disconnect the four air cleaner cap clips.
(f) Disconnect the air cleaner hose from the throttle body, and
remove the air cleaner cap together with the mass air flow
and air cleaner hose.
–IGNITION SYSTEM DISTRIBUTOR
IG–13
