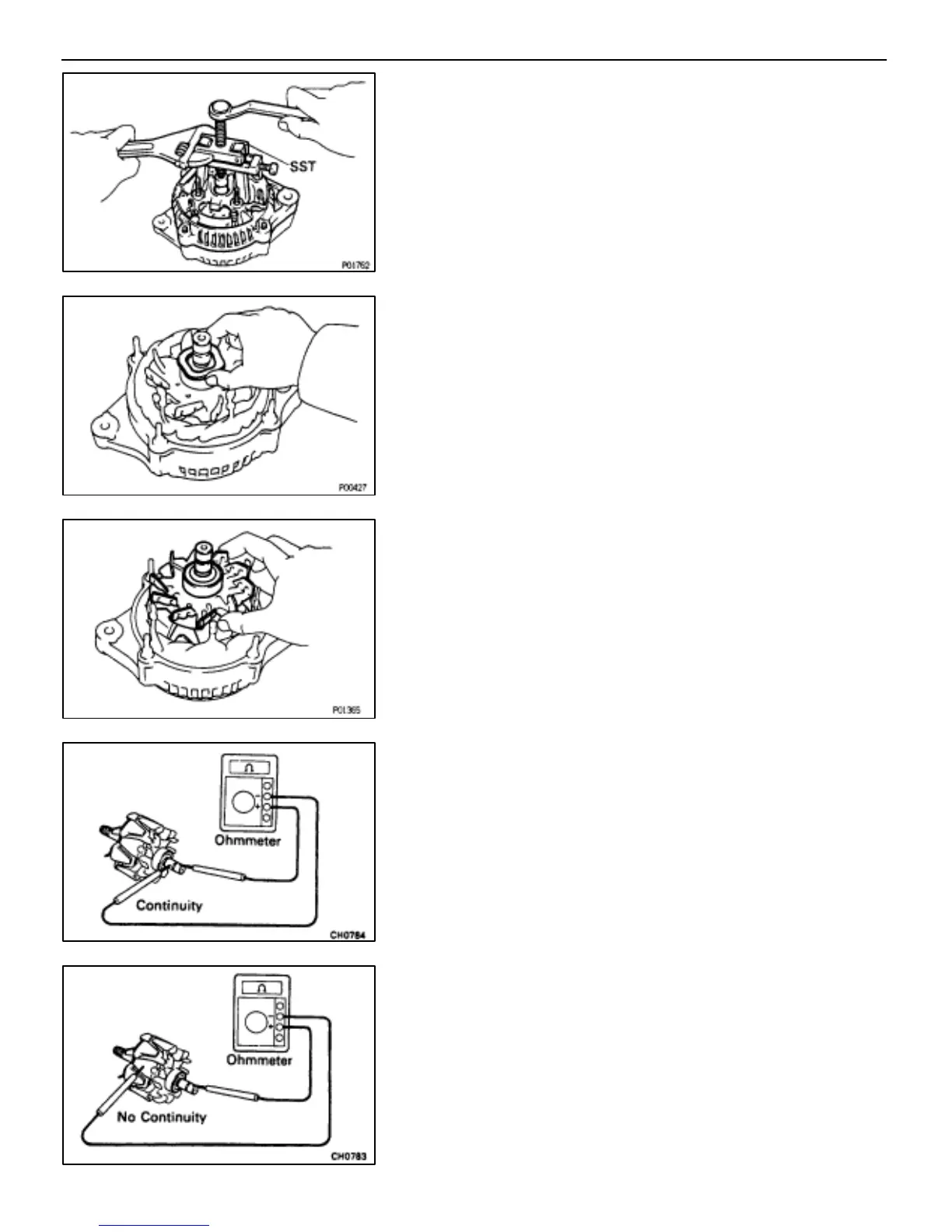

(b) Using SST, remove the rectifier end frame.
SST 09286–46011
(c) Remove the thrust washer.
6. REMOVE ROTOR FROM DRIVE END FRAME
GENERATOR INSPECTION AND REPAIR
CH015–01
Rotor
1. INSPECT ROTOR FOR OPEN CIRCUIT
Using an ohmmeter, check that there is continuity between
the slip rings.
Standard resistance (Cold):
2.8–3.0
If there is no continuity, replace the rotor.
2. INSPECT ROTOR FOR GROUND
Using an ohmmeter, check that there is no continuity be-
tween the slip ring and rotor.
If there is continuity, replace the rotor.
–CHARGING SYSTEM GENERATOR
CH–13
