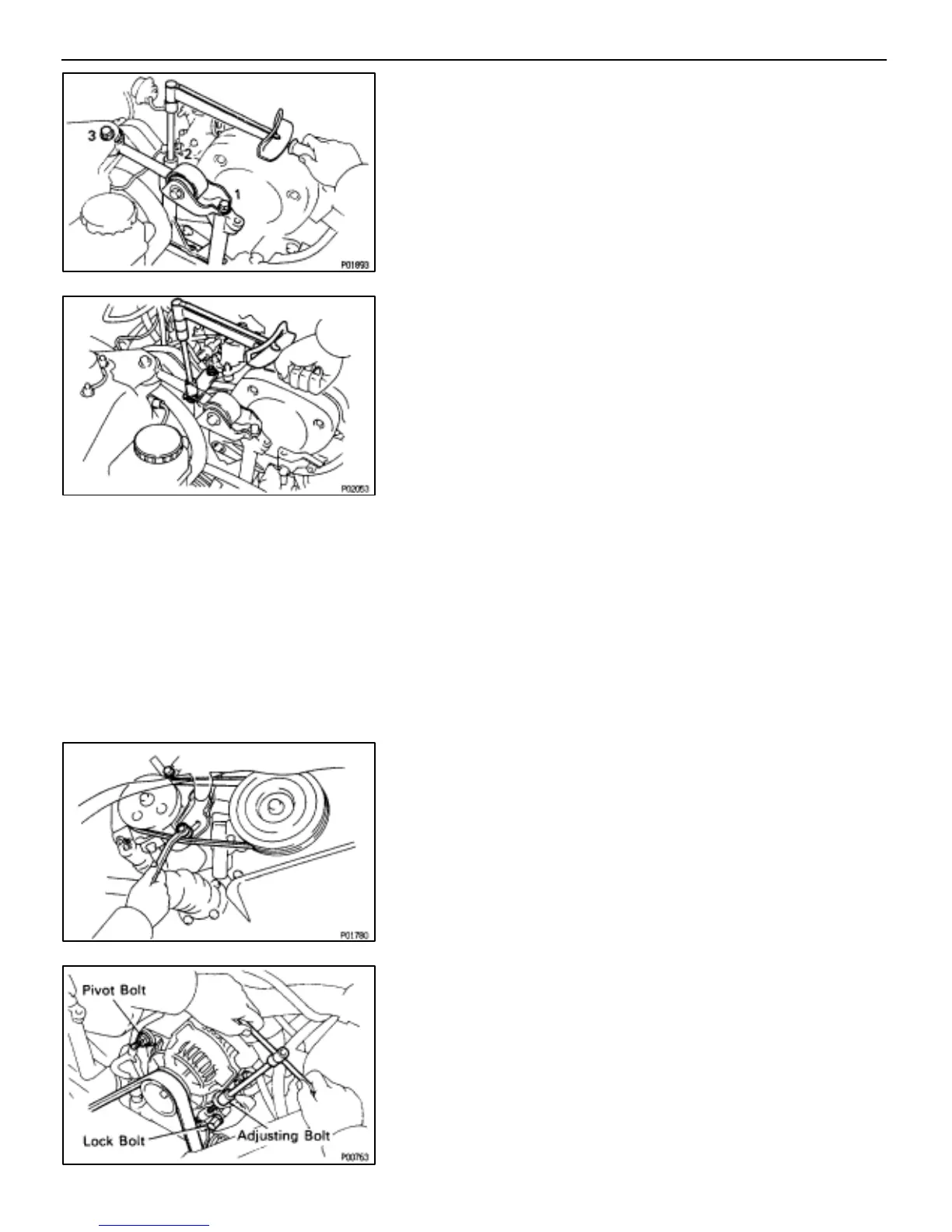

(b) Torque the three bolts in the sequence shown.
Torque: 64 N⋅m (650 kgf⋅cm, 47 ft⋅lbf)
20. INSTALL RH ENGINE MOUNTING STAY
Install the mounting stay with the bolt and nut.
Torque: 31 N⋅m (320 kgf⋅cm, 23 ft⋅lbf)
21. CONNECT CONNECTOR TO GROUND WIRE ON RH
FENDER APRON
22. INSTALL RH FENDER APRON SEAL
23. INSTALL RH FRONT WHEEL
24. INSTALL AND ADJUST PS DRIVE BELT
Install the drive belt with the pivot and adjusting bolts.
Drive belt tension:
New belt
150–185 lb
Used belt
115±20 lb
25. INSTALL GENERATOR DRIVE BELT
Adjust the drive belt. (See CH section)
Drive belt tension:
New belt
175±5 lb
Used belt
115±20 lb
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–45
