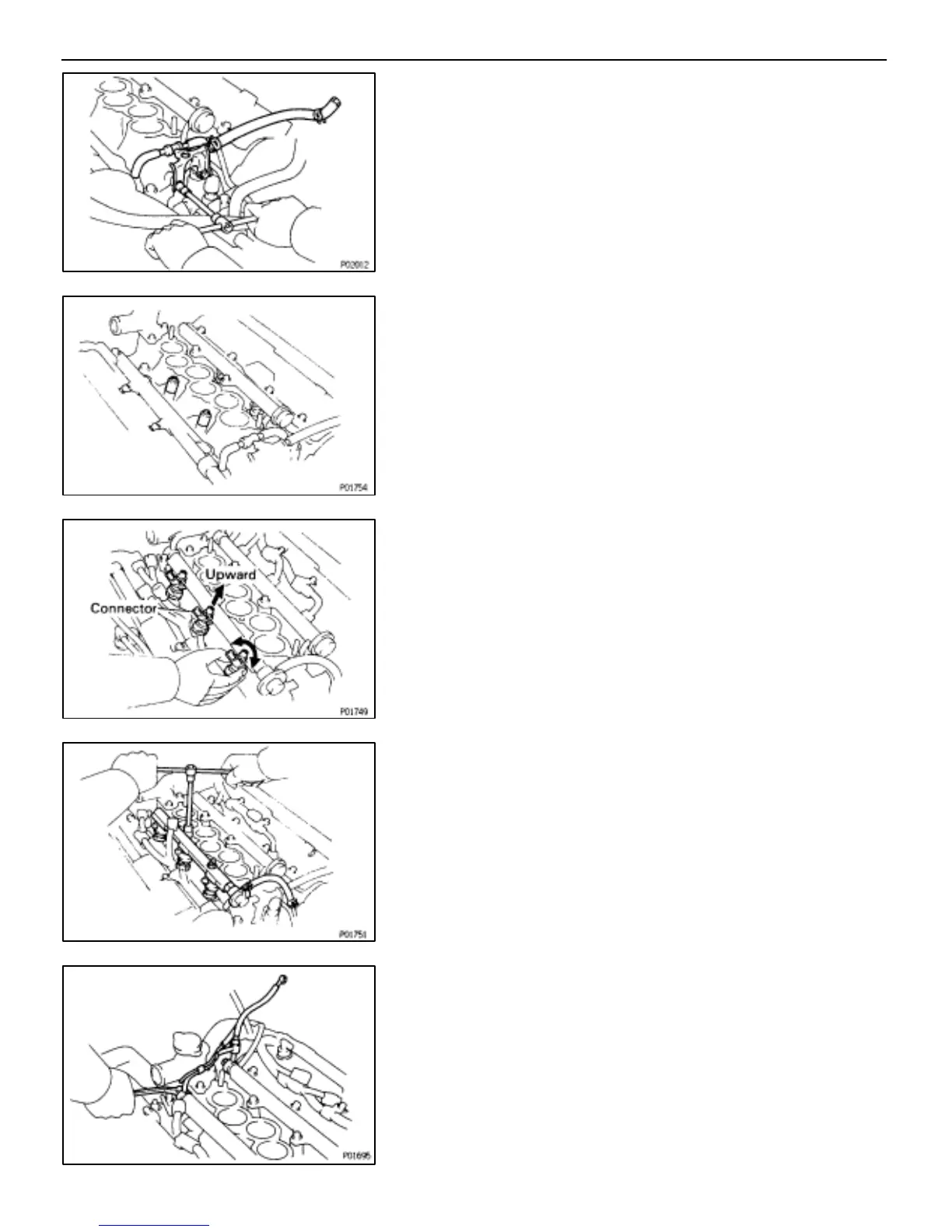

3. INSTALL AIR PIPE WITH HOSES
(a) Install the air pipe with the two bolts.
Torque: 8.3 N⋅m (85 kgf⋅cm, 74 in.⋅lbf)
(b) Connect the two air hoses.
4. INSTALL LH DELIVERY PIPE AND INJECTORS
(a) Place the two spacers in position on the intake manifold.
Clean the injector holes before installing the injectors
into the intake manifold.
(b) Place the three injectors together with the LH delivery pipe in
position on the intake manifold.
(c) Check that the injectors rotate smoothly.
HINT: If the injectors do not rotate smoothly, the probable
cause is incorrect installation of O–rings.
Replace the O–rings.
(d) Position the injector connector upward.
(e) Install and tighten the two bolts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
(f) Connect the fuel hose to the No.1 fuel pipe.
5. INSTALL NO.2 FUEL PIPE
(a) Install the No.2 fuel pipe with four new gaskets and the two
union bolts.
Torque: 34 N⋅m (350 kgf⋅cm, 25 ft⋅lbf)
(b) Connect the IACV vacuum hose.
6. CONNECT INJECTOR CONNECTORS
EG–194
–ENGINE TROUBLESHOOTING SFI SYSTEM
