COLD START INJECTOR INSPECTION
EG0GN–01

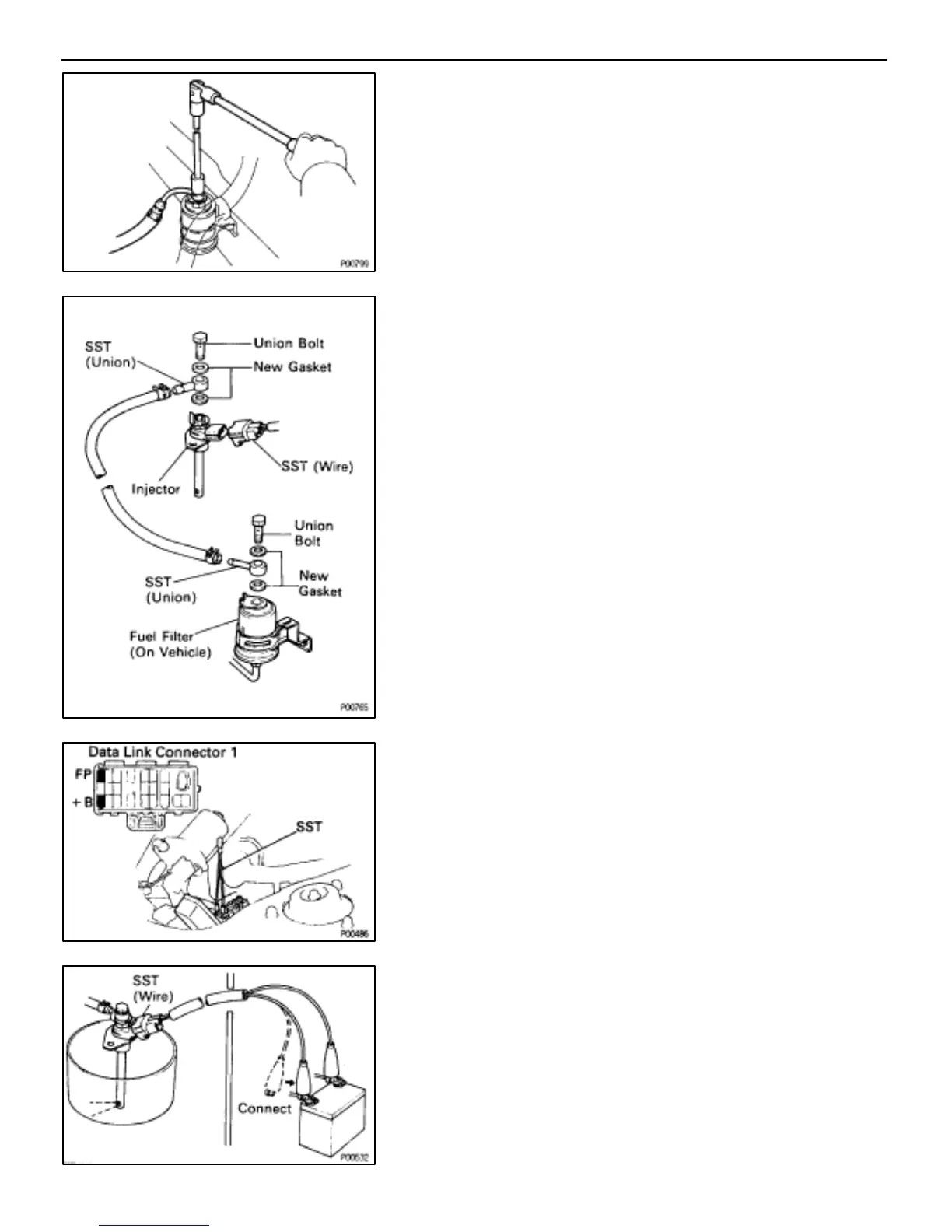

1. INSPECT INJECTION OF COLD START INJECTOR
CAUTION: Keep injector clear of sparks during the test.
(a) Put a suitable container or shop towel under the fuel filter.
(b) Remove the union bolt and two gaskets, and disconnect the
fuel inlet hose from the fuel filter outlet.
HINT: Slowly loosen the union bolt.
(c) Install SST (two unions) to the injector and fuel filter outlet
with new gaskets and the union bolts.
SST 09268–41045(09268–41080,09405–09015)
(d) Connect SST (hose) to the unions.
SST 09268–41045
(e) Connect SST (wire) to the injector.
SST 09842–30055
(f) Put a container under the injector.
(g) Reconnect the battery negative (–) cable.
(h) Turn the ignition switch ON.
NOTICE: Do not start the engine.
(i) Using SST, connect terminals +B and FP of the data link
connector 1.
SST 09843–18020
(j) Connect the test probes of the SST (wire) to the battery, and
check that the fuel spray is as shown.
SST 09842–30055
NOTICE: Perform this check within the shortest possible
time.
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–181
To Next Page
