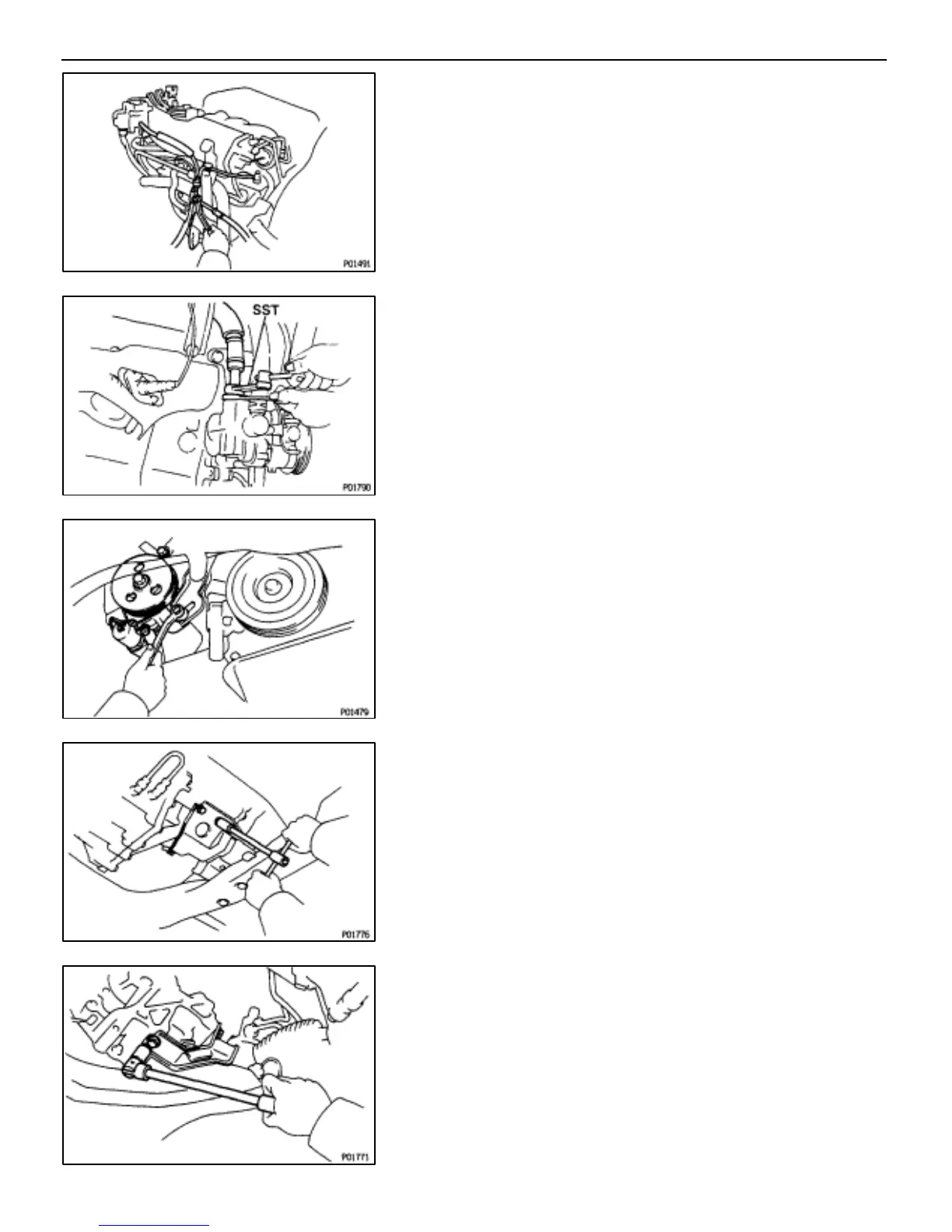

28. DISCONNECT PS ACV
(a) Disconnect the two PS air hoses.
(b) Remove the nut and disconnect the PS ACV
29. DISCONNECT HYDRAULIC COOLING FAN PRESSURE
HOSE
Using SST, disconnect the pressure hose.
SST 09631–22020
30. REMOVE PS PUMP WITHOUT DISCONNECTING HOSES
(a) Remove the PS drive belt.
(b) Remove the two bolts, and disconnect the PS pump from the
engine.
HINT: Put aside the pump and suspend it to the cowl with a
string.
31. DISCONNECT LH ENGINE MOUNTING INSULATOR
(M/T)
Remove the three bolts, and disconnect the mounting insula-
tor.
(A/T)
Remove the four bolts, and disconnect the mounting insula-
tor.
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–95
