Rectifiers (Rectifier Holder)

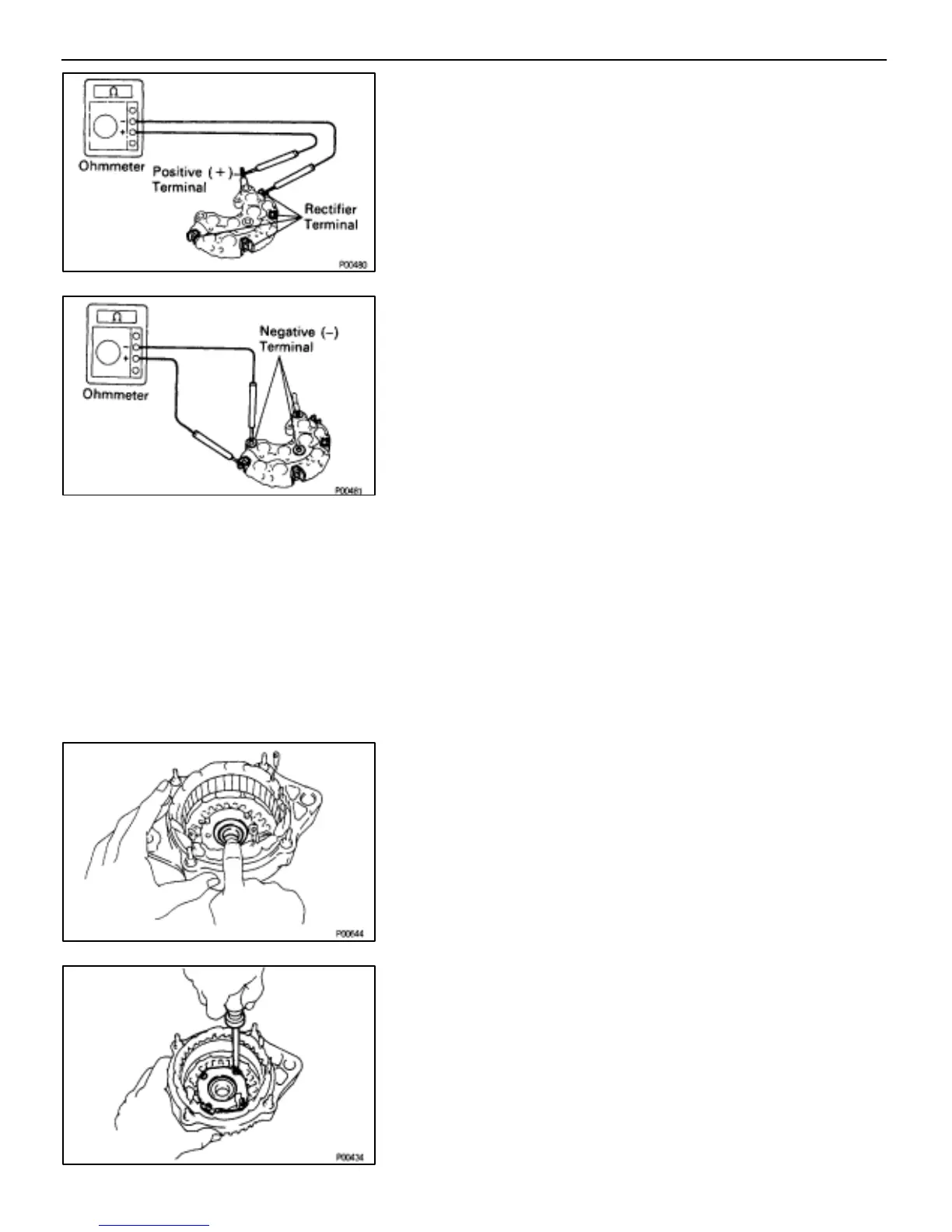

1. INSPECT POSITIVE RECTIFIER
(a) Using an ohmmeter, connect one tester probe to the positive
(+) terminal and the other to each rectifier terminal.
(b) Reverse the polarity of the tester probes and repeat step (a).
(c) Check that one shows continuity and the other shows no
continuity.
If continuity is not as specified, replace the rectifier holder.
2. INSPECT NEGATIVE RECTIFIER
(a) Using an ohmmeter, connect one tester probe to each
negative (–) terminal and the other to each rectifier terminal.
(b) Reverse the polarity of the tester probes and repeat step (a).
(c) Check that one shows continuity and the other shows no
continuity.
If continuity is not as specified, replace the rectifier holder.
Bearings
1. INSPECT FRONT BEARING
Check that the bearing is not rough or worn.
2. IF NECESSARY, REPLACE FRONT BEARING
(a) Remove the four screws, bearing retainer and bearing
–CHARGING SYSTEM GENERATOR
CH–15
