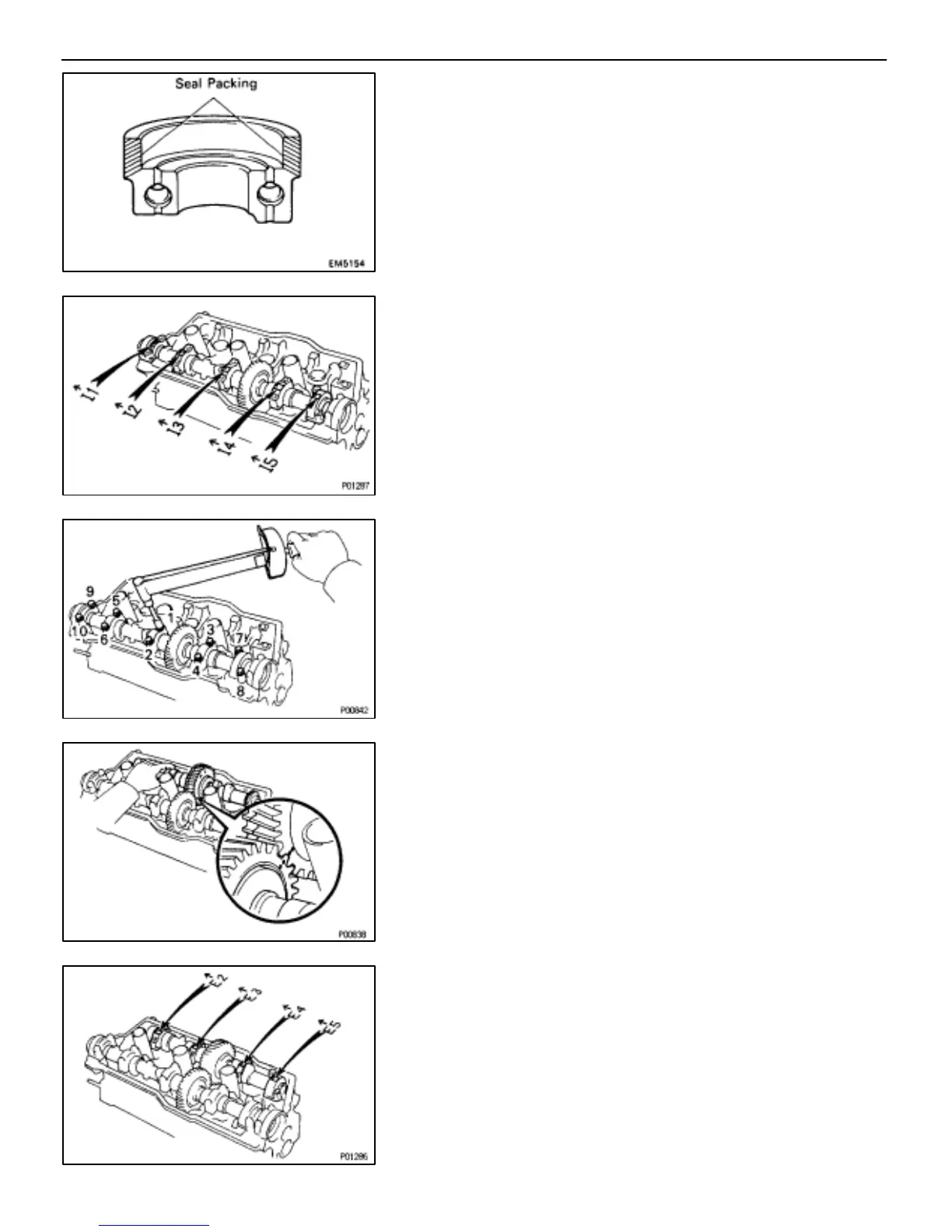

(c) Apply seal packing to the No.1 bearing cap as shown.
Seal packing:
Part No.08826–00080 or equivalent
(d) Install the five bearing caps in their proper locations.
(e) Apply a light coat of engine oil on the threads and under the
heads of the bearing cap bolts.
(f) Install and uniformly tighten the ten bearing cap bolts in
several passes, in the sequence shown.
Torque: 16 N⋅m (160 kgf⋅cm, 12 ft⋅lbf)
B. Install exhaust camshaft of RH cylinder head
(a) Apply MP grease to the thrust portion of the camshaft.
(b) Align the timing marks (two pointed marks) of the camshaft
drive and driven gears.
(c) Place the exhaust camshaft on the cylinder head.
(d) Install the four bearing caps in their proper locations.
EG–76
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
