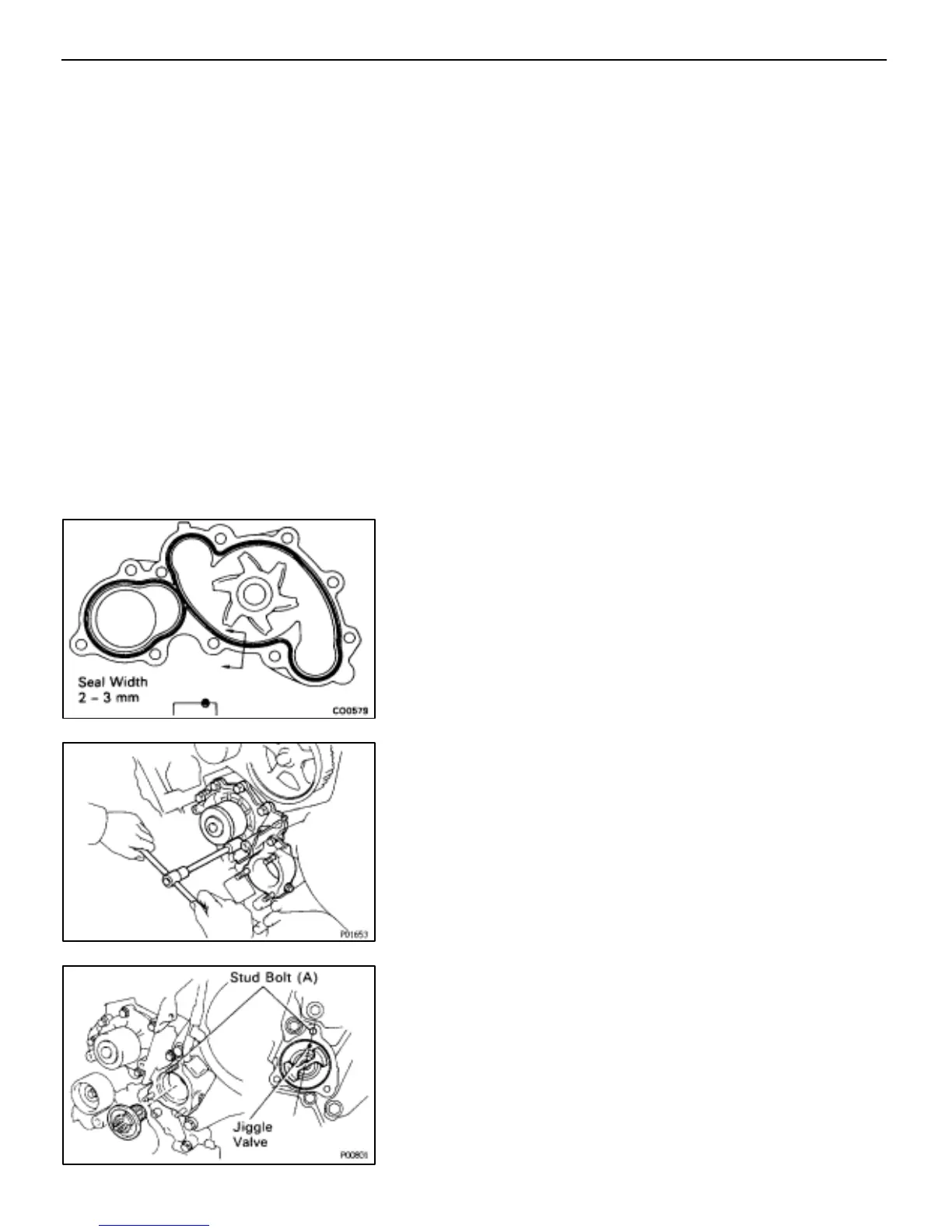

WATER PUMP INSTALLATION
EG09W–01
(See page EG–246)
1. INSTALL WATER PUMP
(a) Remove any old packing (FIPG) material and be careful not
to drop any oil on the contact surfaces of the water pump and
cylinder block.
•Using a razor blade and gasket scraper, remove all the old
packing (FIPG) material from the gasket surfaces and
sealing groove.
•Thoroughly clean all components to remove all the loose
material.
•Using a non–residue solvent, clean both sealing surfaces.
(b) Apply seal packing to the water pump groove.
Seal packing:
Part No.08826–00100 or equivalent
•Install a nozzle that has been cut to a 2–3 mm (0.08–0.12
in.) opening.
HINT: Avoid applying an excessive amount to the surface.
•Parts must be assembled within 5 minutes of application.
Otherwise the material must be removed and reapplied.
•Immediately remove nozzle from the tube and reinstall cap.
(c) Install the water pump with the seven bolts.
Torque: 20 N⋅m (200 kgf⋅cm, 14 ft⋅lbf)
2. INSTALL WATER INLET AND THERMOSTAT
(a) Install a new gasket to the thermostat.
(b) Align the jiggle valve of the thermostat with stud bolt (A), and
inset the thermostat in the water pump.
