(c) Install the cord clip and four nuts.

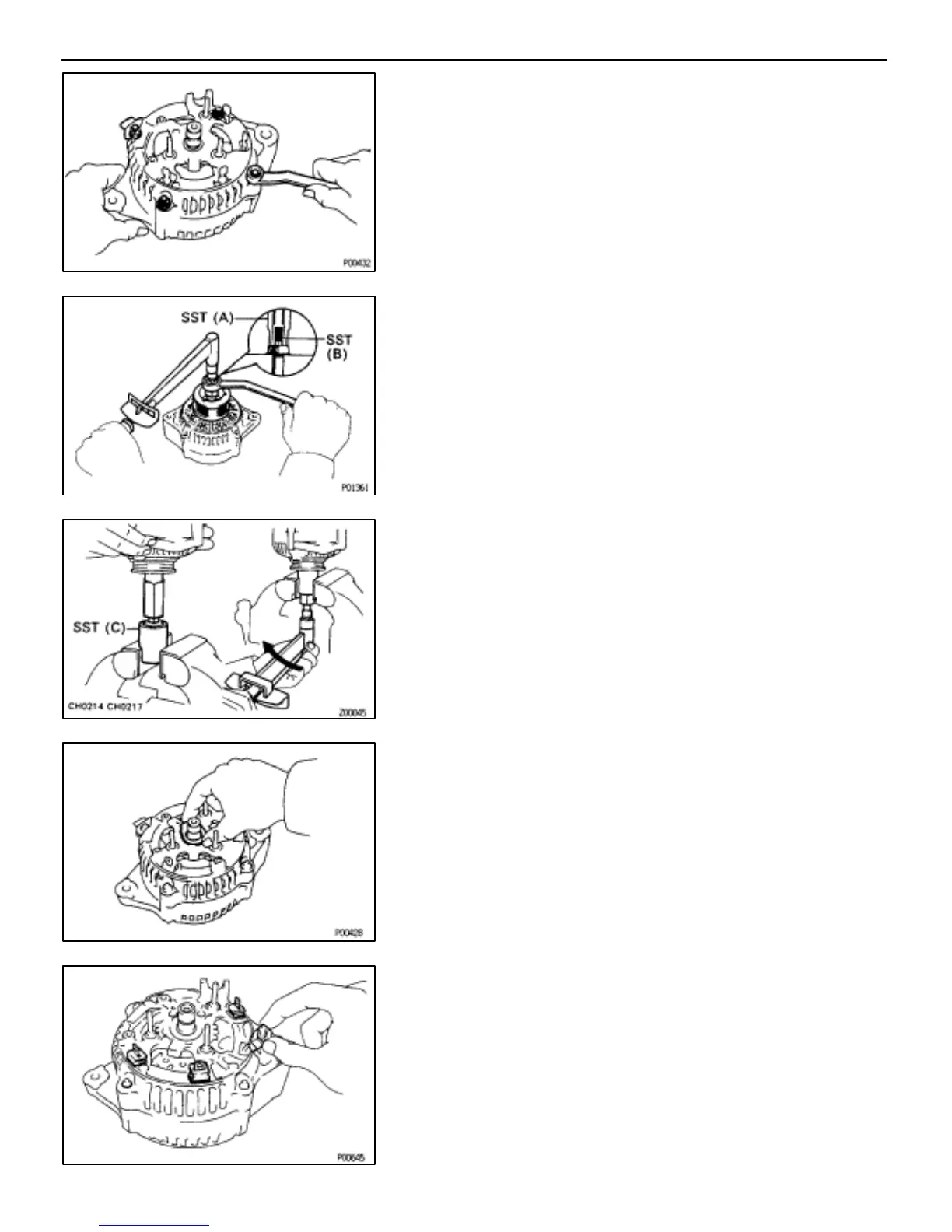

3. INSTALL PULLEY
(a) Install the pulley to the rotor shaft by tightening the pulley nut
by hand.
(b) Hold SST (A) with a torque wrench, and tighten SST (b)
clockwise to the specified torque.
SST 09820–63010
Torque: 39 N⋅m (400 kgf⋅cm, 29 ft⋅lbf)
(c) Check that SST (A) is secured to the pulley shaft.
(d) As shown in the illustration, mount SST (C) in a vise, and
install the generator to SST (C).
(e) To torque the pulley nut, turn SST (A) in the direction shown
in the illustration.
Torque: 110 N⋅m (1,125 kgf⋅cm, 81 ft⋅lbf)
(f) Remove the generator from SST (C).
(g) Turn SST (B) and remove SST (A and B).
4. INSTALL RECTIFIER HOLDER
(a) Place the seal plate on the rectifier end frame.
(b) Install the four rubber insulators on the lead wires.
CH–18
–CHARGING SYSTEM GENERATOR
