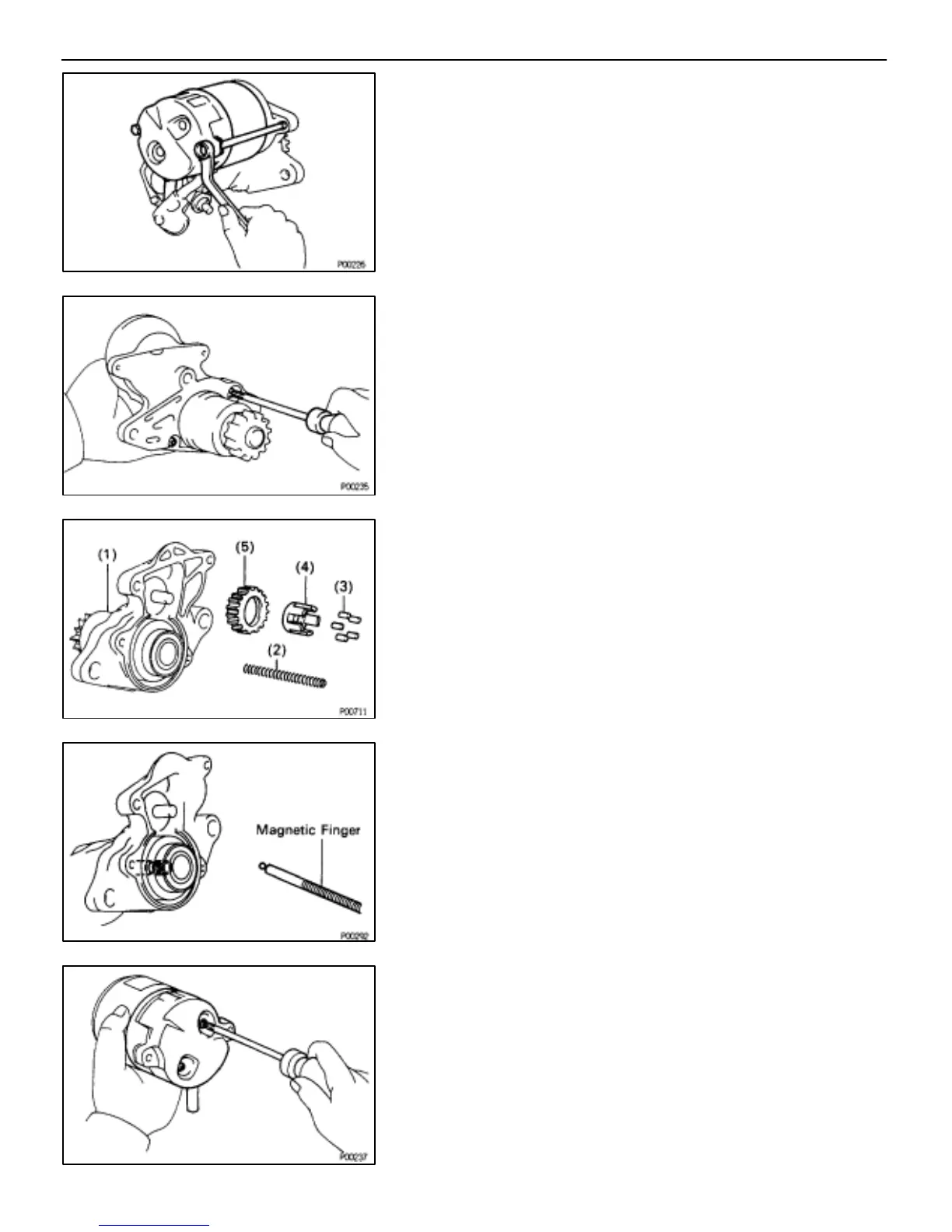

(b) Remove the two through bolts.
(c) Pull out the field frame with the armature from the magnetic
switch assembly.
(d) Remove the O–ring.
2. REMOVE STARTER HOUSING, CLUTCH ASSEMBLY
AND GEAR
(a) Remove the two screws.
(b) Remove the following parts from the magnetic switch
assembly:
(1) Starter housing and clutch assembly
(2) Return spring
(3) Roller
(4) Retainer
(5) Idler gear
3. REMOVE STEEL BALL
Using a magnetic finger, remove the steel ball from the clutch
shaft hole.
4. REMOVE BRUSH HOLDER
(a) Remove the two screws and end cover from the field frame.
(b) Remove the O–ring from the field frame.
–STARTING SYSTEM STARTER
ST–7
