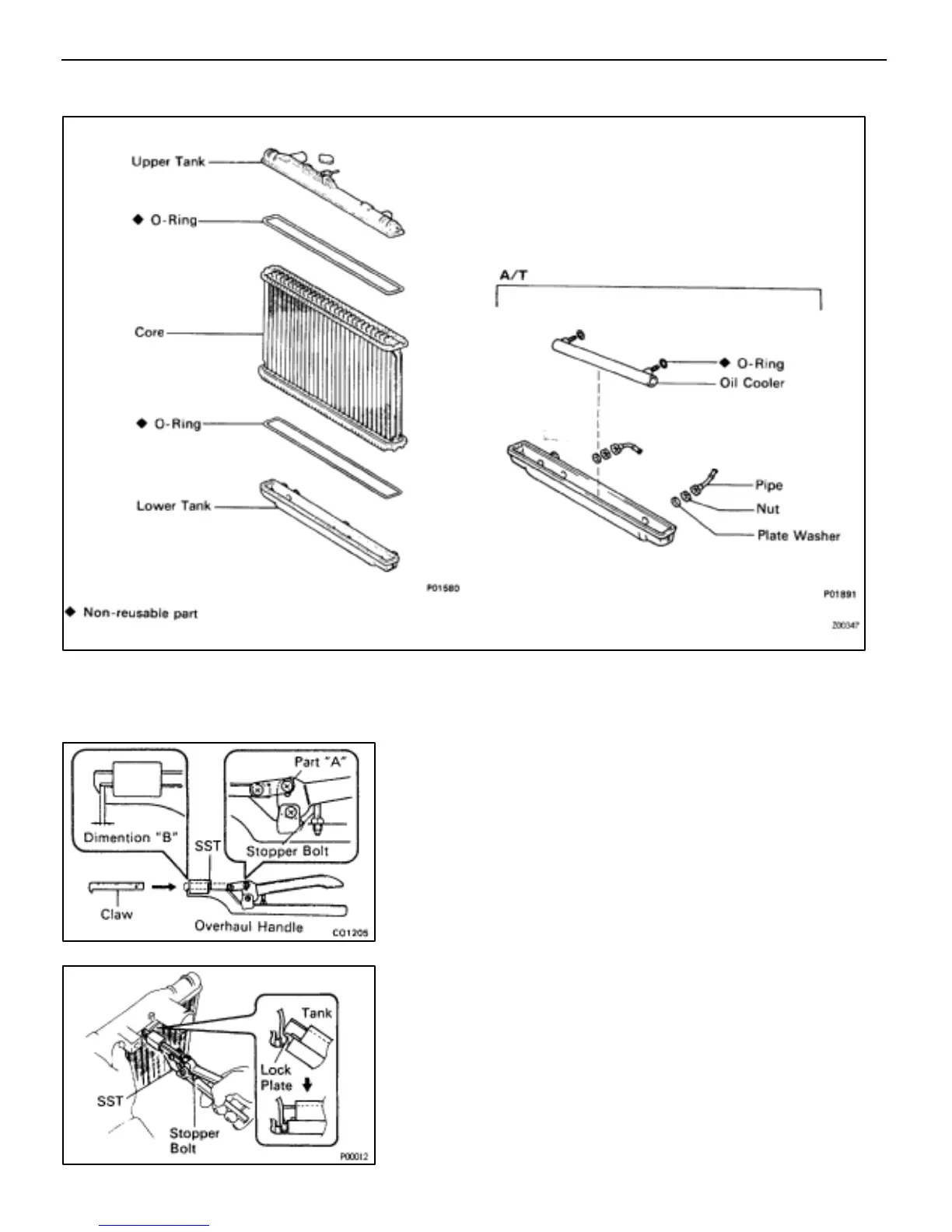

COMPONENTS
EG0A3–01
RADIATOR DISASSEMBLY
EG0A4–01
1. ASSEMBLY OF SST
SST 09230–01010
(a) Install the claw to the overhaul handle, inserting it in the hole
in part ”A” as shown in the diagram.
(b) While gripping the handle, adjust the stopper bolt so that
dimension ”B” shown in the diagram is 0.2–0.5 mm
(0.008–0.020 in.).
NOTICE: If this adjustment is not performed, the claw
may be damaged.
2. UNCAULK LOCK PLATES
Using SST to release the caulking, squeeze the handle until
stopped by the stopper bolt.
SST 09230–01010
–ENGINE TROUBLESHOOTING COOLING SYSTEM
EG–257
