FUEL PUMP INSTALLATION
EG0GK–01
(See page EG–174)

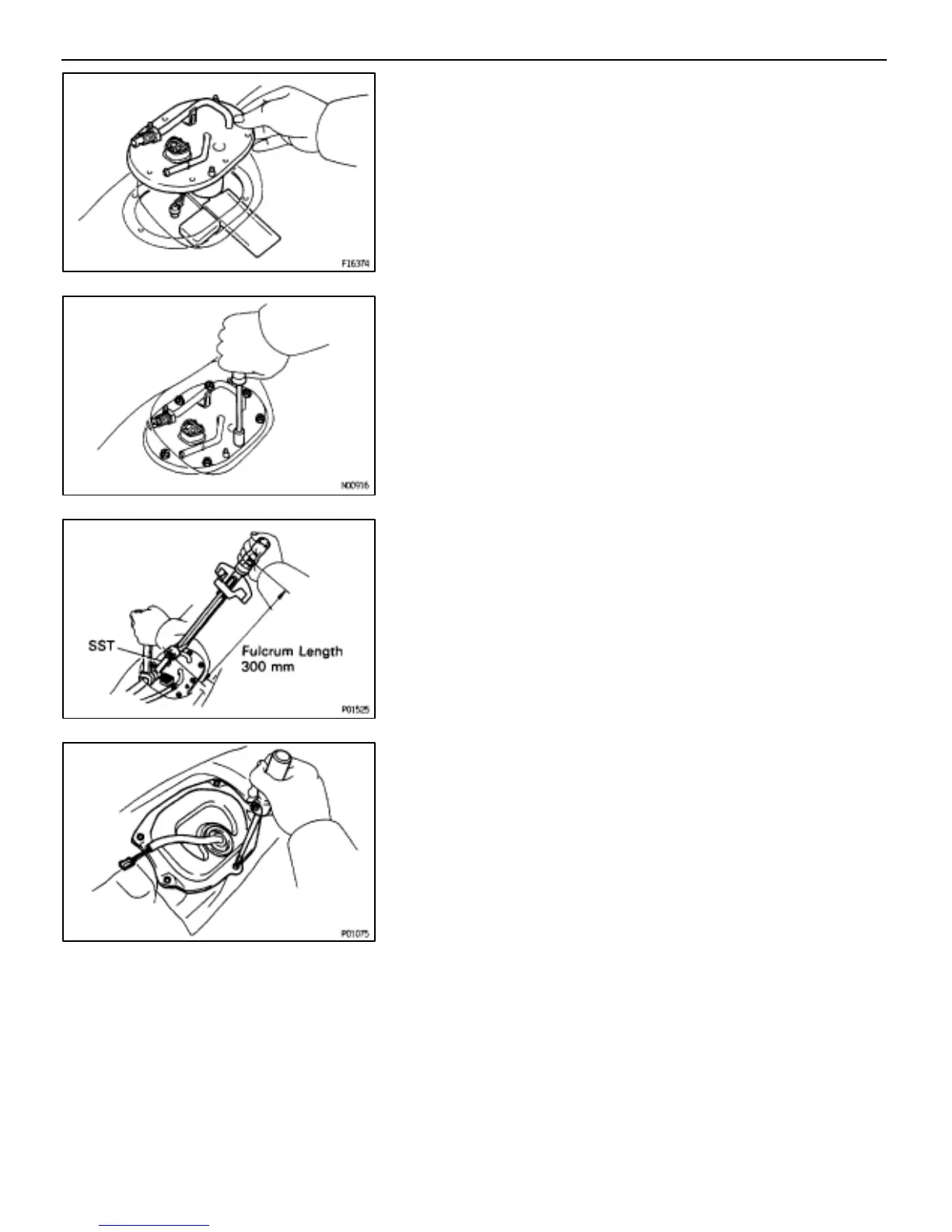

1. INSTALL FUEL PUMP BRACKET ASSEMBLY TO FUEL
TANK
(a) Install a new gasket to the pump bracket.
(b) Insert the pump bracket assembly into the fuel tank.
(c) Install the pump bracket with the eight screws.
Torque: 3.9 N⋅m (40 kgf⋅cm, 35 in.⋅lbf)
2. CONNECT FUEL PIPE AND HOSE TO FUEL PUMP
BRACKET
(a) Using SST, connect the outlet pipe to the pump bracket.
SST 09631–22020
Torque: 30 N⋅m (310 kgf⋅cm, 22 ft⋅lbf)
(b) Connect the return hoses to the pump bracket.
3. CHECK FOR FUEL LEAKAGE (See page EG–160)
4. CONNECT FUEL PUMP LEAD WIRE
5. INSTALL FLOOR SERVICE HOLE COVER
(a) Install the service hole cover with the three screws.
(b) Connect the fuel pump (with fuel sender gauge) connector.
6. INSTALL REAR SEAT CUSHION
7. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
EG–178
–ENGINE TROUBLESHOOTING SFI SYSTEM
