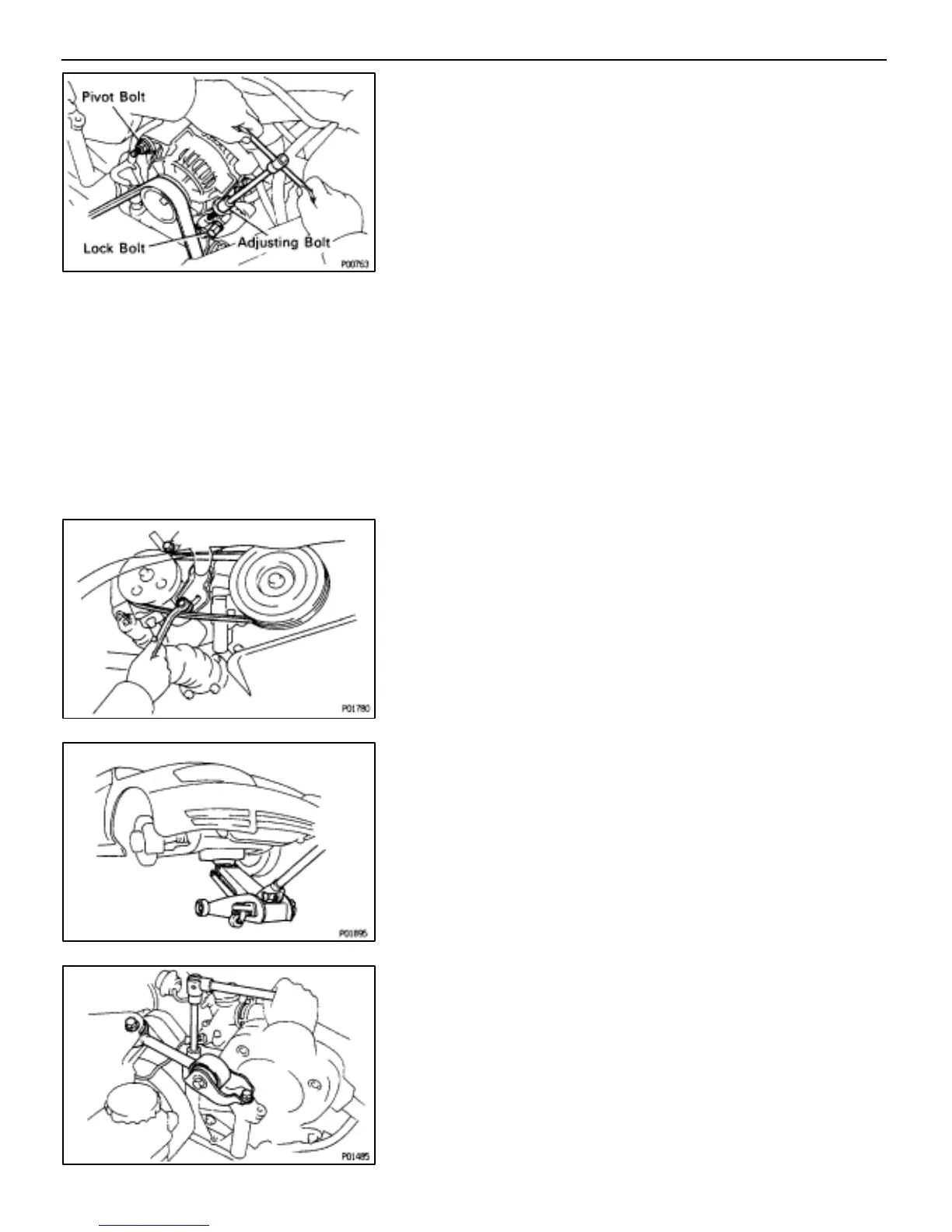

6. REMOVE GENERATOR DRIVE BELT
Loosen the pivot bolt and adjusting lock bolt, and remove the
drive belt.
7. REMOVE RH FRONT WHEEL
8. REMOVE RH FENDER APRON SEAL
9. REMOVE PS DRIVE BELT
Loosen the bolts, and remove the drive belt.
10. SLIGHTLY JACK UP ENGINE
Raise the engine enough to remove the weight from the en-
gine mounting on the right side.
11. REMOVE ENGINE MOVING CONTROL ROD
Remove the three bolts and control rod.
12. DISCONNECT CONNECTOR FROM GROUND WIRE ON
RH FENDER APRON
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–31
