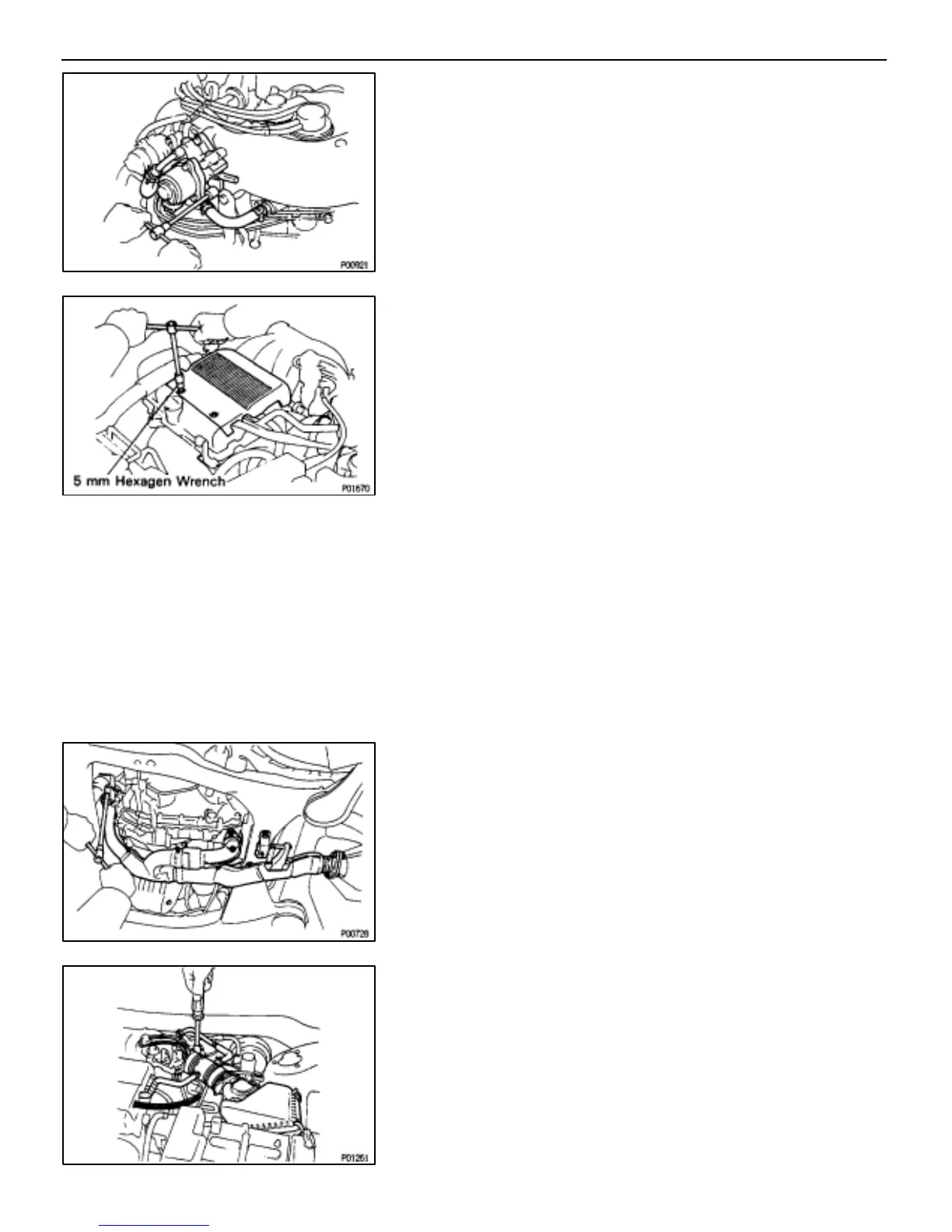

34. INSTALL IAC VALVE
(a) Install a new gasket with the two bolts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
(b) Connect the IAC valve connector.
(c) Connect the following connectors:
(1) PS idle–up air hose
(2) Water by–pass hoses
(3) No.5 air hose
35. INSTALL V–BANK COVER
Using a 5 mm hexagon wrench, install the V–bank cover with
the two nuts.
36. INSTALL GENERATOR
(See CH section)
37. CONNECT FRONT EXHAUST PIPE
(a) Place three new gaskets on the front pipe.
(b) Install the front pipe with the two bolts and six nuts.
Torque the nut.
To manifold
Torque: 62 N⋅m (630 kgf⋅cm, 46 ft⋅lbf)
To three–way catalytic converter
Torque: 43 N⋅m (440 kgf⋅cm, 32 ft⋅lbf)
(c) Connect the bracket with the two bolts.
38. INSTALL AIR CLEANER CAP, VOLUME AIR FLOW
METER AND AIR CLEANER HOSE
(a) Connect the air cleaner hose, and install the air cleaner cap
and volume air flow meter with the four clips.
(b) Tighten the air cleaner hose clamp bolt.
(c) Connect the air hoses.
(d) Connect the coil cord clamp.
(e) Connect the volume air flow meter connector.
EG–86
