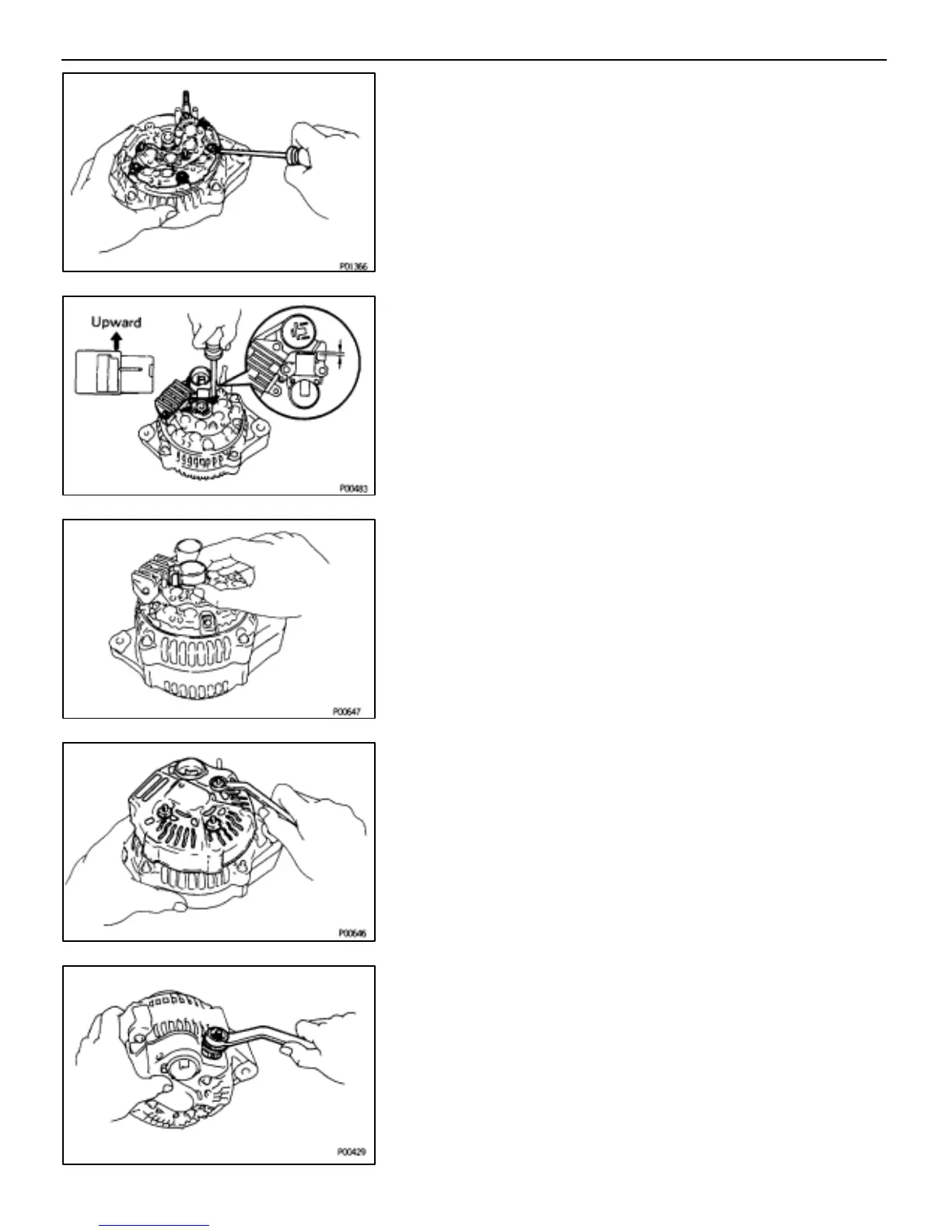

(c) Install the rectifier holder with the four screws.
5. INSTALL IC REGULATOR AND BRUSH HOLDER
(a) Place the IC regulator and brush holder on the rectifier end
frame.
NOTICE: Be careful of the holder installation direction.
(b) Install the five screws until there is a clearance of approx. 1
mm (0.04 in.) between the brush holder and connector.
(c) Place the brush holder cover on the brush holder.
6. INSTALL REAR END COVER
(a) Install the end cover with the three nuts.
(b) Install the terminal insulator with the nut.
–CHARGING SYSTEM GENERATOR
CH–19
