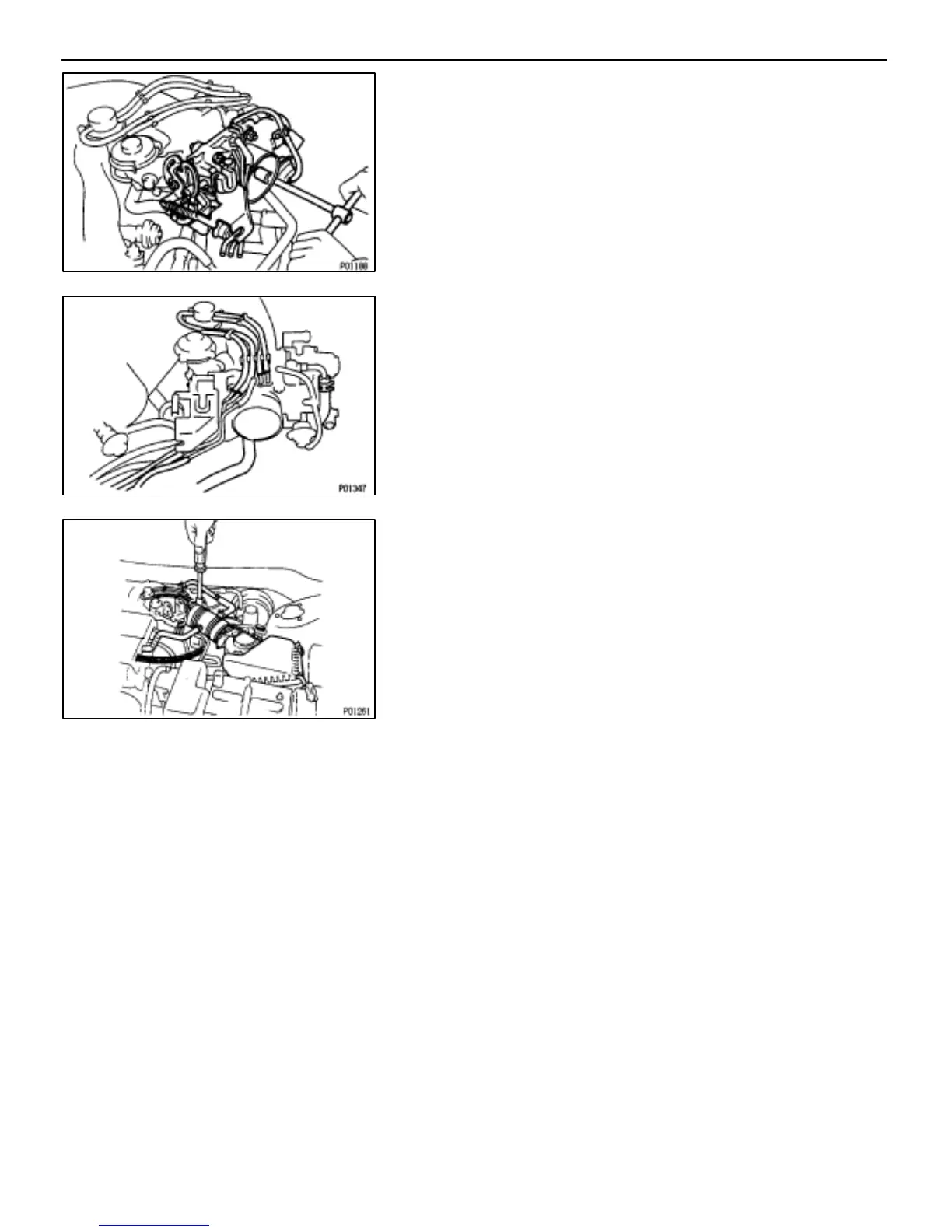

THROTTLE BODY INSTALLATION
EG0H7–01
(See page EG–206)
1. INSTALL THROTTLE BODY
Install a new gasket and the throttle body with the two bolts
and two nuts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
2. CONNECT HOSES TO THROTTLE BODY
(a) Water by–pass hose
(b) Emission control vacuum hoses
3. CONNECT THROTTLE POSITION SENSOR CONNECTOR
4. INSTALL AIR CLEANER CAP, VOLUME AIR FLOW
METER AND AIR CLEANER HOSE
(a) Connect the air cleaner hose, and install the air cleaner cap
and volume air flow meter with the four clips.
(b) Tighten the air cleaner hose clamp bolt.
(c) Connect the air hoses.
(d) Connect the coil cord clamp.
(e) Connect the volume air flow meter connector.
5. (A/T)
CONNECT THROTTLE CABLE, AND ADJUST IT
6. CONNECT ACCELERATOR CABLE, AND ADJUST IT
7. FILL WITH ENGINE COOLANT
8. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–209
