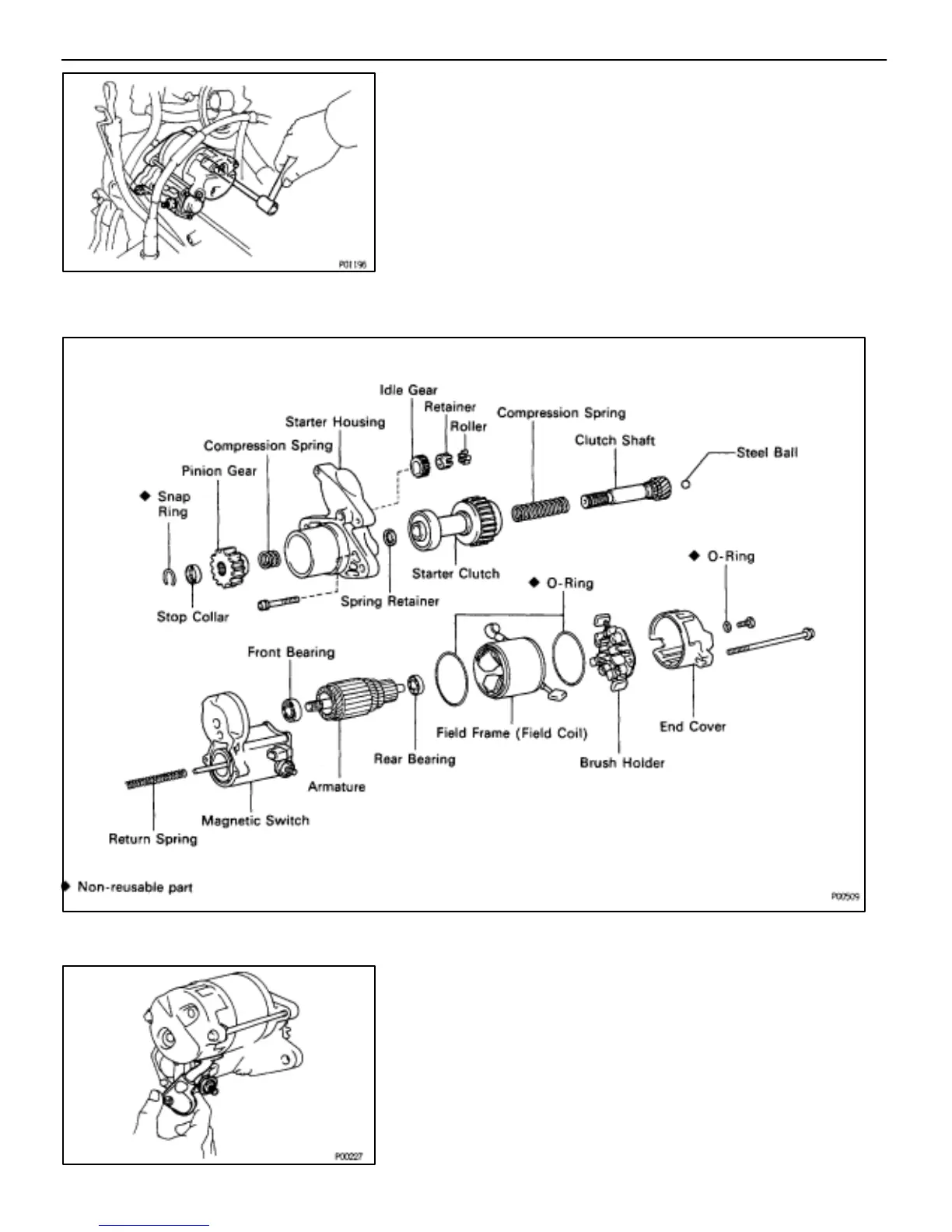

4. REMOVE STARTER

(a) Disconnect the starter connector.

(b) Remove the nut, and disconnect the starter wire.

COMPONENTS

ST01D–01

STARTER DISASSEMBLY

ST01F–01

1. REMOVE FIELD FRAME AND ARMATURE

(a) Remove the nut, and disconnect the lead wire from the

magnetic switch terminal.

ST–6

–STARTING SYSTEM STARTER
