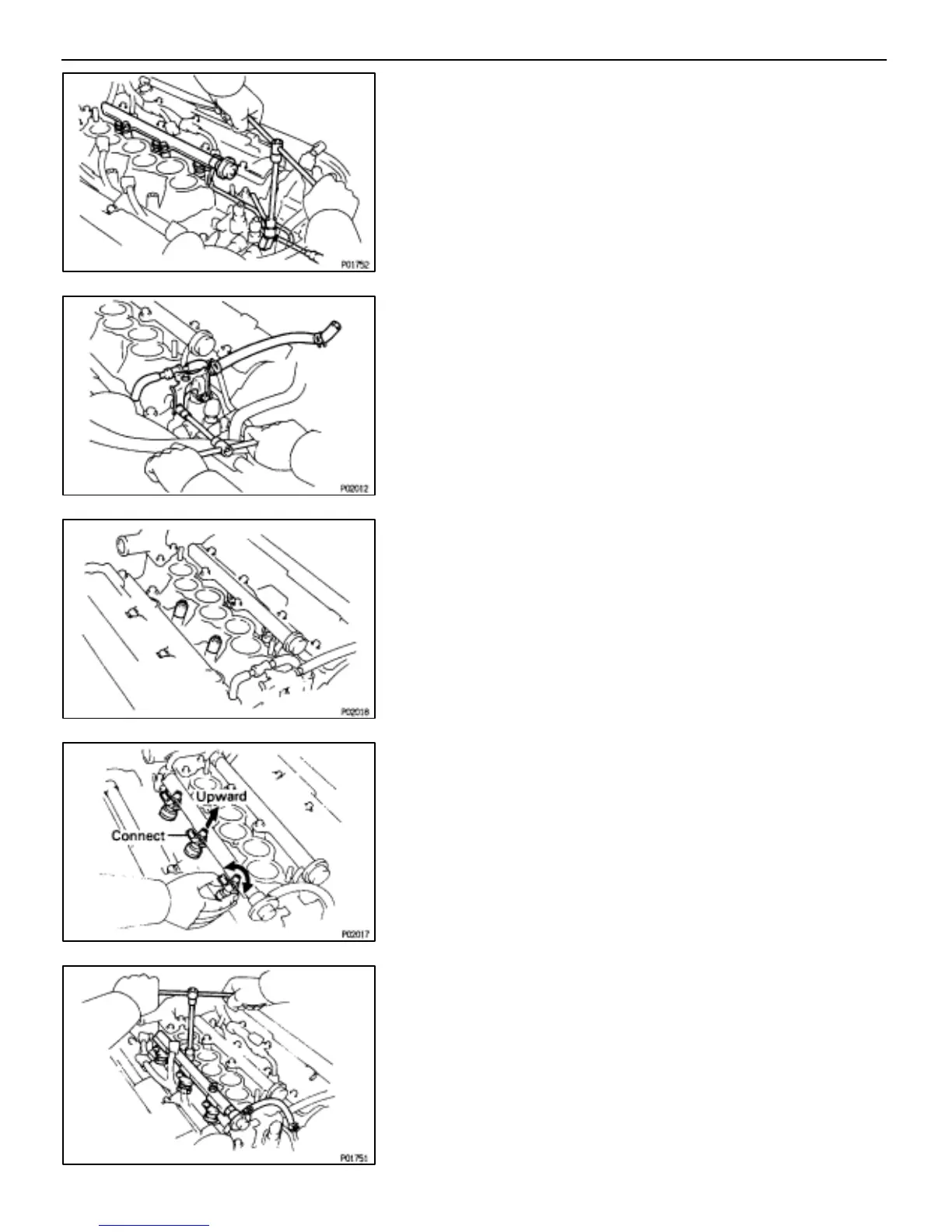

(e) Install the three bolts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
18. INSTALL AIR PIPE
(a) Install the air pipe with the two bolts.
Torque: 8.3 N⋅m (85 kgf⋅cm, 73 in.⋅lbf)
19. INSTALL LH DELIVERY PIPE AND INJECTORS
(a) Place the two spacers in position on the intake manifold.
NOTICE: Clean the injector holes before installing the in-
jectors into the intake manifold.
(b) Place the three injectors together with the LH delivery pipe in
position on the intake manifold.
(c) Check that the injectors rotate smoothly.
HINT: If injectors do not rotate smoothly, the probable cause
is incorrect installation of O–rings. Replace the O–rings.
(d) Position injector connector upward.
(e) Install the two bolts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
(f) Connect the fuel return hose to the No.1 fuel pipe (fuel inlet
hose).
EG–82
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
