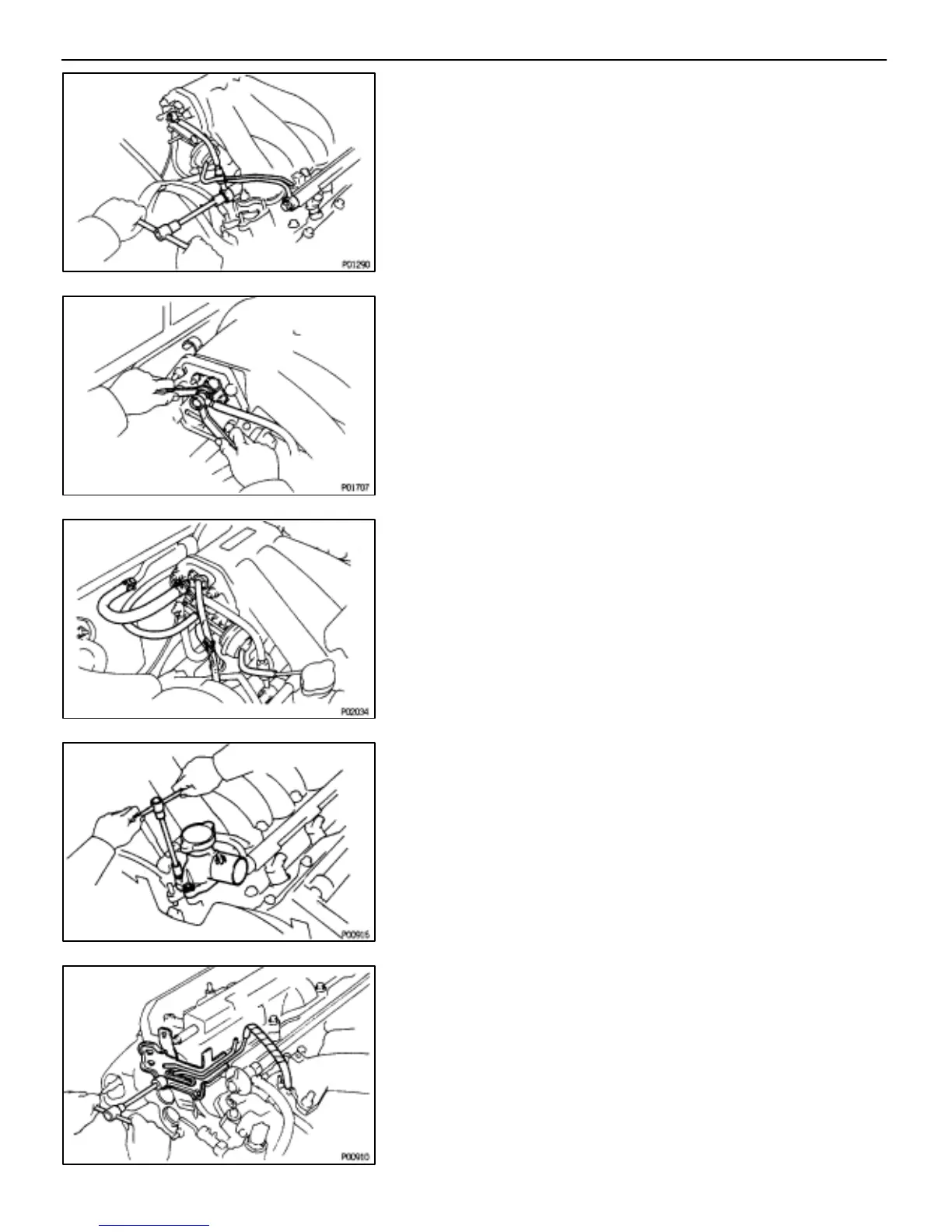

23. INSTALL NO.2 FUEL PIPE
(a) Install the No.2 fuel pipe with four new gaskets and the union
boots.
Torque: 34 N⋅m (350 kgf⋅cm, 25 ft⋅lbf)
(b) Connect the IACV vacuum hose.
(c) Connect the No.2 fuel pipe with two new gaskets and the
union bolt.
Torque: 15 N⋅m (150 kgf⋅cm, 11 ft⋅lbf)
24. CONNECT COLD START INJECTOR CONNECTOR
25. CONNECT HOSES
(a) Brake booster vacuum hose
(b) PS air hose
(c) PCV hose
(d) EGR water by–pass hose
26. INSTALL WATER OUTLET
(a) Install a new gasket and the water outlet with the three bolts.
Torque: 8.3 N⋅m (85 kgf⋅cm, 73 ft⋅lbf)
(b) Connect the engine coolant reservoir hose.
(c) Connect the radiator upper hose.
27. INSTALL CYLINDER HEAD REAR PLATE
(a) Install the rear plate with the bolt and nut.
(b) Connect the vacuum hose to the air intake chamber.
(c) Connect the two vacuum hoses to the vacuum tank.
EG–84
