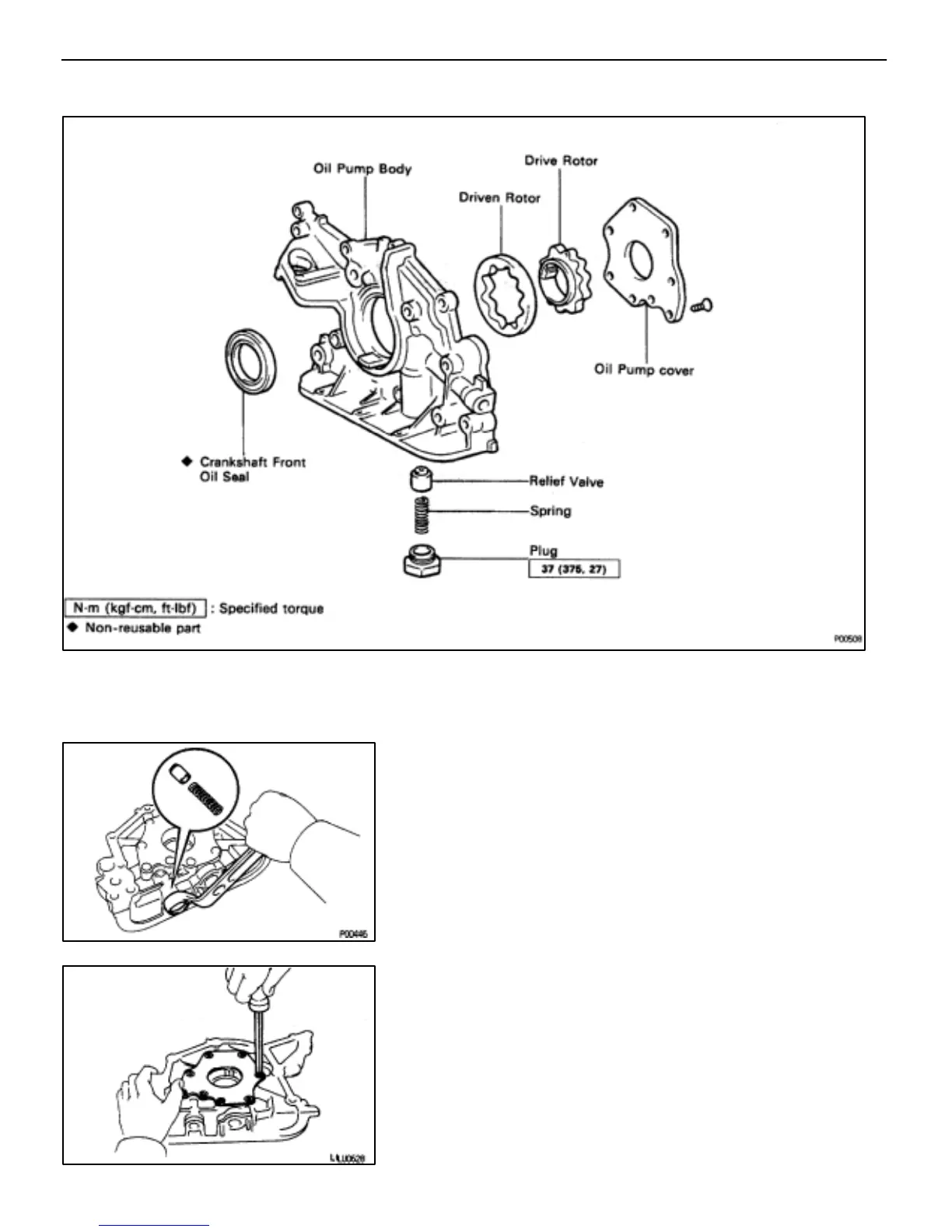

COMPONENTS

EG099–01

OIL PUMP DISASSEMBLY

EG09A–01

1. REMOVE RELIEF VALVE

Remove the plug, spring and relief valve.

2. REMOVE DRIVE AND DRIVEN ROTORS

Remove the eight screws, pump body cover, the drive and

driven rotors.
